Description

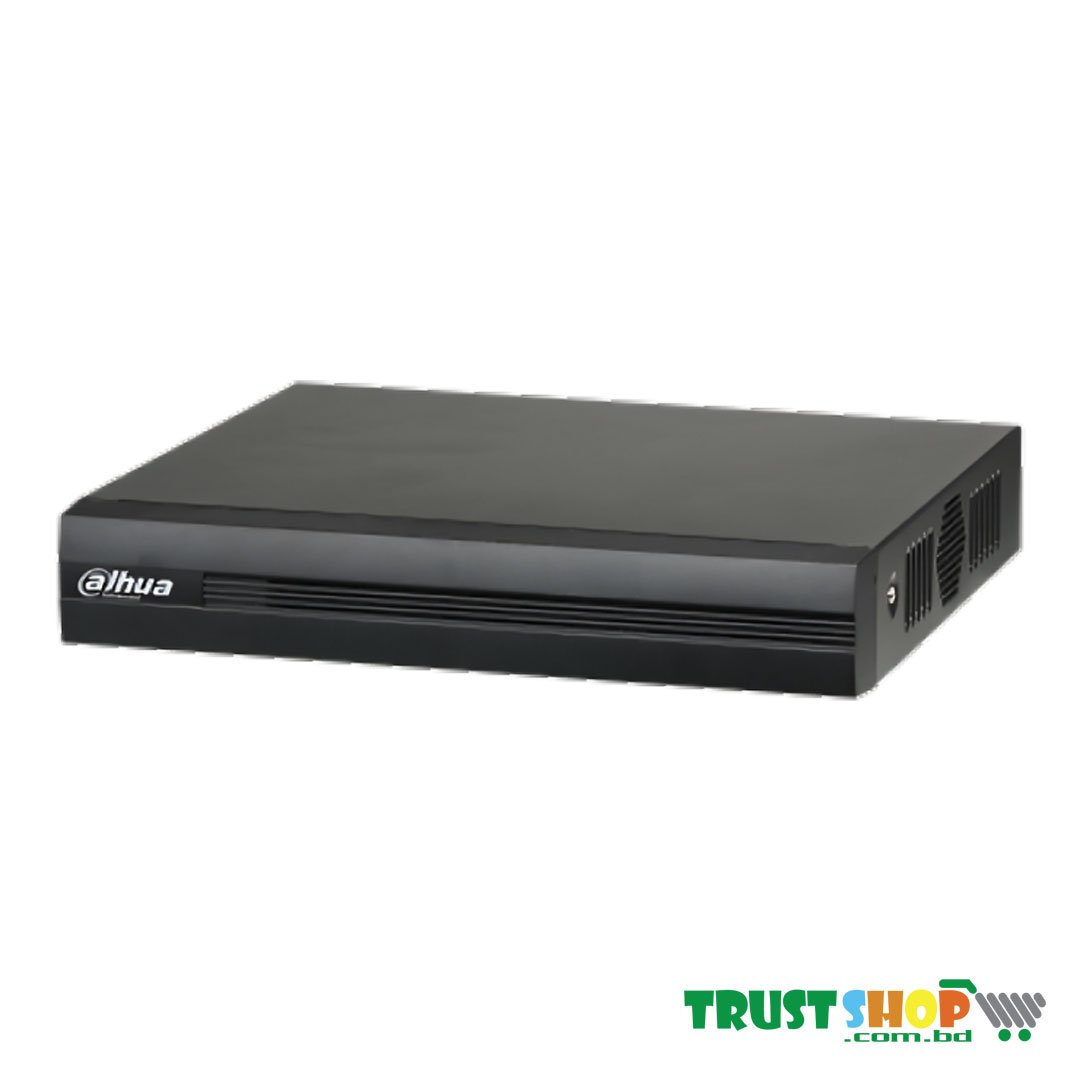

Specification of the Dahua XVR1B16H-I 16 Channel Cooper DVR
| System | ||
| Main Processor | Embedded Processor | |
| Operating System | Embedded LINUX | |
| Audio and Video | ||
| IP Camera Input | 9+2 each channel up to 12MP | |
| Two-Way Talk | Reuse audio in/out, RCA | |
| Display | ||
| Interface | 1 HDMI, 1 VGA | |
| Resolution | 1920×1080, 1280×1024, 1280×720 | |
| Multi-Screen Display | When IP extension mode not enabled: 4CH: 1/4 When IP extension mode enabled: 4CH: 1/4/6 |
|
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
| Recording | ||
| Compression | H.265+/H.265/H.264+/H.264 | |
| Resolution | 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF | |
| Record Rate | Main Stream: 4CH: the 1st channel 5M-N (1~10 fps) Sub stream: CIF/QCIF (1~15fps) |
|
| Bit Rate | 32Kbps ~ 6144Kbps Per channel | |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering, Alarm, Stop |
|
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, post-record: 10 ~ 300 sec | |
| Video Detection And Alarm | ||
| Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
|
| Playback And Backup | ||
| Sync Playback | 4CH: 1/4 | |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
|
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
|
| Backup Mode | USB Device/Network | |
| Third-party support | ||
| Third Party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, and CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, and Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
|
| Network | ||
| Interface | 1 RJ-45 Port (100M) | |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
| Maximum User Access | 128 users | |
| Smart Phone | iPhone, iPad, and Android | |
| Interoperability | ONVIF 16.12, CGI Conformant | |
| Storage | ||
| Internal HDD | 1 SATA Port, up to 6TB capacity | |
| Auxiliary Interface | ||
| USB | 2x USB 2.0 | |
| Power | ||
| Power Supply | DC12V/1.5A | |
| Power Consumption | <10W | |
| Component Environment | ||
| Operational Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH | |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | |
| Construction | ||
| Dimensions | 197mm×192mm×41mm (7.8“×7.6”×1.6“) | |
| Net Weight | 0.54kg | |
Features of the Dahua XVR1B16H-I 16 Channel Cooper DVR
The Dahua XVR1B16H-I 16 Channel Cooper DVR has a maximum of 24 channel IP camera inputs, each channel up to 6 MP, and a maximum incoming bandwidth of 128 Mbps. It’s supports 4M-N/1080P video resolution. The DVR is designed for easy integration into a variety of surveillance systems and has a 1U form factor for space-saving installation. It features a built-in coaxial control data transmission interface, which allows it to control the zoom and focus of a Dahua PTZ camera through the same coaxial cable used to transmit video.
It also has trigger events: recording, PTZ, touring, video pushing, email, FTP, snapshot, buzzer, and screen tips with video detection and motion detection, MD Zones: 396 (22–18), video loss, tampering, and diagnosis. The DVR supports a range of network protocols, including HTTP, HTTPS, TCP/IP, IPv4, IPv6, and more. It also features mobile phone access via iPhone, iPad, and Android devices, ensuring users stay connected on the go.
What is the price of the Dahua XVR1B16H-I 16 Channel Cooper DVR in Bangladesh in 2023?
The latest price of the Dahua XVR1B16H-I 16 Channel Cooper DVR is 11900 BDT. You can buy the Dahua 16 channel DVR from us at the best price. You can either buy it through our website or directly visit our office.
