Specification of the HIKVISION DS-7104HQHI-K1 4-ch 1080p DVR
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | Hikvision DS-7104HQHI-K1 |
| Type | Turbo HD DVR |
| Video Input Channel (BNC) | 4-channel, BNC Interface (1.0Vp-p, 75 omega) |
| Video Compression/Format | H.265/ H.265+/ H.264/ H.264+ |
| Video Output (VGA) | 1-channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) | 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. | 4MP, 3MP, 1080p, 720p, VGA, WD1, 4CIF, CIF |
| Max. Video Recording Res. | 1080p |
| Video Bit Rate | 32 Kbps-6 Mbps |
| IP Video Input | 1-channel (up to 5-ch) |
| Analog & HD-TVI Video Input | 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
| Audio Input Channel (RCA) | 1-channel, RCA (2.0 Vp-p, 1K omega) |
| Audio Compression | G.711u |
| Audio Output Channel | 1-channel, RCA (Linear, 1K omega) |
| Two way Audio | 1-channel, RCA (2.0 Vp-p, 1K omega) |
| Audio Bit Rate | 64kbps |
| Frame Rate | Main stream: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF 15fps, 1080p/720p 15fps; VGA/WD1/4CIF/CIF 25fps (P)/30fps (N), 720p/VGA/WD1/4CIF/CIF 25fps (P)/30fps (N) |
| Stream Type | Video/Video & Audio |
| Dual Stream Support | Yes |
| Live View / Playback Resolution | 3 MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF |
| Synchronous Playback | 4-channel |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB,TB) | Up to 6TB capacity for each disk |
| Max. Storage Support | 6TB |
| eSATA | No |
| Network Interface (RJ45) | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Serial Interface | No |
| USB Port | 2 x USB2.0 |
| Remote Connections | 128 |
| CVBS Input | Yes |
| Incoming Bandwidth | 24 Mbps |
| Outgoing Bandwidth | 72 Mbps |
| Chassis | Mini 1U chassis |
| Power Supply | 12 VDC, 1.5 A |
| Approx. Power Consumption | <-8 W |
| Dimensions | 200 x 200 x 45mm |
| Weight (Kg) | 1Kg |
| XVR Supported | Yes |
| Smart Phone Supported | Yes |

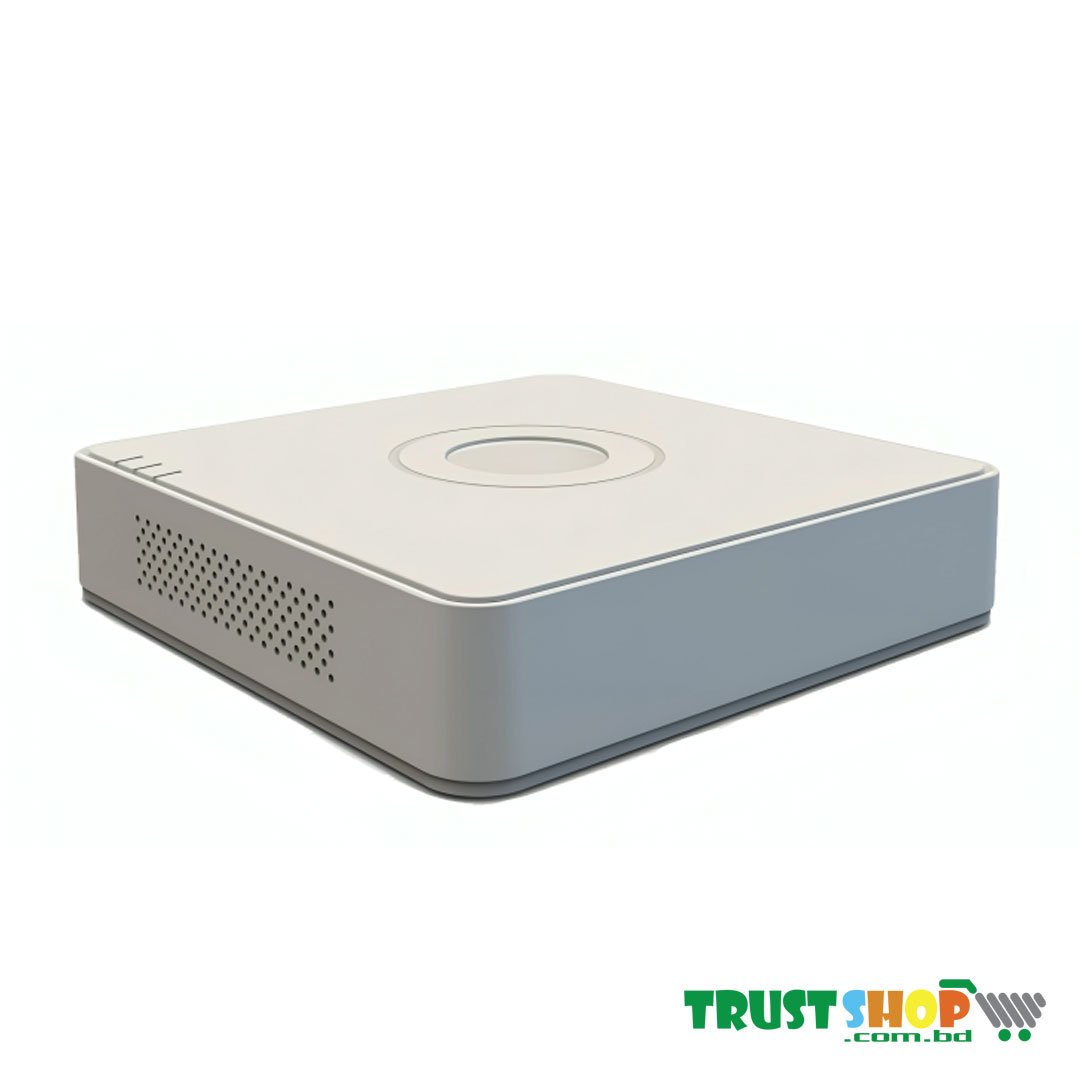

HIKVISION DS-7104HQHI-K1 4-ch 1080p DVR
The HIKVISION DS-7104HQHI-K1 4-ch 1080p DVR is the model number for this product. 1 HDD tiny size and 4 channels DVR H.265 pro+ compression technology that is both efficient and effective Up to 1080p @ 15 fps encoding capability HDTVI/AHD/CVI/CVBS/IP/HDTVI/AHD/CVI/CVBS You can connect up to six network cameras. techlink.com.bd offers the cheapest pricing on Hikvision products of all kinds. its product is 01 Year warranty.
What is the price of the HIKVISION DS-7104HQHI-K1 4-ch 1080p DVR in Bangladesh ?
The latest price of the HIKVISION DS-7104HQHI-K1 4-ch 1080p DVR NVR Price in Bangladesh is 4,650 BDT. You can buy a HIKVISION DS-7104HQHI-K1 4-ch 1080p DVR from us. To buy this product, you can either buy it through our website or come directly to our office.
