Description

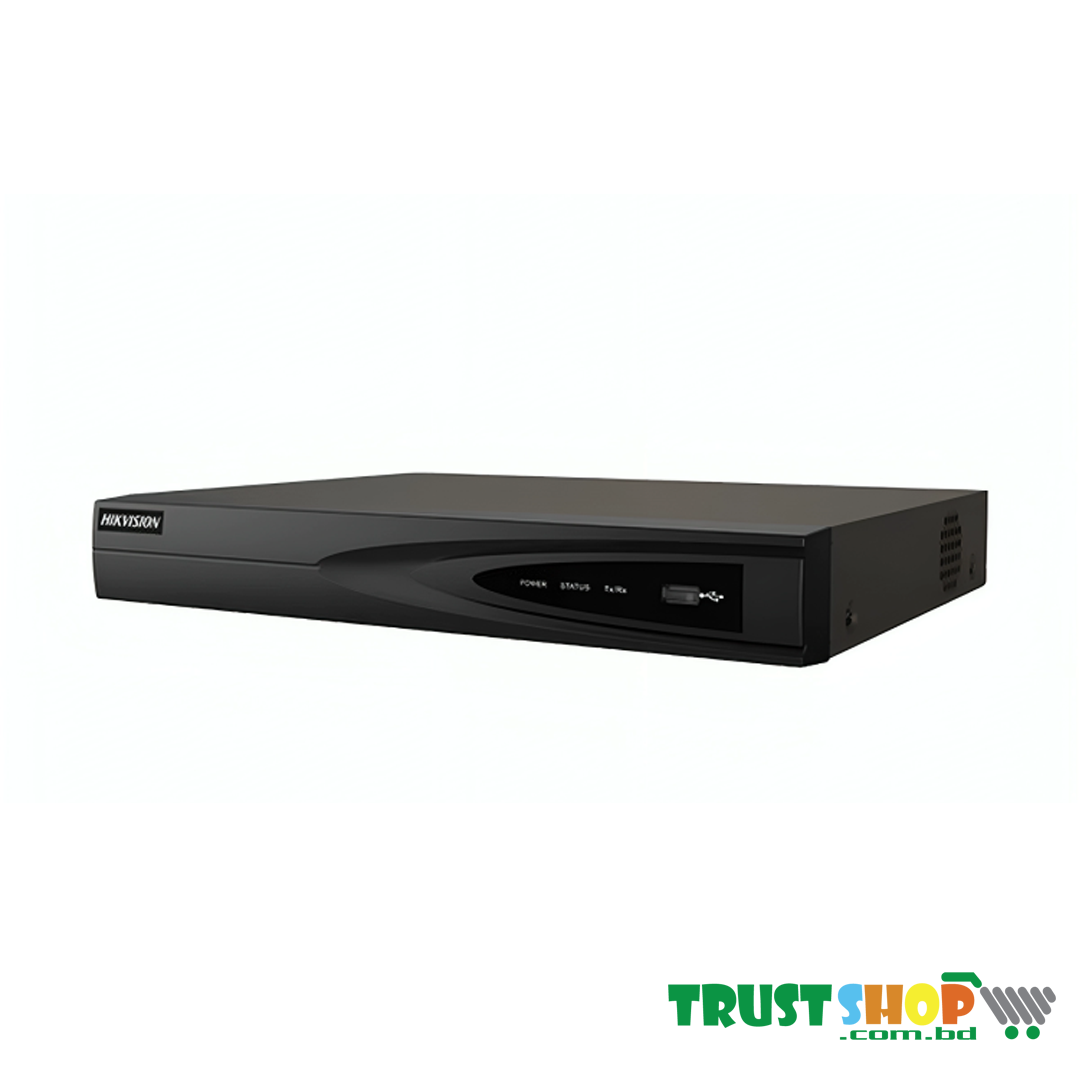

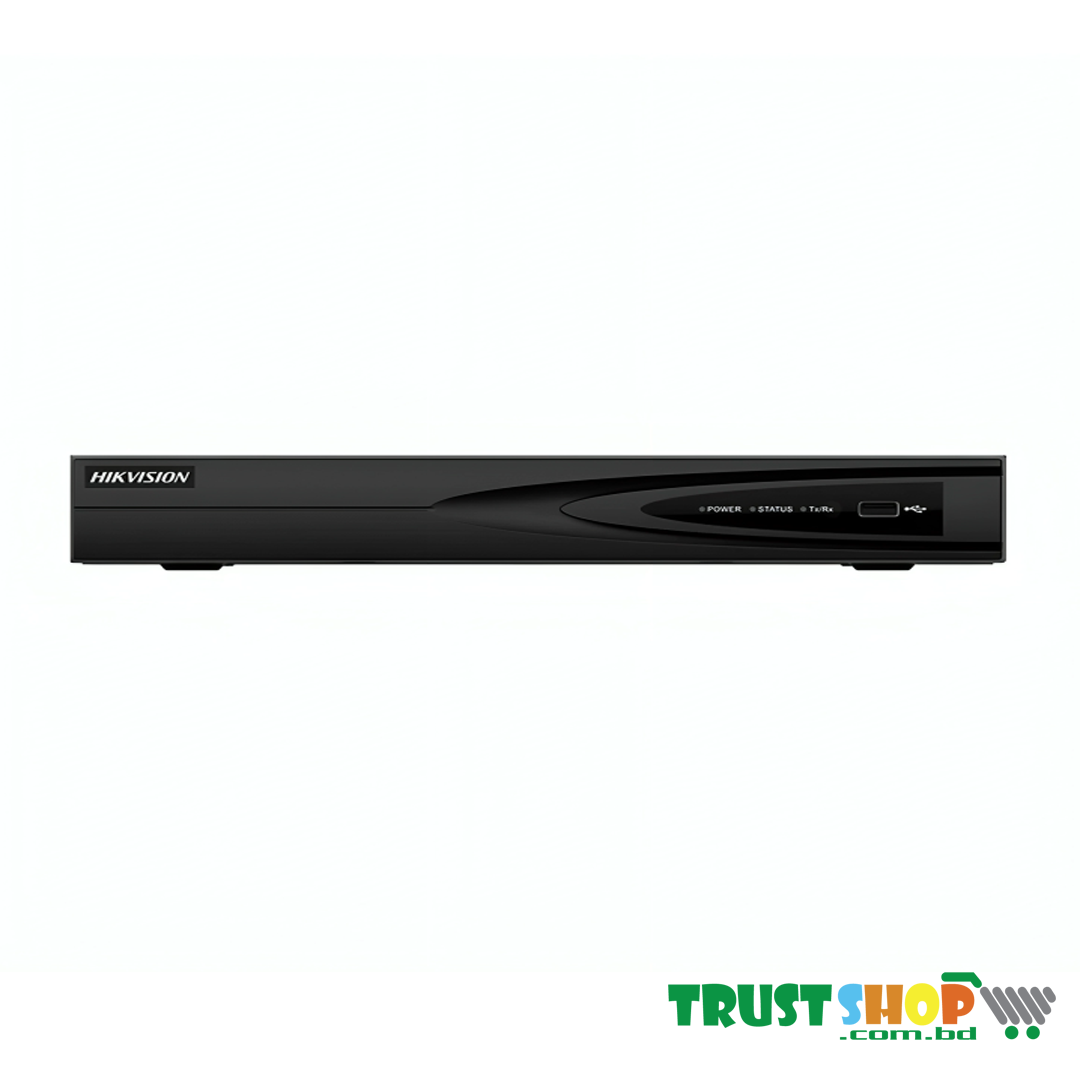

Hikvision DS-7616NI-Q116 Channel 1U 4K NVR
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | Hikvision DS-7616NI-Q1 |
| Type | 16-channel NVR |
| Video Compression/Format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Video Output (VGA) | 1-channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) | 1-channel, 4K (3840 x 2160)/30Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Max. Video Recording Resolution | 1920 x 1080 |
| IP Video Input | 16-channel, Up to 8 MP resolution |
| Audio Output Channel | 1-channel, RCA (Linear, 1K omega) |
| Two-way Audio | 1-channel, RCA (2.0 Vp-p, 1K omega) |
| Dual-Stream Support | Unmentioned |
| Live View / Playback Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Decoding Capability | 1-channel, 8 MP, 4-channel, 1080p, 8-channel, 1080p |
| Synchronous Playback | 16-channel |
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, and HTTPS |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB,TB) | Up to 8 TB capacity for each disk |
| Max. Storage Support | 8TB |
| eSATA | No |
| Network Interface (RJ45) | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Serial Interface | No |
| USB Port | 2 x USB 2.0 |
| Remote Connections | 32 |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Chassis | 1U chassis |
| Power Supply | 12VDC |
| Approx. Power Consumption | <-10 W |
| Max. Power | <-18W |
| Dimensions | 315 x 240 x 48mm |
| Weight (Kg) | <-1 kg |
| Smart Phone Supported | Yes |
| Features | Connectable to third-party network cameras, Up to 16 IP cameras can be connected, HDMI/VGA simultaneous output (DS-7604NI-Q1), HDMI and VGA independent outputs (DS-7608NI-Q1 and DS-7616NI-Q1), HDMI Video output at up to 4K (3840 ?? 2160) resolution, 1 SATA interface connectable for recording and backup, H.265+ compression effectively reduces the storage space and costs by up to 75% |
| Others | Up to 160 Mbps incoming bandwidth, H.265+/H.265/H.264+/H.264 video formats |
| Part No | DS-7616NI-Q1 |
| Warranty Details | 1 year |
Hikvision DS-7616NI-Q116 Channel 1U 4K NVR
The Hikvision DS-7616NI-Q116 Channel 1U 4K NVR It has a new, logical GUI design. It uses ANR technology to enhance storage reliability when the network is disconnected. Up to 16-ch 5 MP IP cameras can be connected. Recording HDMI or VGA at 1920 x 1080. It also has HDD hot swap with RAID0, RAID1, RAID5, and RAID10 configurable. On the other hand, its Hikvision 265+ compression effectively reduces storage space and costs by up to 75%. Its channel can be recorded at a 12 MP resolution. It has 16 SATA interfaces and 8 HDDs to
8TB for HDD. Apart from up to 16/32 channels, IP cameras are connected. It has up to 100 Mbps or 200 Mbps when enabled. high bandwidth ensures IP cameras can be connected. It comes with 2 HDMI sources and 2 VGAs. This NVR 16 HDD supports continuous video recording while also supporting some specialist cameras, including people counting cameras, ANPR automatic number recognition cameras, and fisheye cameras. Advanced streaming enables smooth live viewing in poor network conditions. This product has a 1-year warranty.
What is the price of the Hikvision DS-9664NI-I16 64 Channel NVR in Bangladesh ?
The latest price of the Hikvision DS-9664NI-I16 64 Channel NVR Price in Bangladesh is 11400 BDT. You can buy a Hikvision DS-9664NI-I16 64-channel NVR from us. To buy this product, you can either buy it through our website or come directly to our office.
