ONV H3064PS PoE Switch Best Price in Bangladesh
ONV H3064PS PoE Switch TECHNICAL SPECIFICATION :
| Model | ONV-H3064PS | |
| Interface Characteristics | ||
| Fixed Port |
4*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
8*10/100/1000Base-T PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-6/ Port 1-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission |
10BASE-T: Cat3, 4, 5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
| Chip Parameter | ||
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 16Gbps (Non-blocking) | 20Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
8.93Mpps | 14.88Mpps |
| MAC | 8K | 2K |
| Buffer Memory | 2M | |
| Jumbo Frame | 9.2k | |
| LED Indicator | Power: PWR (Green), Network: Link (Green), PoE: PoE (Green) | |
| PoE & Power Supply | ||
| PoE Port | Port 1 to 4 | Port 1 to 8 |
| Power Supply Pin | 1/2(+) 3/6(-) | |
| Max Power Per Port | 30W, IEEE802.3af/at | |
| Total PWR / Input Voltage | 65W/ (AC100-240V) | 120W/ (AC100-240V) |
| Power Consumption | Standby <5W, Full load <65W | Standby <6W, Full load <120W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz 1.1A | Built-in power supply, AC100~240V 50-60Hz 2.2A |
| Physical Parameter | ||
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 140*115*40mm | 195*130*40mm |
| Net /Gross Weight | <0.6kg / <1.0kg | <0.9kg / <1.2kg |
| Installation | Desktop, Wall-mounted | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
ONV H3064PS PoE Switch Best Price in Bangladesh

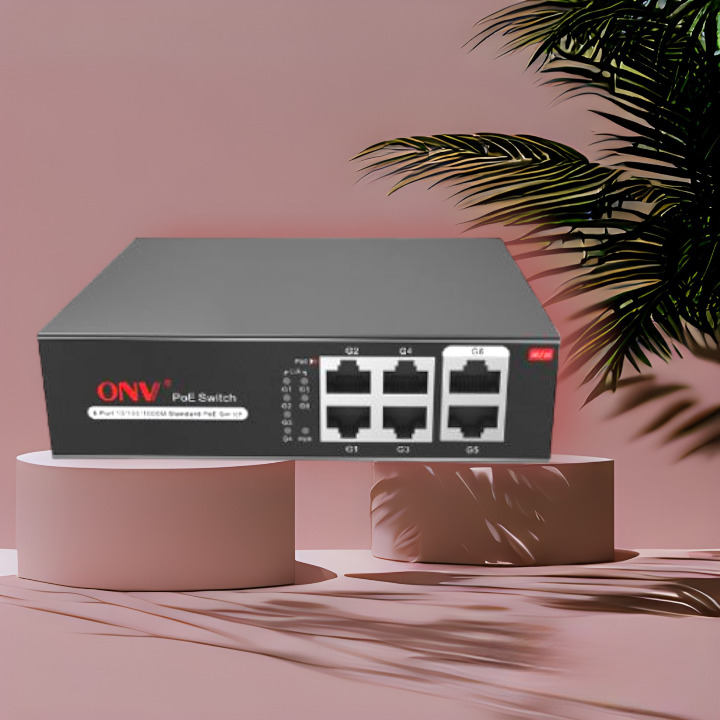

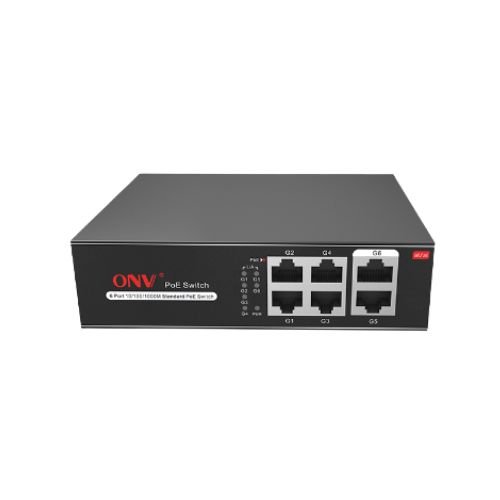

The ONV H3064 PS full PoE Switch is a full gigabit unmanaged PoE switch designed and manufactured by ONV. It includes a 65 W power supply that can detect and identify power-receiving devices that fulfills the standard and supply power over the network line. This PoE switch has a capacity of 250 M and six Gigabit PoE ports. It has four 100/1000M PoE ports, one Gigabit port, and two 100/1000M PoE up-link Gigabit ports.
Overall, the ONV H3064 PS Full PoE Switch is appropriate for forming an economically efficient network in institutes, dormitories, factory quarters, and small and medium-sized organizations.
What is the Price of the ONV H3064PS PoE Switch in Bangladesh in 2023?
The latest price of the ONV H3064PS Full PoE Switch is 4250 BDT. You can buy the ONV H3064 PS Full PoE Switch from us. To buy this product, You can either buy it through our website or directly visit our office.
