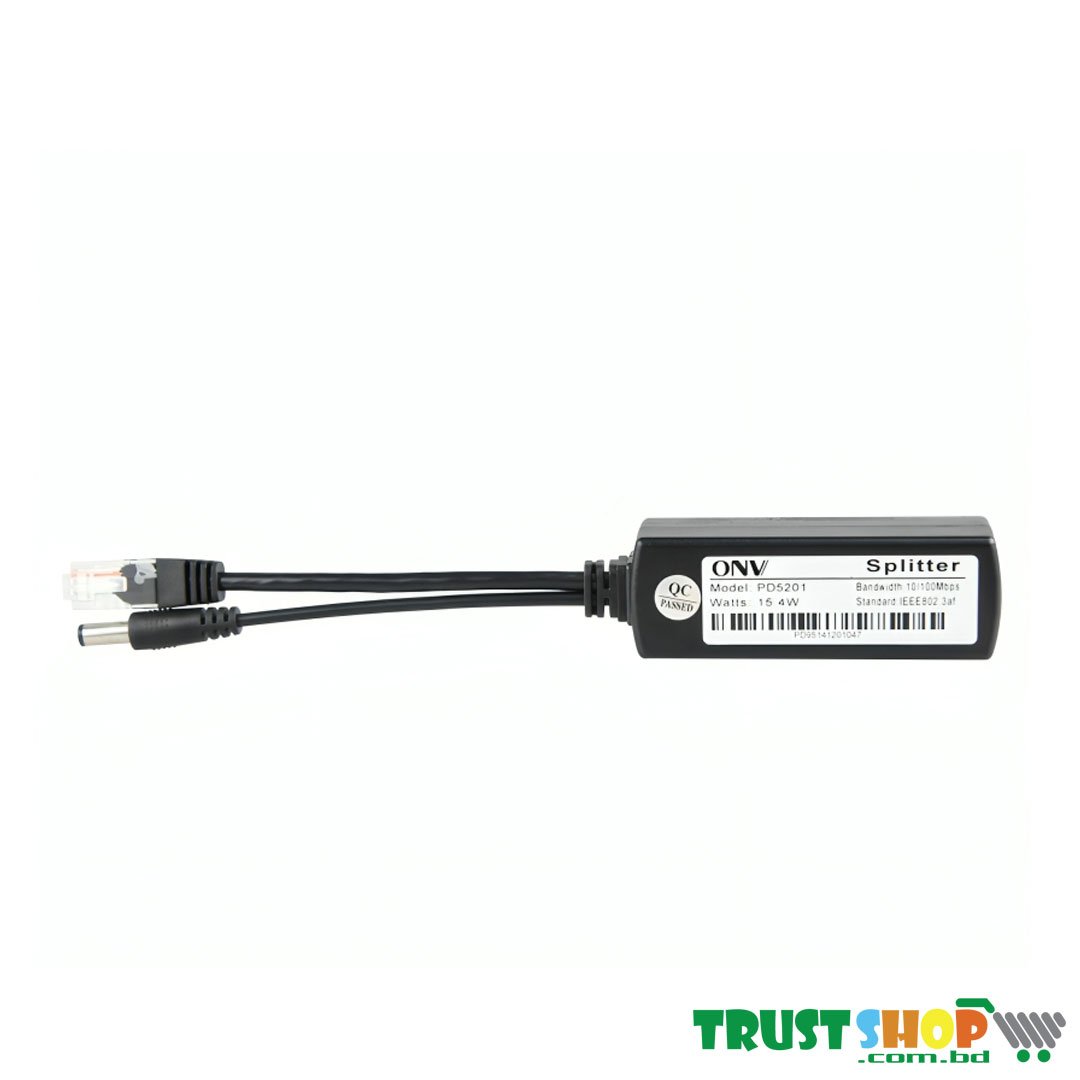

ONV PD5201 10Mbps to 100Mbps PD PoE Splitter Cable

৳449 ৳417.57

-7%

Status

In Stock

Description

FEATURE

10/100Mbps fast Ethernet

◇ Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )

◇ Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple.

◇ Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency

◇ Support short circuit, over current and over temperature protection

◇ 1500V high voltage isolation (input stage to output stage) (only applicable to ONV-PD5202, ONV-PD5202-at)

◇ DC interface has dustproof and waterproof measures

Feature	Specification
Model	ONV-PD5201
Fixed Port	110/100Base-TX RJ45 port (Data), 18P male output port (Data), 1*DC5521 power port (Power)
Ethernet Port	Ethernet port can support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Network Characteristics	Transmission Bandwidth (Rate): 10/100Mbps, Twisted Pair Transmission: 10BASE-T: Cat3,4,5 UTP(≤100 meter), 100BASE-TX: Cat5 or later UTP(≤100 meter)
LED Indicator	Working indicator: POE (Yellow)
PoE & Power Supply	PoE Port (PD): PD port IEEE802.3af/at @ POE, Network Protocol: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x, Power Supply Pin: 1/2 (+), 3/6 (-) & 4/5 (+), 7/8 (-), Input Voltage: 44-57VDC, Output Voltage: Default 12VDC± 0.5V, optional 5V,9V,24VDC, Default DC5521 plug, optional Micro USB power plug, Power Consumption: Standby<1W, Full Load<15W, Standby<1W, Full Load<13W, Standby<1W, Full Load<24W, Conversion Efficiency (Output: Input): ≥82%
Physical Parameter	Operation TEMP / Humidity: -20~+55°C, 5%~90% RH Non condensing, Storage TEMP / Humidity: -40~+85°C, 5%~95% RH Non condensing, Dimension (LWH): 853126mm, cable length:≤150mm, Net /Gross Weight: <0.1kg /<0.15kg
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP40
Warranty	1 year, lifelong maintenance.

ONV PD5201 10Mbps to 100Mbps PD PoE Splitter Cable

The ONV PD5201 10Mbps to 100Mbps PD PoE Splitter Cable is a versatile and affordable solution for powering non-PoE devices over a PoE network. It is ideal for a wide range of applications, including security monitoring, wireless coverage, and intelligent transportation. If you are looking for a reliable and cost-effective way to power your non-PoE devices, the ONV PD5201 10Mbps to 100Mbps PD PoE Splitter Cable is the perfect choice for you.

Benefits:

Power non-PoE devices over a PoE network
Extend the reach of your PoE network
Reduce installation and configuration time
Deploy your network in a variety of environments
Ensure the reliability of your network with the rugged and durable design

Applications:

The ONV PD5201 10Mbps to 100Mbps PD PoE Splitter Cable is ideal for a wide range of applications, including:

Security monitoring: The ONV PD5201 can be used to power security cameras and other security devices over a PoE network. This allows you to transmit high-definition video and other data over long distances with minimal latency.
Wireless coverage: The ONV PD5201 can be used to power wireless access points and other wireless devices over a PoE network. This allows you to extend the reach of your wireless network to remote locations.
Intelligent transportation: The ONV PD5201 can be used to power traffic lights, cameras, and other intelligent transportation systems over a PoE network. This allows you to monitor and manage traffic flow more effectively.
