Description
Specification of The Panduit UTPSP3MBUY Patch Cord
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcal) | 0.4 |
| Sub Brand | Pan-Net® |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | Polyvinyl Chloride |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 3 |
| Nominal Cable Outside Diameter (mm) | 5.8 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Clear |
| Color | Blue |
| Flammability Rating | CM |
| Standards Met | Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863, Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Plug Type | 8 Position |

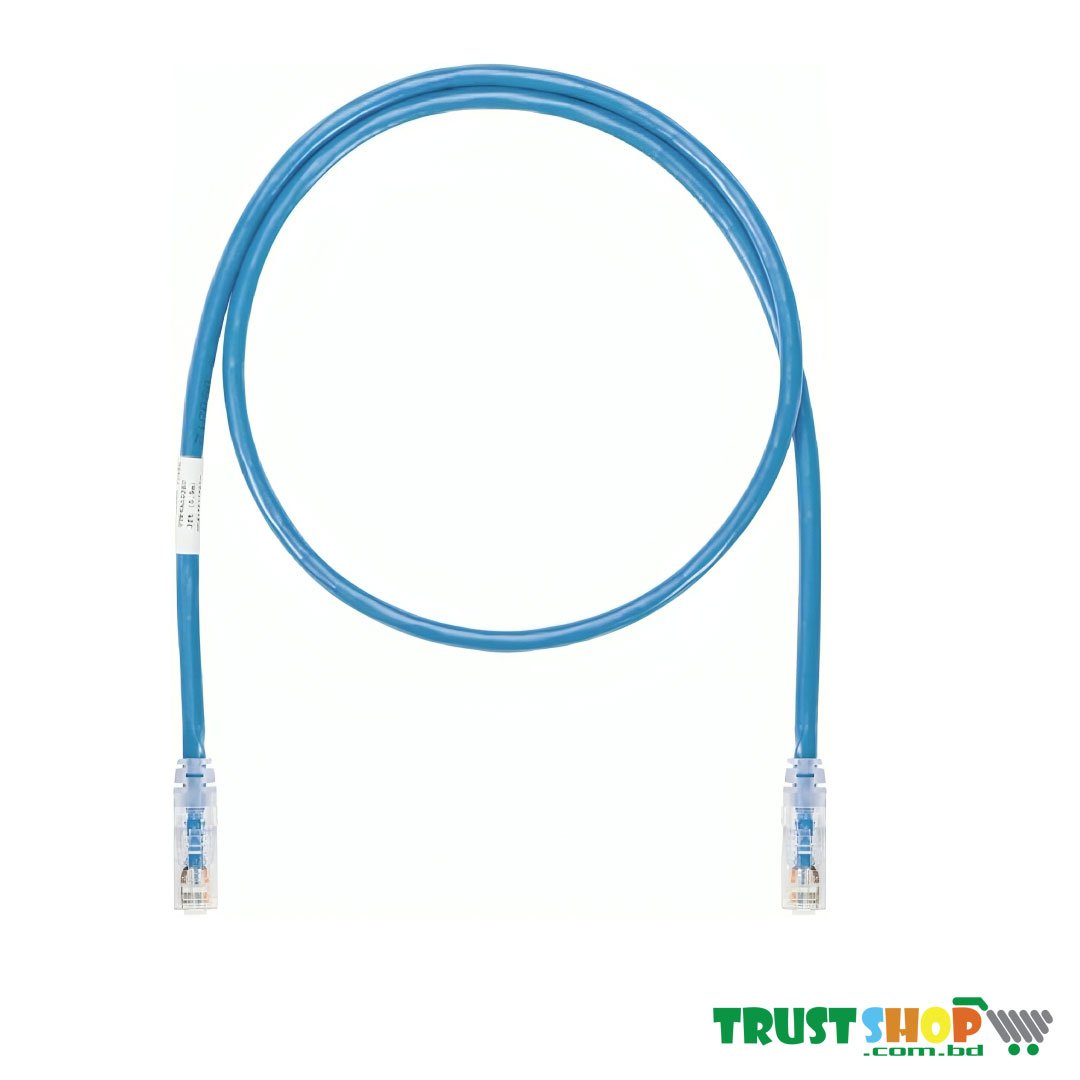

Panduit UTPSP3MBUY Patch Cord
The TX6TM PLUS Cat 6 UTP Patch Cord is a 3-meter, blue cord of 24 AWG, unshielded, twisted pair, stranded CM cable with good-performance modular plugs. Its tangle-free latch prevents snags from a fast release, streamlining moves and changes. The slender strain relief boot is easy to access in high-density applications. Enabled with RapidID, the product pre-installed barcodes for simple port using RapidID software.
What is the price of the Panduit UTPSP3MBUY Patch Cord in Bangladesh ?
The latest price of the Panduit UTPSP3MBUY Patch Cord Price in Bangladesh is 449 BDT. You can buy a Panduit UTPSP3MBUY Patch Cord from us at the best price. You can either buy it through our website or directly visit our office.
