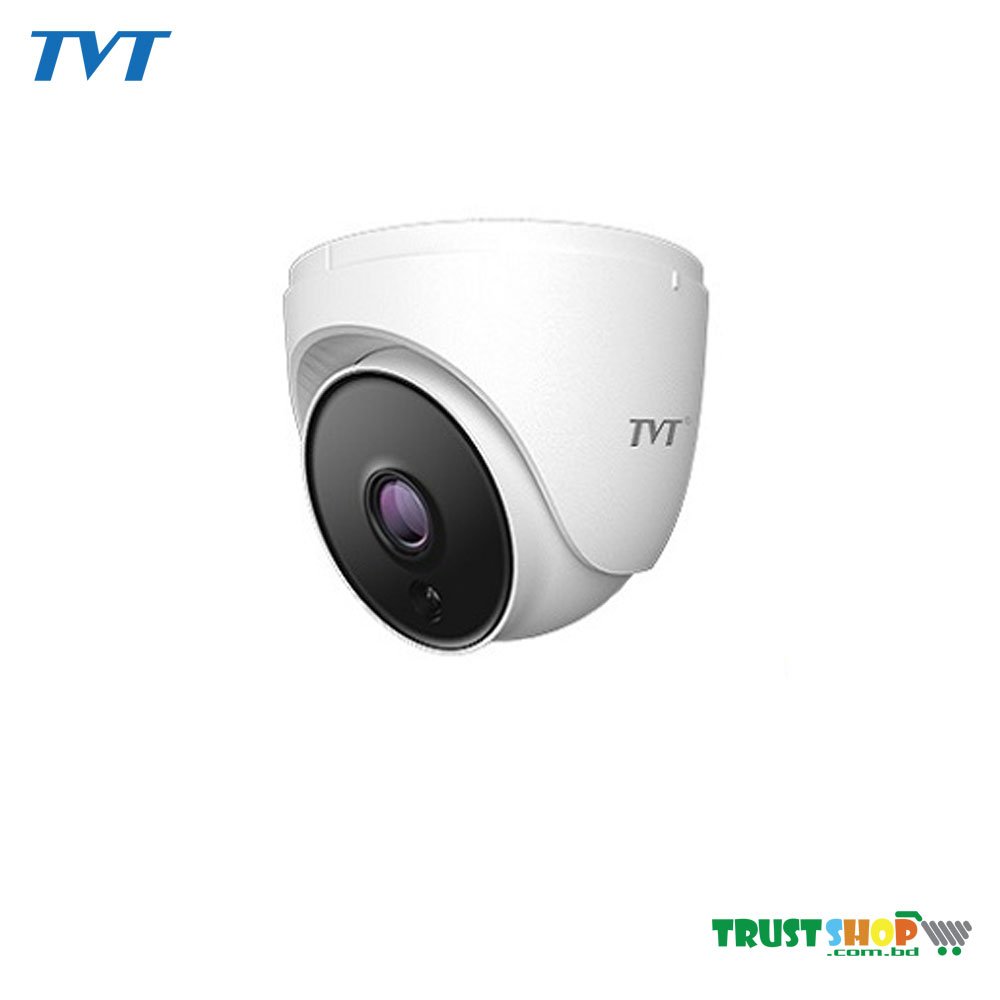

TVT TD-7520TS2S 2MP HD IR Dome Camera
TVT TD-7520TS2S(D/IR1) analog close circuit camera offers a quality of up to 1000 TVL. Because ;the CMOS sequential scan, it can record the solid target accurately. It also includes transmission at high speeds, over great distances, noise-reducing system, and full detailed object recording.
Features
- 1080P real-time image, high resolution, true color
- AHD / TVI / CVI /CVBS standard and lossless video output
- Up to 1000 TVL resolution
- CMOS progressive scan, perfectly capture the moving object
- Support OSD menu
- High speed, long distance and real time transmission
- Auto color to B / W at low illumination
- Support ICR switch, true day / night, digital WDR
- Support noise reduction function
- 10 ~ 20m IR night view distance
- Support COC
Trust IT authorized dealer of TVT Camera in Bangladesh. You can buy the TD-7520TS2S 2MP HD IR TVT Dome Camera at the best price at our headquarters or our showroom. We have dedicated technical engineers to support you across Bangladesh. Full configuration and after-sales support can be provided at the best price. For more information please contact us on our Facebook page
Information :
| Image Sensor | 1 / 3.2″CMOS |
| Resolution | 2MP |
| Image Size | 1920 x 1080 |
| Video Output | AHD / TVI /CVI/CVBS |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto; 1 / 50s ~ 1 / 100000s ( PAL ); |
| 1 / 60s ~ 1 / 100000s ( NTSC ) | |
| IR Distance | 10 ~20 m |
| Frame Rate | 30fps(60Hz); 25fps (50Hz) |
| Min. Illumination | 0 lux (IR ON) |
| Lens | 2.8mm，3.6 mm |
| Lens Mount | M12 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Function Control | OSD ( COC Control ) |
| Day & Night | ICR |
| Digital WDR | Yes |
| Digital NR | Yes |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| FLC | Yes |
| Defog | No |
| HLC | No |
| Sharpness | Yes |
| Mirror | Yes |
| Smart IR | Yes |
| Image Setting | Yes |
| Defect Correction | Auto |
| Language | Chinese and English |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
| Power Supply | DC12V ( ± 10% ) |
| Power Consumption | IR OFF : < 1W; IR ON : < 3W |
| Working Environment | – 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |
| Dimensions ( mm ) | Ф 77.5 x 67.6 |
| Weight ( net ) | Approx. 0.17KG |
