Description
Specification of the Dahua DH-HAC-HDW1200TRQP-A 2MP HDCVI IR Dome Camera
| Camera | ||
| Image Sensor | 1/2.7 inch CMOS | |
| Max. Resolution | 1920(H)×1080(V) | |
| Pixel | 2MP | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s |
|
| S/N Ratio | >65dB | |
| Min. Illumination | 0.02 Lux/F1.9, 30IRE, 0 Lux IR on | |
| Illumination Distance | 25 m (82.0 ft) | |
| Illuminator On/Off Control | Auto; manual | |
| Illuminator Number | 2 (IR) | |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
|
| Video | ||
| Frame Rate | CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H |
|
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480) | |
| Day/Night | Auto switch by ICR | |
| BLC | BLC/HLC/DWDR | |
| WDR | DWDR | |
| White Balance | Auto; manual | |
| Gain Control | Auto; manual | |
| Noise Reduction | 2D NR | |
| Smart IR | Yes | |
| Mirror | Off/On | |
| Privacy Masking | Off/On (8 area, rectangle) | |
| Certification | ||
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No. 60950-1) |
|
| Port | ||
| Video output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Audio Interface | Built-in Mic (-A) | |
| Power | ||
| Power Supply | 12V ±30% DC | |
| Power consumption | Max. 2.6 W (12V DC, IR on) | |
| Environment | ||
| Operating Temperature | -40°C to +50°C (-40°F to 122°F);<95% (non-condensation) | |
| Storage Temperature | -40°C to +50°C (-40°F to 122°F);<95% (non-condensation) | |
| Protection Grade | IP50 | |
| Structure | ||
| Casing | Plastic | |
| Dimensions | Φ97.1 mm × 93.0 mm (Φ3.82″ × 3.66″) | |
| Net Weight | 0.17 Kg (0.37lb) | |
| Gross Weight | 0.23 Kg (0.51lb) | |
| Lens | ||
| Lens Type | Fixed -Focal | |
| Mount Type | M12 | |
| Focal Length | 2.8 mm; 3.6 mm | |
| Max. Aperture |
2.8 mm: F1.9 3.6 mm: F2.0 |
|
| Field of View |
2.8 mm: H: 101°; V: 54° ; D: 119° 3.6 mm: H: 84°; V: 45°; D: 100° |
|
| Iris Type | Fixed iris | |
| Close Focus Distance |
2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) |
|

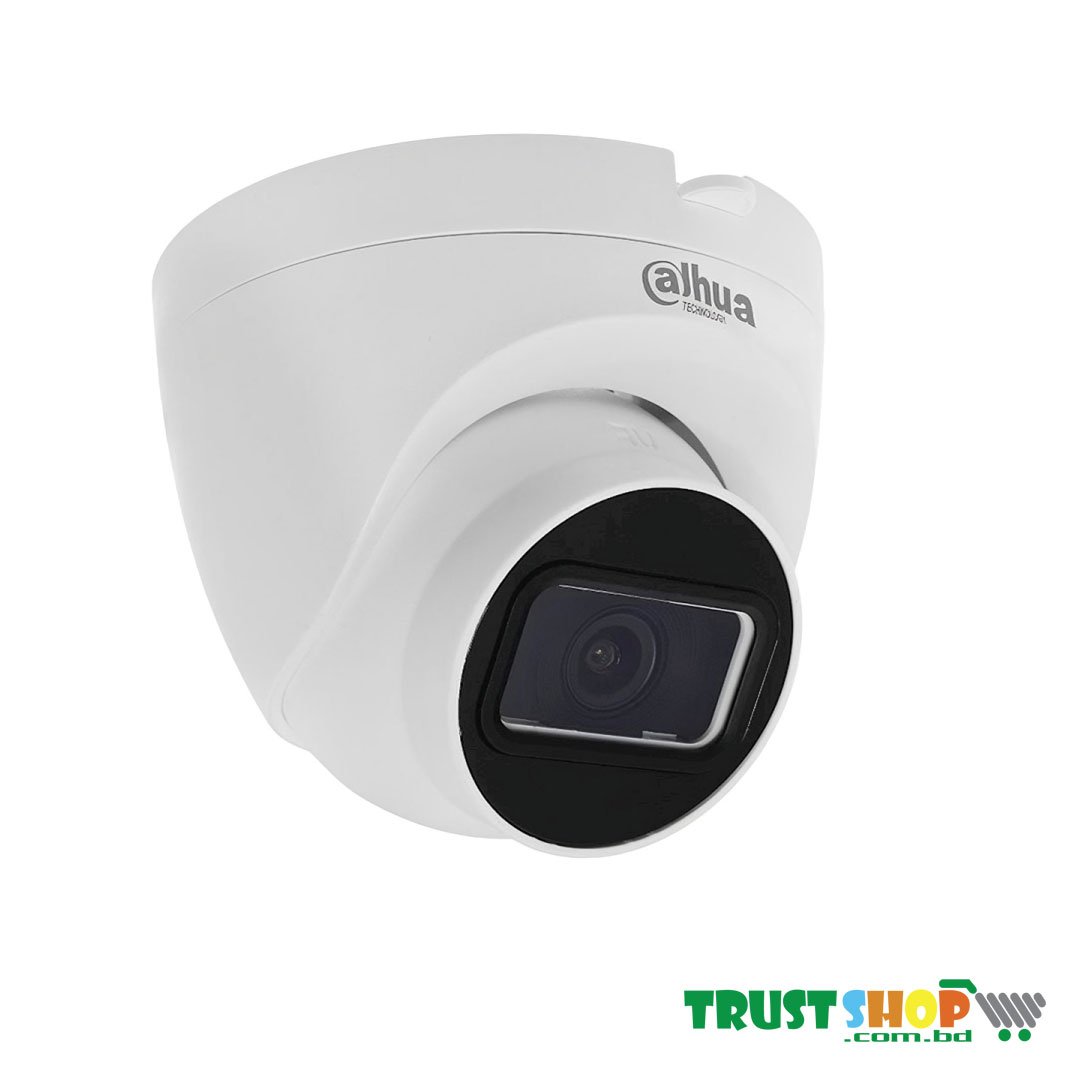

Details of the Dahua DH-HAC-HDW1200TRQP-A 2MP HDCVI IR Dome Camera
The Dahua DH-HAC-HDW1200TRQP-A 2MP HDCVI IR Dome Camera is a high-performance, cost-effective surveillance solution for indoor and outdoor uses. It contains a 1/2.7” 2MP CMOS image sensor, a 3.6mm fixed focal lens, and a maximum resolution of 1920 x 1080P. This camera also features auto-area white balance and 2D NR noise reduction.
It has an IP67 rating for dust and water resistance and supports H.265/H.264 video compression for enough storage and transmission. The output capacity is 12V + 30% DC. It has a progressive scanning system alongside a minimum illumination of 0.04 Lux/F1.85 Lux (white light on), with illuminater on/off control available in auto and manual modes.
Overall, the Dahua HAC-HDW1200TRQP-A 2MP IR HDCVI Fixed-Focal Eyeball Camera has a compact design and offers a high-quality image.
What is the price of the Dahua DH-HAC-HDW1200TRQP-A 2MP HDCVI IR Dome Camera in Bangladesh ?
The latest price of the Dahua DH-HAC-HDW1200TRQP-A 2MP HDCVI IR Dome Camera Price in Bangladesh is 1850 BDT. You can buy the Dahua 2MP Dome Camera from us at the best price. You can either buy it through our website or come directly to our office.
