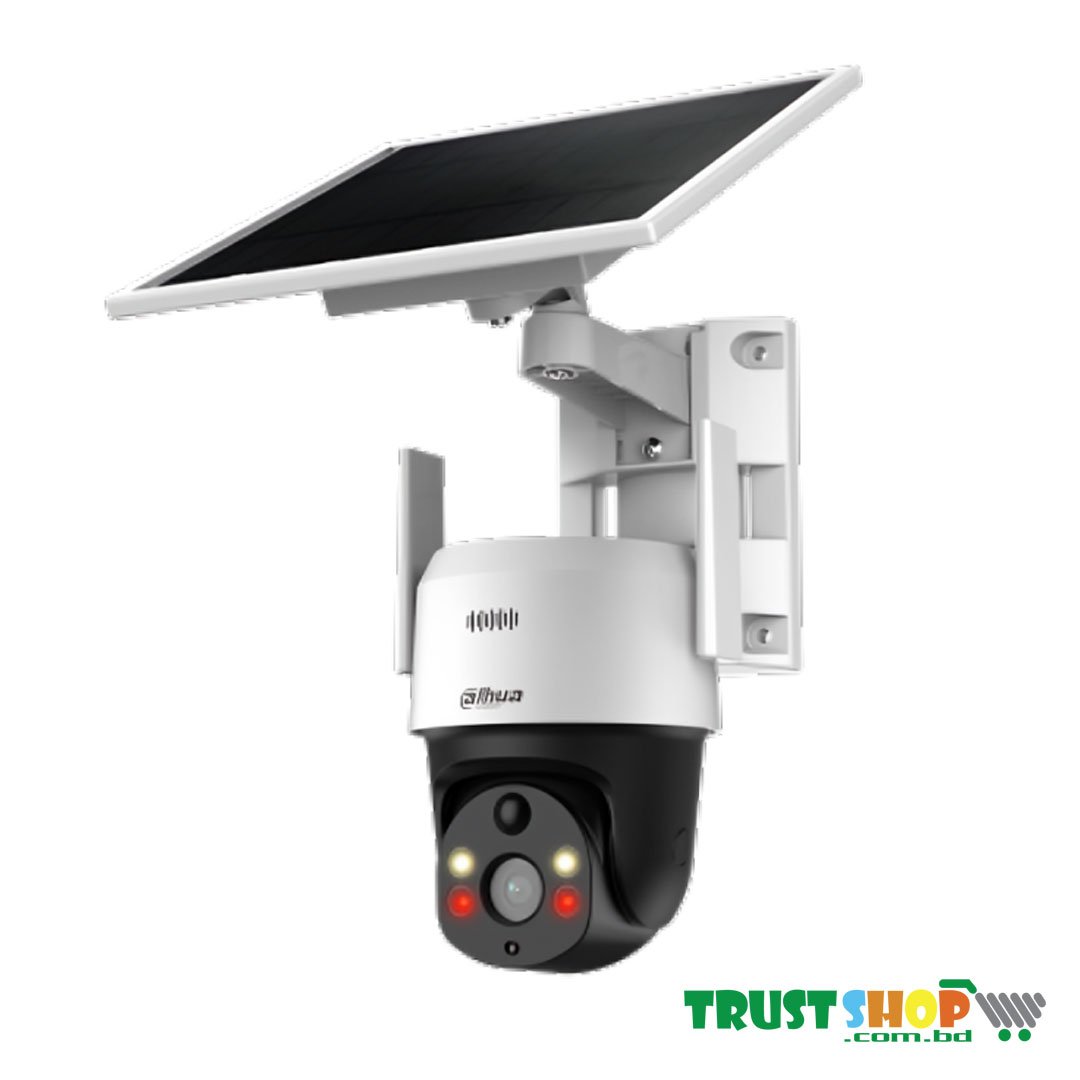

Dahua SD2A200HB-GN-AGQ-PV-SP-EAU 2MP 4G Solar Power Network PT Camera

Camera

Image Sensor

1/2.8″ CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

256 MB

Electronic Shutter Speed

1/3s–1/30,000s

Scanning System

Progressive

Min. Illumination

Color: 0.05 lux at F1.6
B/W: 0.005 lux@F1.6
0 lux at F1.6 (Illuminator on)

Illumination Distance

30 m (98.43 ft) (IR)
30 m (98.43 ft) (white light)

Illuminator On/Off Control

Manual; Smart IR; Off

Illuminator Number

2 (IR)

2 (white light)

PIR Sensor Distance

10 m (the height of device is 2.2 m, placed horizontally, +25°C, +77°F)

7m (the height of the device is 2.2 m, placed at an angle of 15° from the horizontal, +25 °C, +77 °F)

Battery

Battery Type

Lithium-ion

Capacity

10 Ah

Max. Charging Voltage

4.2 V

Operating Temperature

0 °C to +50 °C (+32 °F to +122 °F)

Battery Voltage

3.6 V

Cycle Lifetime

Sleep Mode:7 days (at the rate of 1-hour remote live view per day)

Battery Life

More than 500 cycles

Battery Weight

Approx. 192 g (0.42 lb)

Solar Module

Maximum Power

5.5 W

Cell type

Monocrystalline

Operating Temperature

–40 °C to +80 °C (–40 °F to +176 °F)

Dimensions

224 mm × 195 mm × 44mm (8.8″ × 5.9″ × 1.7″) (L × W × H)

Standard testing condition

AM = 1.5, 25 °C (77 °F), 1000 W/m², SMQ + 12%

Lens

Focal Length

4 mm

Max. Aperture

F1.6

Field of View

H: 84°
V: 42°
D: 101°

Close Focus Distance

2 m (6.56 ft)

Iris Control

Fixed Iris

DORI Distance

Detect

Observe

Recognize

Identify

86 m

(282.15 ft)

34.4 m

(112.86 ft)

17.2 m

(56.43 ft）

8.6 m

(28.22 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 345°
Tilt: 0° to +80°

Manual Control Speed

Pan: 0.1°/s–74°/s
Tilt: 0.1°/s–36.4°/s

Preset Speed

Pan: 74°/s

Tilt: 36.4°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Active Deterrence

Light Warning

White-light warning
Flash duration: 5 s–30 s
Flash frequency: High, medium, low

Sound Warning

1 sound warning alarm
The alarm can be configured to go off 1-3 times

Video

Video Compression

H.265; H.264; H.264B; H.264H; MJPEG (Sub Stream)

Streaming Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480)

Video Frame Rate

Main stream: 1080p/1.3M/720p @ (1–25/30 fps)

Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 256 kbps–8192 kbps

H.265: 144 kbps–5632 kbps

Day/Night

Auto (ICR)

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic

Image Rotation

180°

S/N Ratio

≥ 55 dB

Audio

Audio Compression

G.711a; G.711Mu

Network

Network Port

RJ-45 (10/100 Base-T)

4G

Yes

Frequency Band

LTE-FDD: B1/3/5/7/8/20/28

LTE-TDD: Band 38/40/41

WCDMA: Band 1/5/8

GSM: 850/900/1800 MHz

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SMB; NFS

Interoperability

ONVIF (Profile S&G&T); CGI; SDK; P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (supports up to 512 GB); NAS

Browser

IE 9 and later versions
Chrome 41 and earlier versions
Firefox 50 and earlier versions
iOS 10 and later versions

Management Software

DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

CE-RED: Radio Equipment Directive 2014/53/EU;

FCC: 47 CFR FCC Part 15; Subpart B

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Alarm Linkage

Capture; record; send email; preset; audio; warning light

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; passive infrared detection

Power

Power Supply

5.4 VDC, 3A (Standard solar panel)

Battery Life on a Full Charge

Sleep Mode: 7days (at the rate of 1-hour remote live view per day)

Power Consumption

Sleep: 35 mW
Static: 2.3W (daytime,only SD storage) 2.5 W (daytime: pulling stream in 4G), 4.8 W (illuminator on, pulling stream in 4G)
Max.: 10 W (illuminator + PTZ + heater + pulling stream in 4G)

Environment

Operating Temperature

0 °C to +50 °C (32 °F to +122 °F)

Operating Humidity

≤ 95%

Storage Temperature

0 °C to +50 °C (32 °F to +122 °F)

Storage Humidity

≤ 95%

Protection

IP66 TVS 2000 V lightning-proof; surge protection; voltage transient protection

Structure

Product Dimensions

336 mm × 247 mm × 223 mm (13.23″ × 9.72″ × 8.78″) (L × W × H)

Net Weight

1.40 kg (3.09 lb)

Gross Weight

2.14 kg (4.72 lb)
