Description
Specification of the Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-Color Network PTZ Camera
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8″ CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel |
5 MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2560 (H) × 1920 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
Color: 0.005 lux at F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Manual; auto; off |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
2 (IR light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
4.0 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 80.4° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.3 m (0.98 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Detect |
Observe |
Recognize |
Identify |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
77.4 m (253.94 ft) |
31.0 m (101.71 ft) |
15.5 m (50.85 ft) |
7.74 m (25.39 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range |
Pan: 0° to 345° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed |
Pan: 0.1°–74°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed |
Pan: 62°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset |
300.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power-off Memory |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion |
Preset |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Event |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS |
Tripwire; intrusion |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Human Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Active Deterrence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Warning |
White-light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sound Warning |
Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability |
2 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P (1280×960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream: 5M (1–20 fps), 4M/1080p, 1.3M/720p (1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H264: 512–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto (ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
2D NR; 3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
180° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
≥ 55 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi–Wireless Standard |
802.11n;IEEE802.11b;802.11g |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi–Wireless Frequency Range |
2.4GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi–Wireless Transmission Rate |
150Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
RTMP;CGI;SDK;ONVIF (Profile S&T);P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method |
Unicast/Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
Micro SD card (support max. 512 GB); FTP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE: IE 7 and later versions; Chrome; Firefox; Safari |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Player;Smart Player ;Imou;DMSS;ConfigTool;NVR;Smart PSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 channel (built-in mic) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1 channel (built-in speaker) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Audio |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Capture; preset; recording; audio; sending email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio I/O |
1/1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC/1.5 A±10% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 3.5 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30 °C to +55 °C (–22 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
140.5 mm × Φ111.0 mm (5.53″ × Φ4.45″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.5 kg (1.10 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1 kg (2.20 lb) |

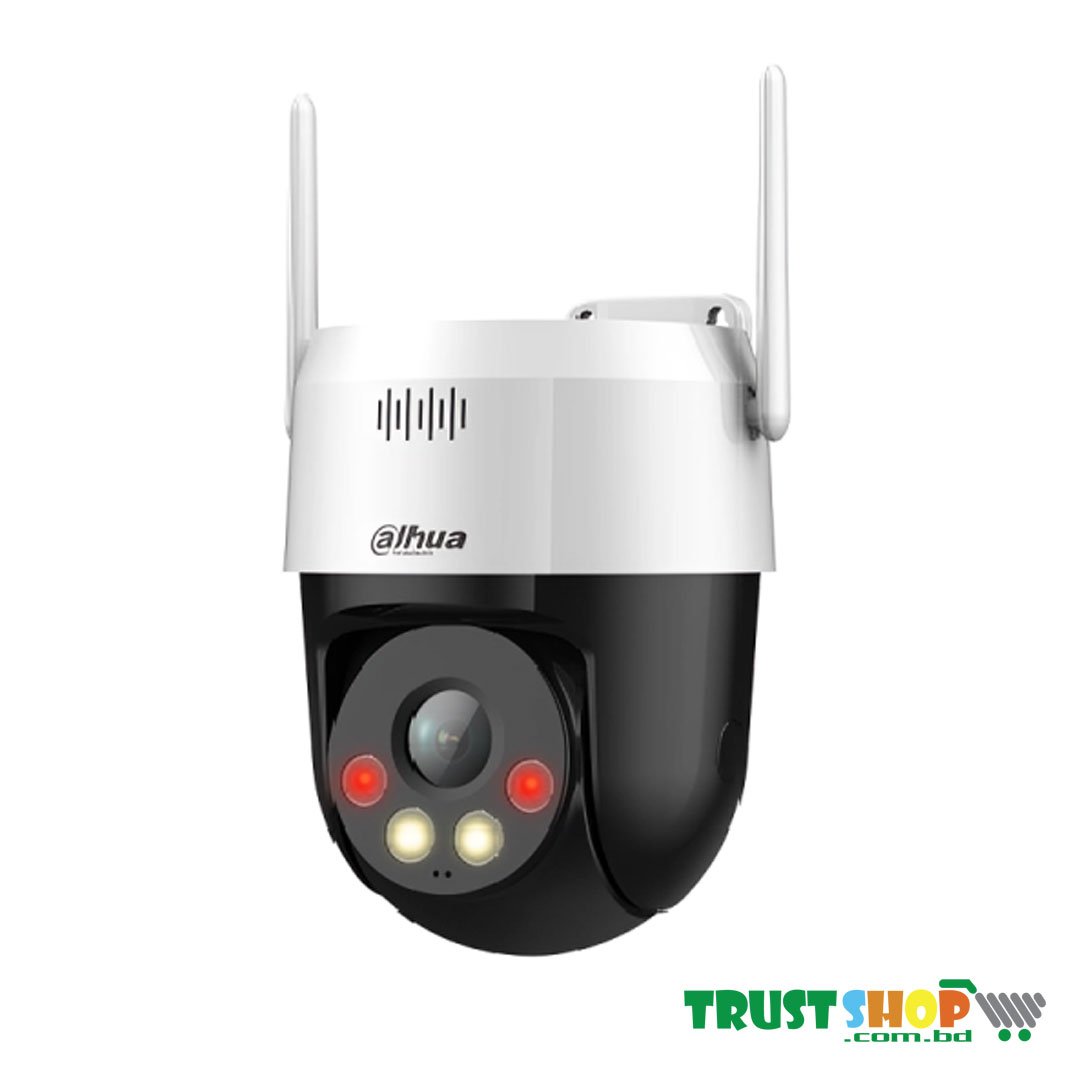

Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-Color Network PTZ Camera
The Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-Color Network PTZ Camera is a high-performance, cost-effective surveillance solution for indoor and outdoor uses. It contains a 1/2.8″ 5 Megapixel progressive CMOS image sensor, a 3.6-mm fixed focal lens, and a maximum resolution of 2560 x 1920P. This camera also features auto or manual white balance and 3D NR noise reduction. This camera casing material is made of metal and plastic.
It has an IP67 rating for dust and water resistance and supports H.265/H.264 video compression for enough storage and transmission. The output capacity is 12V + 30% DC. It has a progressive scanning system alongside a minimum illumination of 0.03 Lux at F2.0 (white light on), with IR and white light, and three night view modes. It’s supporting human detection.
Overall, the Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-Color Network PTZ Camera has a compact design and offers a high-quality image.
What is the price of the Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-Color Network PTZ Camera in Bangladesh ?
The latest price of the Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-Color Network PTZ Camera Price in Bangladesh. You can buy the Dahua 5 MP full-color network PTZ camera from us at the best price. You can either buy it through our website or come directly to our office.
