Description
Specification of the Dahua XVR1B04H-I 4 Channels Penta-Brid 5M-N/1080P Cooper 1U 1HDD DVR
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web; Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
4-channel: Secondary filtering for humans and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input |
4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI, and CVBS access can be configured. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input |
1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input |
Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps; and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI function (SMD) will be disabled. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capacity |
Main Stream: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
32 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sampling |
8 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
64 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
When IP extension mode not enabled: 1/4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access |
ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
AI Coding; H.265+; H.265; H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF 21.06; CGI Conformant |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Mode |
Single-address mode |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
General, motion detection, alarm,POS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
1/4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB device and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
Instant playback, general playback, event playback, and tag playback |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection, video loss, and tampering |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
No disk, disk error, low space, offline, ip conflict, MAC conflict |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ports |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk |
Yes (share the same audio input with the first channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDD Interface |
1 SATA port, up to 16 TB The maximum HDD capacity varies with the environment temperature. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 USB ports (USB 2.0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1 (10/100 Mbps Ethernet port, RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC, 1.5 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<4 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.55 kg (1.21 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.02 kg (2.25 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
197.0mm × 203.4 mm × 41.5 mm (7.76” × 8.01” × 1.63”) (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
332.0 mm × 240.0 mm × 64.0 mm (13.07″ × 9.45″ × 2.52″) (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
0%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
FCC: Part 15, Subpart B |

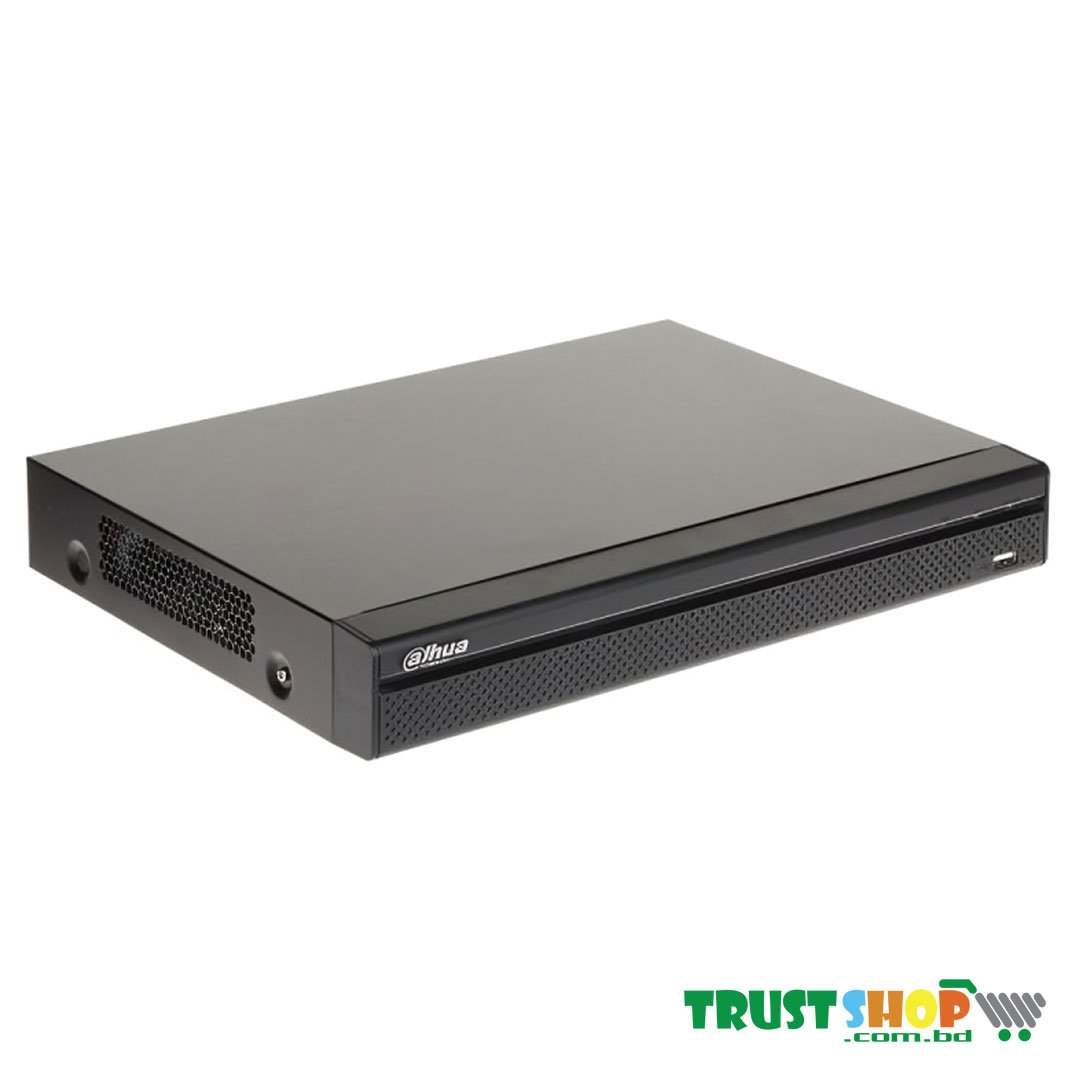

Details of the Dahua XVR1B04H-I 4 Channels Penta-Brid 5M-N/1080P Cooper 1U 1HDD DVR
The Dahua XVR1B04H-I 4 Channels Penta-Brid 5M-N/1080P Cooper 1U 1HDD DVR is a high-quality and effective surveillance device, providing high-quality video recording and easy access to recorded footage. The Dahua 4 Channel DVR supports a maximum resolution of 1080p, ensuring that you can capture clear and detailed video footage. It’s offering comprehensive playback options, including the ability to instant playback, general playback, event playback, and tag playback.
It has a maximum of 6 IP camera input channels, each with a resolution of up to 6MP, and a maximum incoming bandwidth of 32 Mbps. It is perfect for a wide range of civil applications, such as retail stores, home protection, and so on.
Overall, the Dahua XVR1B04H-I 4 Channel DVR provides high performance at attractive costs. It offers a great solution for users facing budget constraints who both require quality and performance.
What is the price of the Dahua XVR1B04H-I 4 Channels Penta-Brid 5M-N/1080P Cooper 1U 1HDD DVR in Bangladesh in 2023?
The latest price of the Dahua XVR1B04H-I 4 Channels Penta-Brid 5M-N/1080P Cooper 1U 1HDD DVR is 4650 BDT. You can buy the Dahua XVR1B04H-I 4-channel DVR from us at the best price. You can either buy it through our website or directly visit our office.
