Description

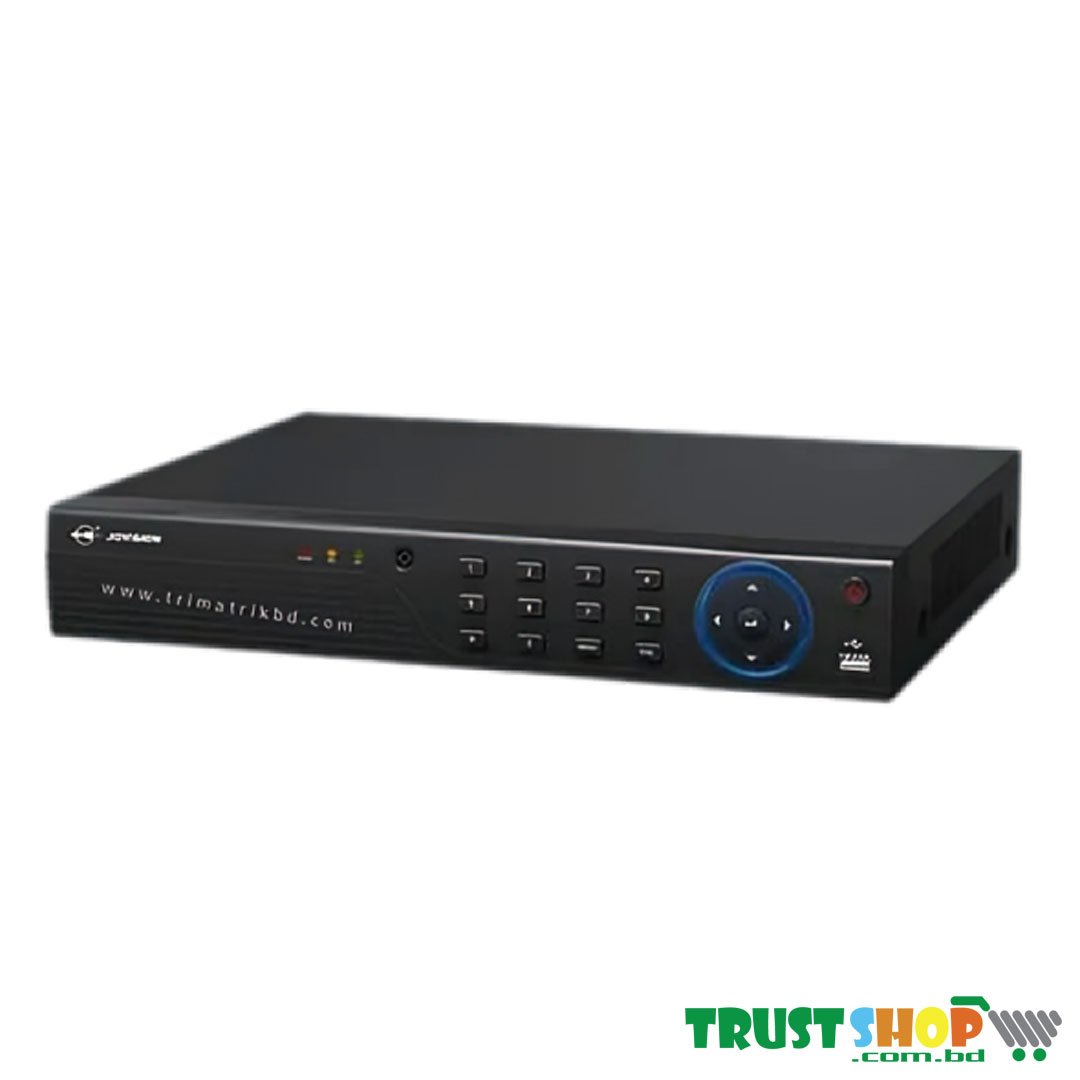

Specification of the Jovision JVS XD2832 HE20K 5 in 1 32 Channel XVR
| Model | JVS-XD2832-HE20K |
| Video and Audio | |
| Analog Camera Input | 32CH, BNC |
| HDCVI Camera | 1080p@25/30fps, 720p@25/30fps |
| AHD Camera | 4MP, 1080p@25/30, 720p@25/30fps |
| TVI Camera | 1080p@25/30, 720p@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | Up to 1080P |
| Video Port Configuration | Full HD: 32CH |
| Hybrid: 16CH+16CH | |
| Full Network: 32CH | |
| Audio In/Out | 8/1, RCA |
| Two-way Talk | 1CH RCA |
| Recording | |
| Compression | H.264+/H.264 |
| Resolution | 4M-N, 1080N, 720p, WD1 |
| Record Rate | Main Stream: 4M-N(1~8fps), 1080N(1~18fps), 720P/960H/D1(1~18fps） |
| Sub stream: D1/CIF(1~8/12fps) | |
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, IVP),
Alarm Device |
| Audio Compression | G.711U |
| Display | |
| Interface | 1x HDMI, 1x VGA |
| Resolution | 1280×1024, 1024×768, 1280×800, 1440×900, 1920×1080 |
| OSD | Device ID, Time, Record Setting, Alarm Setup, Audio,Camera Title |
| Network | |
| Interface | 1 RJ45 Port (100M) |
| Network Function | TCP/IP, DHCP, DNS, DDNS, HTTPS, HTTP, |
| Smart Phone | iPhone, Android |
| Interoperability | ONVIF 2.4 |
| Playback and Backup | |
| Playback | 8ch 4.0MP/16ch 2.0MP |
| Search Mode | Time /Date, Alarm, MD, IVP, Auto, Scheduled |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play,Fast Forward, Slow, Step, Snap
,Sound ON/OFF, Zoom,Backup to U-Disk |
| Backup Mode | USB |
| HDD | |
| Interface Type | 2 SATA Interface |
| Capacity | Up to 6 TB |
| General | |
| Power Supply | DC12V |
| Consumption | ≤ 20W |
| Working Temperature | 00C~ 550C |
| Working Humidity | 10% to 90% |
| Dimensions | 405x338x135mm |
| Weight | ≤ 3Kg |
Features of the Jovision JVS XD2832 HE20K 5 in 1 32 Channel XVR
The Jovision JVS XD2832 HE20K 5 in 1 32 Channel XVR supports multiple types of analog cameras, such as AHD,TVI,CVI,CVBS,and IP cameras. This Jovision JVS XD2832 HE20K 32-channel XVR is designed to provide users with high-quality video surveillance capabilities and is ideal for use in large-scale security systems. It supports various resolutions for multiple cameras: 5 MP resolution for AHD, TVI, and CVI cameras; 960H resolution for CVBS cameras; and 8 MP resolution for IP cameras. This Jovision XVR can be viewed and managed remotely via a mobile app or web browser. The dimensions of the Jovision JVS XD2832 HE20K 32-channel XVR 2U are 440mm×465mm×90mm.
Overall, the Jovision JVS XD2832 HE20K 5 in 1 32 Channel XVR is a multiple and powerful XVR that provides users with advanced video surveillance capabilities.
What is the Price of the Jovision JVS XD2832 HE20K 5 in 1 32 Channel XVR in Bangladesh ?
The latest price of the Jovision JVS XD2832 HE20K 5 in 1 32 Channel XVR is 20500 BDT. You can buy the Jovision JVS-XD2832-HE20K 32CH 5-in-1 XVR from us at the best price. You can either buy it through our website or directly visit our office.
