Specification of the HIKVISION DS-7116HQHI-K1 16 Channel 1080p DVR
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | Hikvision DS-7116HQHI-K1 |
| Type | Turbo HD DVR |
| Video Input Channel (BNC) | 16-channel, BNC Interface (1.0Vp-p, 75 omega) |
| Video Compression/Format | H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264 |
| Video Output (VGA) | 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) | 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. | 4MP, 3MP, 1080p, 720p, VGA, WD1, 4CIF, CIF |
| Max. Video Recording Res. | 1080p |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| IP Video Input | 2-channel (up to 18-ch) |
| Analog & HD-TVI Video Input | 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 |
| Audio Input Channel (RCA) | 1-channel, RCA (2.0 Vp-p, 1K omega) |
| Audio Compression | G.711u |
| Audio Output Channel | 1-channel, RCA (Linear, 1K omega) |
| Two way Audio | 1-channel, RCA (2.0 Vp-p, 1K omega) |
| Audio Bit Rate | 64 Kbps |
| Frame Rate | Main stream: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF 15fps, 1080p/720p 15fps; VGA/WD1/4CIF/CIF 25fps (P)/30fps (N), 720p/VGA/WD1/4CIF/CIF 25fps (P)/30fps (N) |
| Stream Type | Video/Video & Audio |
| Dual Stream Support | Yes |
| Live View / Playback Resolution | 3 MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF |
| Synchronous Playback | 16-channel |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB,TB) | Up to 6TB capacity for each disk |
| Max. Storage Support | 6TB |
| eSATA | No |
| Network Interface (RJ45) | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Serial Interface | No |
| USB Port | 2 x USB2.0 |
| Remote Connections | 128 |
| CVBS Input | Yes |
| Incoming Bandwidth | 96 Mbps |
| Outgoing Bandwidth | 128 Mbps |
| Chassis | Mini 1U chassis |
| Power Supply | 12 VDC, 1.9 A |
| Approx. Power Consumption | <-15 W |
| Dimensions | 285 x 210 x 45mm |
| Weight (Kg) | <-1 kg |
| Feature | H.265 Pro+/H.265 Pro/H.265 video compression, HDTVI/AHD/CVI/CVBS/IP video input, Audio via coaxial cable, Up to 6/12/24-ch IP camera inputs |

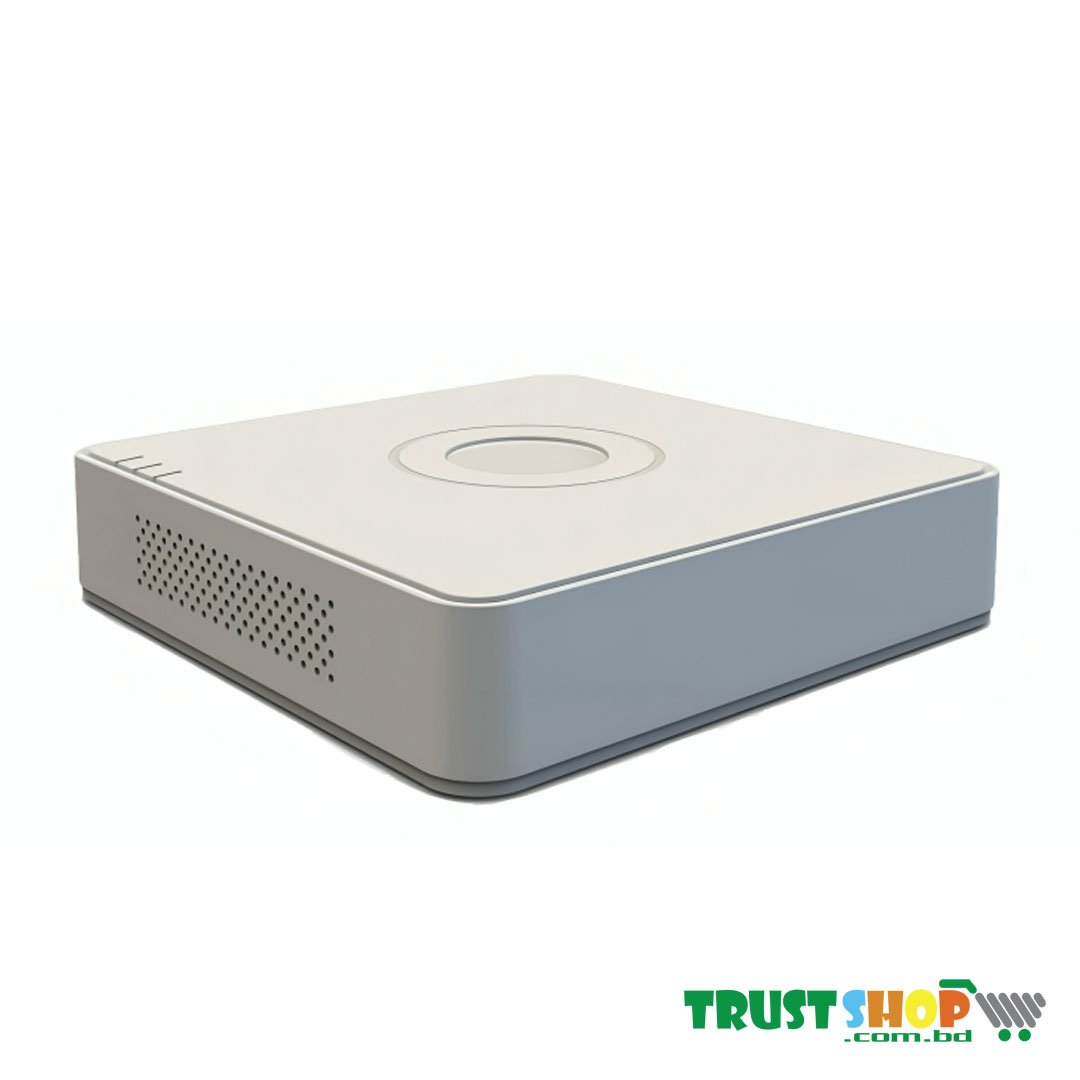

HIKVISION DS-7116HQHI-K1 16 Channel 1080p DVR
The HIKVISION DS-7116HQHI-K1 16 Channel 1080p DVR is the model number. 16 channels and a little HDD H.265 pro+ compression technology for DVR Up to 1080p At 15 frames per second can be encoded. Adaptive input of 5 signals (HDTVI/AHD/CVI/CVBS/IP) It is possible to connect up to 24 network cameras.It has a 01 year warranty. this DVR provide techlink.com.bd
What is the price of the HIKVISION DS-7116HQHI-K1 16 Channel 1080p DVR in Bangladesh ?
The latest price of the HIKVISION DS-7116HQHI-K1 16 Channel 1080p DVR Price in Bangladesh is 8,950 BDT. You can buy a DS-7116HQHI-K1 16 Channel 1080p DVR from us. To buy this product, you can either buy it through our website or come directly to our office.
