Description

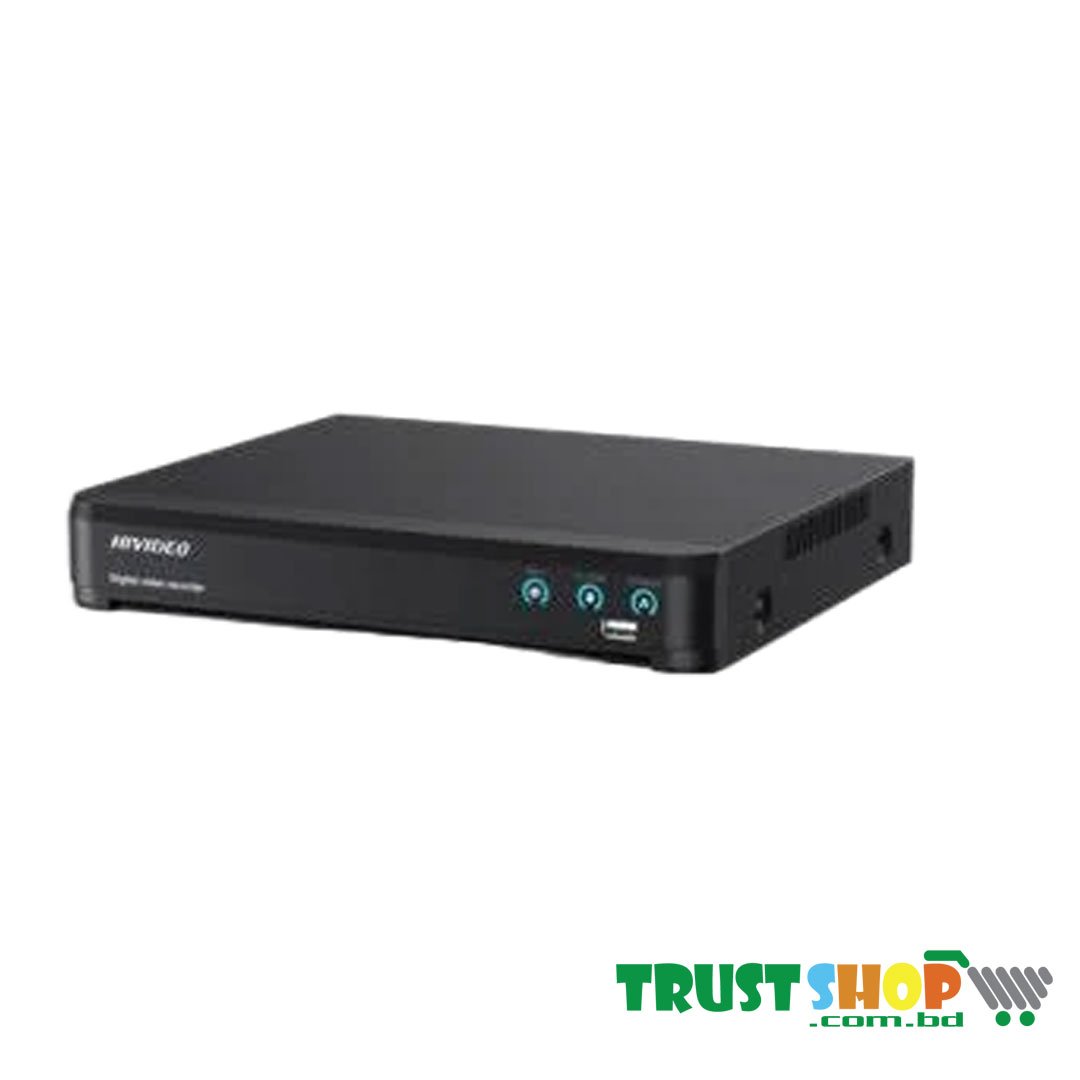

Hivideo HI-6016A 16 Channel 5MP XVR Support all Technology
| Hivideo HI-6016A 16 Channel 5MP XVR 5 in 1 HiVR product solution, supports HD analog video coding, HD analog + HD network video input, and pure HD network video input
Ø Support VGA、HDMI output; Ø Support a variety of cloud technologies, realize network penetration for camera and DVR docking, and support the functions of pushing alarm information to mobile phones Ø Support remote access, DDNS to realize one‐key remote monitoring; Ø With UTC function, camera menu parameters can be adjusted via UTC function； Ø Support H.264/H.265(HEVC) IP camera Ø Support IP camera address modifying in bulk, and camera device added remotely； Ø Support AHD/TVI/CVI/CVBS/IP 5‐in‐1 and self‐recognition Ø Can connect with mainstream IP camera brands in the market(private protocol or Onvif)； Ø Support other third‐party products based on ONVIF2.4 (IP mode)； Ø Support VGA、HDMI simultaneous display，Max resolution is up to HDMI 1080P. Ø Record playback can be shown by time, record type showed by color, to search and retrieve conveniently and efficiently； Ø Record backup can be arranged according to the time and duration, accurate to seconds； Ø Preview screen can be exchanged randomly. Picture position changed without physical address changing, it’s convenient for construction Ø Support multiple languages Ø Provide mating Web、CMS SDK service； Ø Support multiple playback modes: fast forward, slow playback, fast reverse, etc. Max 16 times fast forward or fast reverse Ø Support WEB、VMS, support android/IOS mobile system Ø Support P2P，QR code scanning, and playback via APP Ø Hivideo HI-6016A 16 Channel 5MP XVR Support TVI coaxial audio input, and also AHD coaxial audio input. |
||
| Model: HI‐6016A | ||
|
APP |
|
Neutral APP: HIPLUS Band APP: HIVIDEO |
| Specification | ||
|
System |
Main processor | MC6630 |
| Operation system | Embedded LINUX operation system | |
|
System resources |
Multichannel real time record | |
| Multichannel real time playback | ||
| multichannel multi‐user on network operation | ||
|
Interface |
Operation system | graphic menu operation interface, support mouse to operate |
| Image display | 1/4/6/9/16 screen | |
|
Language |
English, traditional Chinese, simplified Chinese, Japanese, Russian, German, Italian, Turkish, polish, Spanish, Korean, Indonesian, Thai, Arabic, Persian, Vietnamese, French,
Portuguese, Greek, Czech |
|
|
|
Image coding | H.264/H.265 |
| Surveillance quality | VGA(Max 1080P)；HDMI(Max 1080P), CVBS optional | |
| Preview | 16*5MN@12fps/16*4MN@15fps/16*1080P@30fps | |
| Code capacity | 16*5MN@5fps/16*4MN@8fps/16*1080N@15fps | |
| Decode capacity | 4*5MN@5fps/16*D1@12fps | |
|
Various mode input |
Coaxial: 16*5MP‐N | |
| Mixed: 4MP‐N(coaxial)+1080P (IP) Arbitrary combination for coaxial and IP hybrid mode | ||
| IP: 8*5MP, 16*5MP for all IP mode | ||
| Recognize method | Automatic Identification、All AHD、All TVI、All CVI、
Customized |
|
|
Motion detection |
192（16*12） testing areas can be set for each image； | |
| can set multi‐sensitivity (only for local channel and P6S IP
camera) |
||
|
Audio |
Audio compression | G.711U |
| Audio output | HDMI, support extended audio output. | |
| Audio Input | Can extend to 4ch audio In. | |
| intercom | Support extend audio in and out intercom | |
| coaxial audio | Support 16ch coaxial audio | |
|
Record & Playback |
Video mode | manual>alarm>dynamic testing>timing |
|
Local playback |
16CH (5MP‐N coaxial input) | |
| 16CH (Coaxial or Hybrid mode); | ||
| 16ch IP mode | ||
|
Record retrieval |
Time retrieval, event retrieval, Timeline retrieval, channel
retrieval、Face playback, Intelligent playback(Motion detection playback) |
|
|
Storage& Backup |
Occupation |
1080P 10‐15G/day*channel; 720P 10G/day*channel; 960H 6‐ 10G/day*channel; Audio:691.2M/day*channel |
| Record storage | Local hard disk; network | |
| Backup mode | Network backup、USB , SATA record |
|
VMS |
Type | IE/mobile/VMS |
| P2P | Support(IOS, Android, PC) | |
|
APP |
Multi‐screen surveillance; audio surveillance; mobile record; snap; pan‐tile control; remote record playback | |
|
UTC |
Camera OSD control | Support |
| Pan‐tilt control | Don’t support | |
| 3D‐NR | Support auto/manual setting for noise reduction parameters | |
|
Port |
Video input | 16ch BNC; support coaxial audio in |
| Video output | 1ch VGA，1ch HDMI; 1ch TV output(Optional) | |
| Audio output | HDMI output | |
| Network port | RJ45 10M/100M Self‐adapt to Ethernet interface | |
| USB port | 2 USB 2.0 port | |
| HDD port | 1 SATA Port（Can support 8T HDD） | |
| Wifi port | NO | |
| Remote control | Optional | |
|
Others |
Power | 12V/2A（Sufficient amperes） |
| Consumption | < 15W（exclusive hard disk） | |
| Temperature | ‐5 °C~ +55 °C | |
| Working humidity | 10%~90% | |
Hivideo HI-6016A 16 Channel 5MP XVR Support all Technology
Hivideo HI-6016A 16 Channel 5MP XVR supports all brands of analog cameras and ONVIF IP cameras. This XVR supports Coaxial audio as well as hard disks.1×6 TB
What is the price of Hivideo HI-6016A 16 Channel 5MP XVR in Bangladesh?
The latest price of Hivideo HI-6016A 16 Channel 5MP XVR in Bangladesh is 8000tk. You can buy the Hivideo HI-6016A 16 Channel 5MP XVR at the best price from our website or visit our office.
