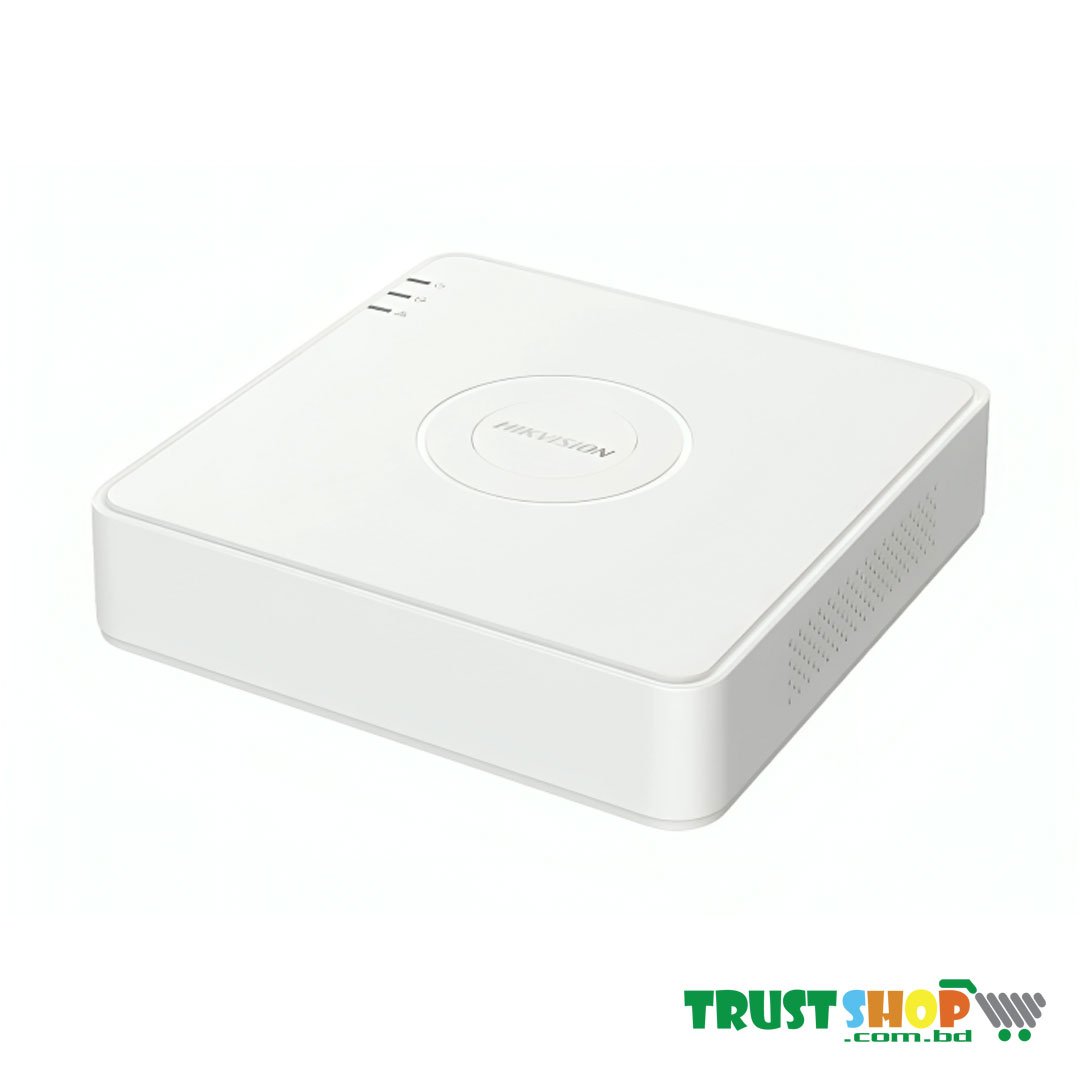

Hikvision IDS-7116HQHI-M1/S 16-channel DVR

0
(0)
0 53
14,200 13,774
-3%
In Stock

Description

Specification of the Hikvision IDS-7116HQHI-M1/S 16-channel DVR is efficient H.265 pro+ compression technology

Feature Specification
Brand Hikvision
Model Hikvision iDS-7116HQHI-M1-S
Type DVR
Video Input Channel (BNC) 16 Channel BNC
Video Compression/Format H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video Output (VGA) 1 channel, Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output (HDMI) 1 channel., Resolution: 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output (BNC) 16 channel BNC interface (1.0 Vp-p, 75 ohm), supporting coaxitron connection
Video Recording Res. 1920 x 1080
Max. Video Recording Res. 2160p (3840 x 2160)
Video Bit Rate 32 Kbps to 6 Mbps
IP Video Input 2-ch (up to 18-ch), Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps, Up to 6 MP resolution (Support H.265+/H.265/H.264+/H.264 IP cameras)
Analog & HD-TVI Video Input 3K@20 fps, 5 MP@20 fps, 4 MP@30 fps, 4 MP@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Input Channel (RCA) 1 Channel, RCA (2.0 Vp-p, 1 K ohm)
Audio Compression G.711u
Audio Output Channel 1 Channel, RCA (Linear, 1 K ohm)
Two-way Audio 1 channel Input, RCA (2.0 Vp-p, 1 K ohm)
Audio Bit Rate 64 Kbps
Frame Rate Variable based on stream type and 1080p Lite mode (see details in original text)
Stream Type Main Stream, Sub stream
Dual Stream Support Yes
Synchronous Playback 16 Channel
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Number HDD Interface (SATA) 1 SATA
Max HDD Support (GB,TB) 10 TB
Max. Storage Support 10TB
eSATA No
Network Interface (RJ45) 1 RJ-45 10 /100 /1000Mbps
USB Port 2 x USB 2.0
POE Interface No
Remote Connections 128
CVBS Input Yes
Incoming Bandwidth 96Mbps
Outgoing Bandwidth 96Mbps
Video Detection Motion detection
Power Supply 12 VDC, 1.9 A
Approx. Power Consumption <=15 W
Max. Power 15 W
Dimensions 285 x 210 x 45mm
Weight (Kg) 1 kg
Feature Support multiple VCA (Video Content Analytics) events, 4-ch line crossing/intrusion detection, H.265 Pro+, Deep learning-based motion detection 2.0, Human
