Description

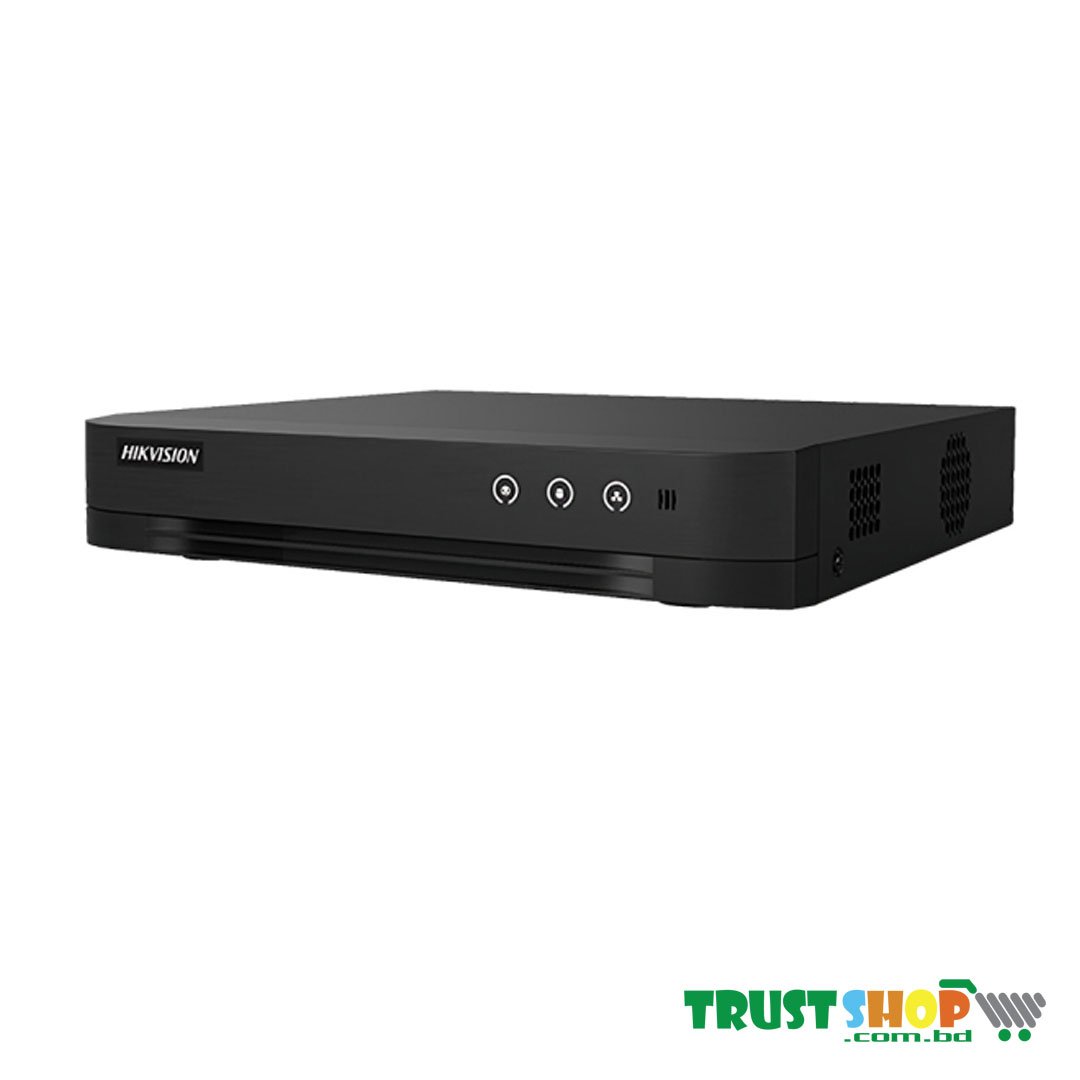

Specification of the Hikvision iDS-7204HQHI-M1-S 4-channel DVR Up to 6 network camera
Feature | Specification |
---|---|
Brand | Hikvision |
Model | Hikvision IDS-7204HQHI-M1-S |
Type | 04-Channel DVR |
Video Input Channel (BNC) | 4 Channel |
Video Compression/Format | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Video Output (VGA) | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
Video Output (HDMI) | 1 channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz, HDMI/VGA simultaneous output |
Video Recording Res. | 4MP, 3MP (variable based on stream type and 1080p Lite mode; see details in original text) |
Max. Video Recording Res. | 1080p |
Video Bit Rate | 32 Kbps to 6 Mbps |
IP Video Input | 1-channel (up to 5-channel) |
Analog & HD-TVI Video Input | Up to 4-channel |
Audio Input Channel (RCA) | 1 channel, RCA |
Audio Compression | G.711u |
Audio Output Channel | 1 Channel, RCA |
Two-way Audio | 1 Channel, RCA |
Audio Bit Rate | 64 Kbps |
Frame Rate | Variable based on stream type and 1080p Lite mode (see details in original text) |
Stream Type | Video, Video and Audio |
Dual-Stream Support | Yes |
Synchronous Playback | 4-channel |
Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF |
Number HDD Interface (SATA) | 1 SATA |
Max HDD Support (GB,TB) | Up to 10TB capacity for each disk |
Max. Storage Support | 10TB |
Network Interface (RJ45) | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Serial Interface | RS-485 (half-duplex) |
USB Port | 2 x USB 2.0 |
Remote Connections | 32 |
CVBS Input | PAL/NTSC |
Video Detection | Motion Detection 2.0 |
Power Supply | 12 VDC / 1.5 A |
Approx. Power Consumption | <-18W |
Dimensions | 315 x 242 x 45mm |
Weight (Kg) | <-1.16 kg |
Feature | Deep learning-based motion detection 2.0, perimeter protection, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression |
Others | HDTVI, AHD, and HDCVI input details in original text, CVBS output resolution: PAL: 704 x 576, NTSC: 704 x 480 |
Warranty Details | 1 year |
