| System |
OS |
Embedded Linux |
| Video |
Analog Video Input |
BNC × 16 |
| BNC interface (1.0Vp-p; 75Ω) |
| TVI/ AHD/CVI: 5MP@20fps; 4MP/ 3MP/ 1080P/ 720P/ WD1@30fps |
| IP Video Input |
8CH (up to 16CH) |
| Up to 5MP@30fps |
| Total Input |

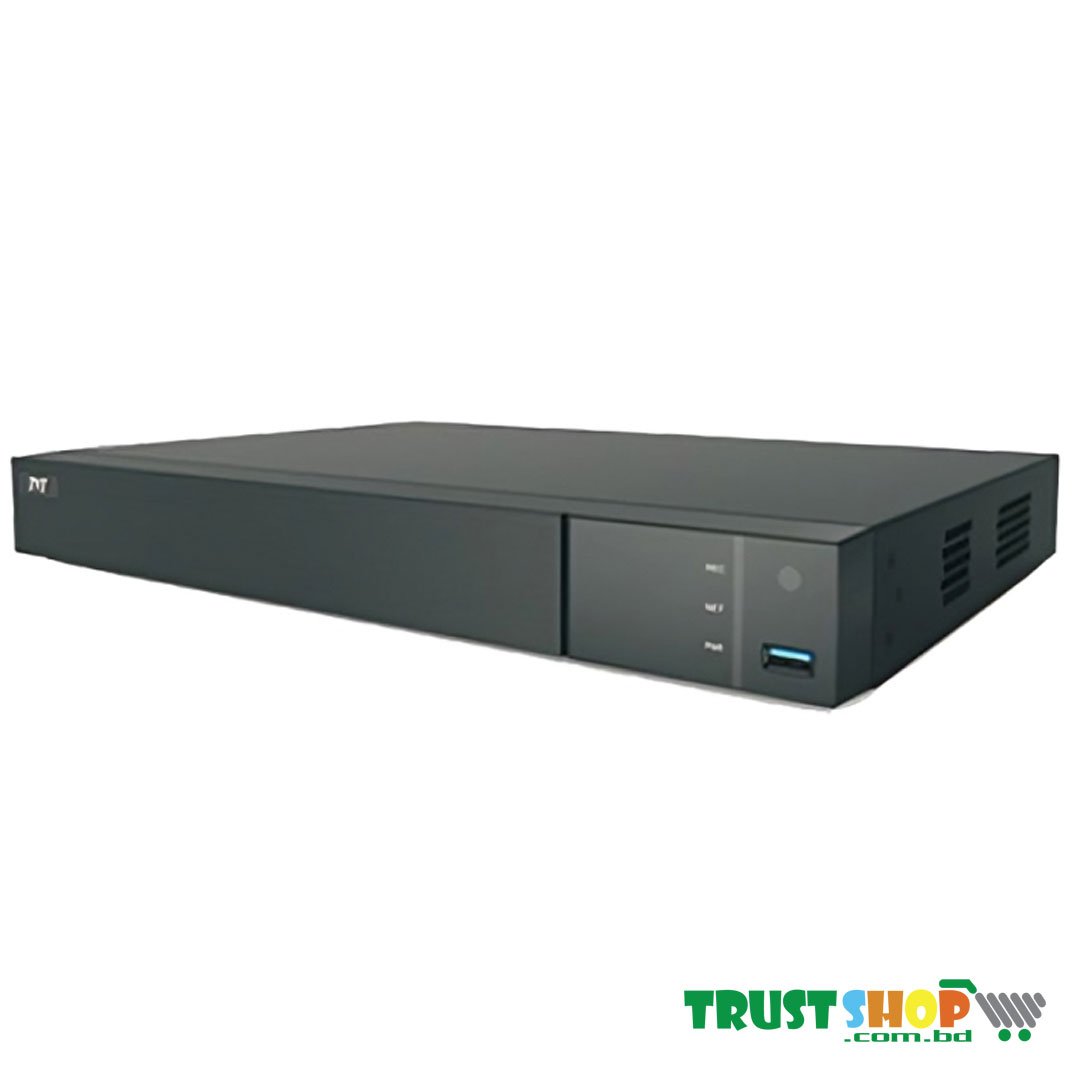

24CH TVT TD-2116NS-HC 16 Channel Hybrid DVR |
| Output |
HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| BNC × 1 : CVBS ( used as the main or spot output ) |
| Compression |
H.264/H.265 |
| Multi-screen Display |
1 /4/6/8/9/13/16/25 |
| Audio |
Input |
RCA × 1 TVT TD-2116NS-HC 16 Channel Hybrid DVR |
| Output |
RCA × 1 (linear, 600Ω) |
| Two-way audio |
Take up channel one audio input |
| Compression |
G.711(U/A) |
| Record |
Resolution |
5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1 |
| Frame Rate |
Analog Channel: |
| 5MP Lite:10fps |
| 4MP Lite/1080P:12fps(PAL)/15fps(NTSC) |
| 1080P Lite/ 720P/ WD1/D1: 25fps (PAL)/30fps (NTSC) |
| IP Channel: 25fps (PAL)/30fps (NTSC) |
| Bit Rate |
32Kbps ~ 5Mbps |
| Mode |
Manual, timer, motion, smart event |
| Playback |
Playback |
16 CH TD-2116NS-HC |
| Search |
Time slice / time / event / tag search |
| Smart Search |
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Function |
Play, pause, FF, FB, digital zoom, etc. |
| Alarm |
Mode |
Manual, motion, exception, smart event |
| Input |
No |
| Output |
No TVT TD-2116NS-HC 16 Channel Hybrid DVR |
| Network |
Interface |
RJ 45 100Mbps × 1 |
| Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
| Incoming Bandwidth |
32Mbps |
| Outgoing Bandwidth |
80Mbps |
| Client Connection |
Max. 10 users access |
| Mobile Device |
OS |
iOS, Andriod |
| Storage |
HDD |
SATA × 1, up to 10TB |
| Backup |
Local Backup |
U disk, USB mobile HDD |
| Network Backup |
Yes |
| Port |
RS 485 |
RS 485 × 1 (half-duplex) |
| USB |
USB 2.0 × 2 ( in the rear panel ) |
| Remote Controller |
Optional |
| Others |
Power Supply |
DC12V / 3A |
| Consumption |
≤10W(without HDD ) |
| Dimensions(mm) |
255× 234× 42 ( W × D × H ) |
| Working Environment |
-10~50°C, 10%~90% (humidity) |
| Certificate |
CE, FCC TVT TD-2116NS-HC 16 Channel Hybrid DVR |
| Environmental Protection |
Comply with Directive EU RoHS, WEEE, REACH |
