Description

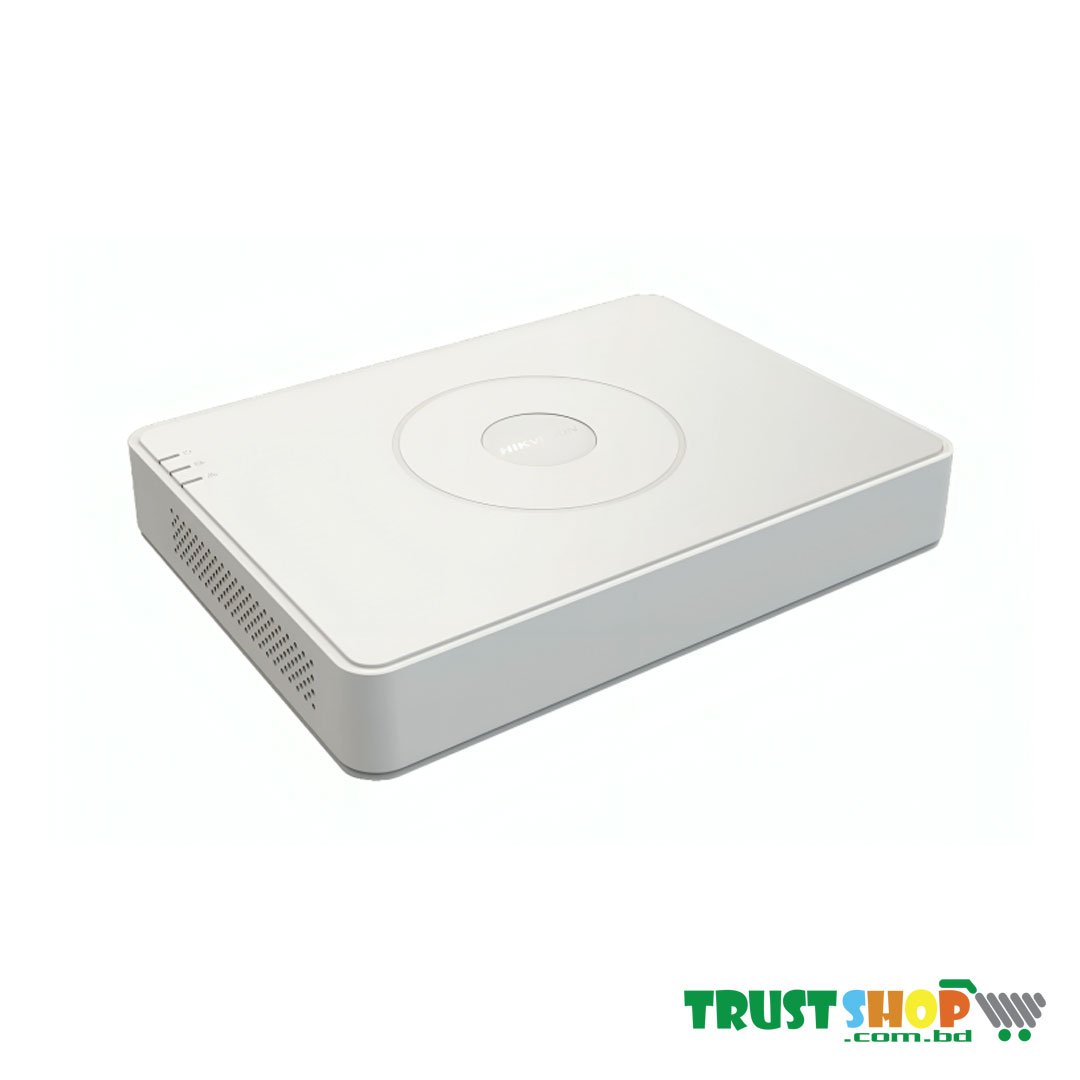

Specification of the Hikvision DS-7116HGHI-K1 16 Channel 1080p Mini 1U Lite H.264 DVR
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | DS-7116HGHI-K1 |
| Type | 16 Channel DVR |
| Video Input Channel (BNC) | 16-ch BNC interface (1.0 Vp-p, 75 Ω) |
| Video Compression/Format | H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264 |
| Video Output (VGA) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. | 1080p lite, 720p, VGA, WD1, 4CIF, CIF |
| Max. Video Recording Res. | 1080p |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| IP Video Input | 2-Channel (up to 18-ch), Up to 5MP |
| Analog & HD-TVI Video Input | 1080p25, 1080p30, 720p25, 720p30 |
| Audio Input Channel (RCA) | 1 Channel RCA |
| Audio Compression | G.711u |
| Audio Output Channel | 1 Channel, RCA |
| Two way Audio | 1-ch, RCA (2.0 Vp-p, 1K) |
| Audio Bit Rate | 64 Kbps |
| Frame Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) |
| Stream Type | Video, Video & Audio |
| Dual Stream Support | Yes |
| Synchronous Playback | 16-ch |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB,TB) | Up to 10 TB capacity for each disk |
| Max. Storage Support | 10TB |
| Network Interface (RJ45) | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB Port | 2 x USB 2.0 |
| Remote Connections | 128 |
| CVBS Input | PAL/NTSC |
| Video Detection | Motion Detection 2.0 |
| Power Supply | 12 VDC, 1.6 A |
| Approx. Power Consumption | 7 W |
| Dimensions | 285 x 210 x 45mm |
| Weight (Kg) | 1.8 kg |
| Feature | 16 channels and 1 HDD mini size DVR, H.265 Pro+ / H.265 Pro video compression, Encoding ability up to 1080p lite 15 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 18 network cameras can be connected |
| Others | Total Bandwidth: 96 Mbps, Working Temperature -10 degree C to 55 degree C (14 °F to 131 ° |
Hikvision DS-7116HGHI-K1 16 Channel 1080p Mini 1U Lite H.264 DVR
The Hikvision DS-7116HGHI-K1 16-Channel 1080p Mini 1U Lite H.264 DVR Video Compression H.265 265 pro. It has 1080 lite 15 fps encoding capability. HDTVI/ AHD/ CVI/ CVBS/ IP are supported as adaptive input signals. Max 6/12/24 cameras in put: max 800 for 1080 or 1200 for 720 signals transmission. up to 6 TB of capacity HDD and 18 network cameras can be connected to the DVR. it has a 1-year warranty.
What is the price of the Hikvision DS-7116HGHI-K1 16 Channel 1080p Mini 1U Lite H.264 DVR in Bangladesh ?
The latest price of the Hikvision DS-7116HGHI-K1 16 Channel 1080p Mini 1U Lite H.264 DVR Price in Bangladesh is 6,850 BDT. You can buy a Hikvision DS-7116HGHI-K1 16 Channel 1080p Mini 1U Lite H.264 DVR from us. To buy this product, you can either buy it through our website or come directly to our office.
| Shipping Cost |
|
| Shop Location | Dhaka, Dhaka, Bangladesh |
