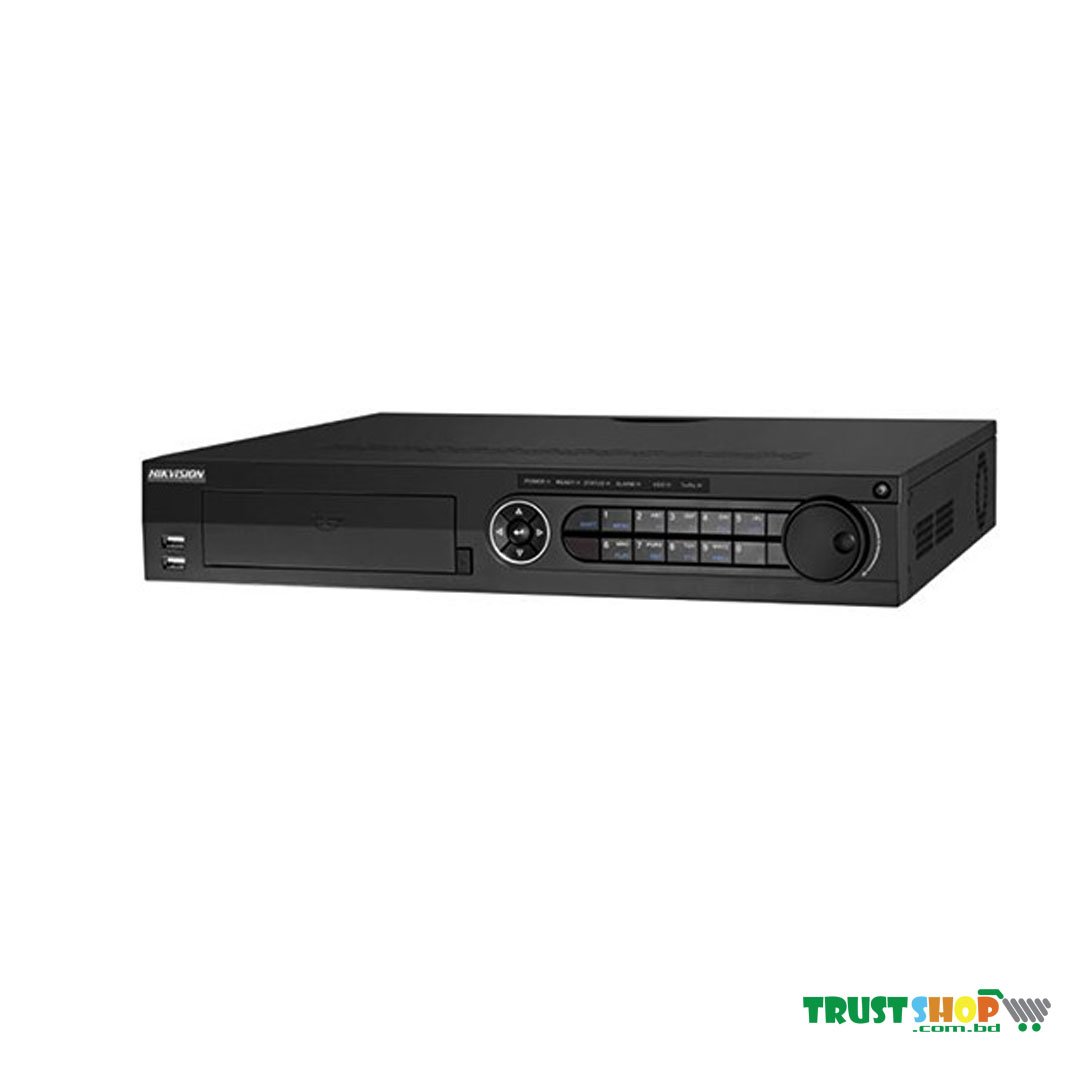

Specification of the Hikvision DS-7332HQHI-K4 32-channel DVR Dual-Stream Support
| Recording | |
|---|---|
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | When 1080p Lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled, 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame Rate | Main stream:
When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode is enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bit rate | 32 Kbps to 6 Mbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Video And Audio | |
|---|---|
| IP Video Input | 16-ch (up to 48-ch)Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 32-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60*: The 3 MP signal input is only available for channels 1/2/3/4. |
| AHD Input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, and 720p30 |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI 1 Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hzz |
| HDMI 2 Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA/HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio Input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) |
| Synchronous Playback | 16-ch |
| Network | |
|---|---|
| Remote Connection | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF, and SNMP |
| Network Interface | 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary Interface | |
|---|---|
| SATA | 4 SATA interfaces |
| ESATA | Support |
| Alarm In/Out | 16/4 |
| Capacity | Up to 10 TB capacity for each disk |
| Serial Interface | RS-232, RS-485 (full-duplex), Keyboard |
| USB Interface | Front panel: 2 × USB 2.0Rear panel: 1 × USB 3.0 |
| General | |
|---|---|
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 45 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) ≤ 7 kg (15.4 lb., without HDD) |
