Description

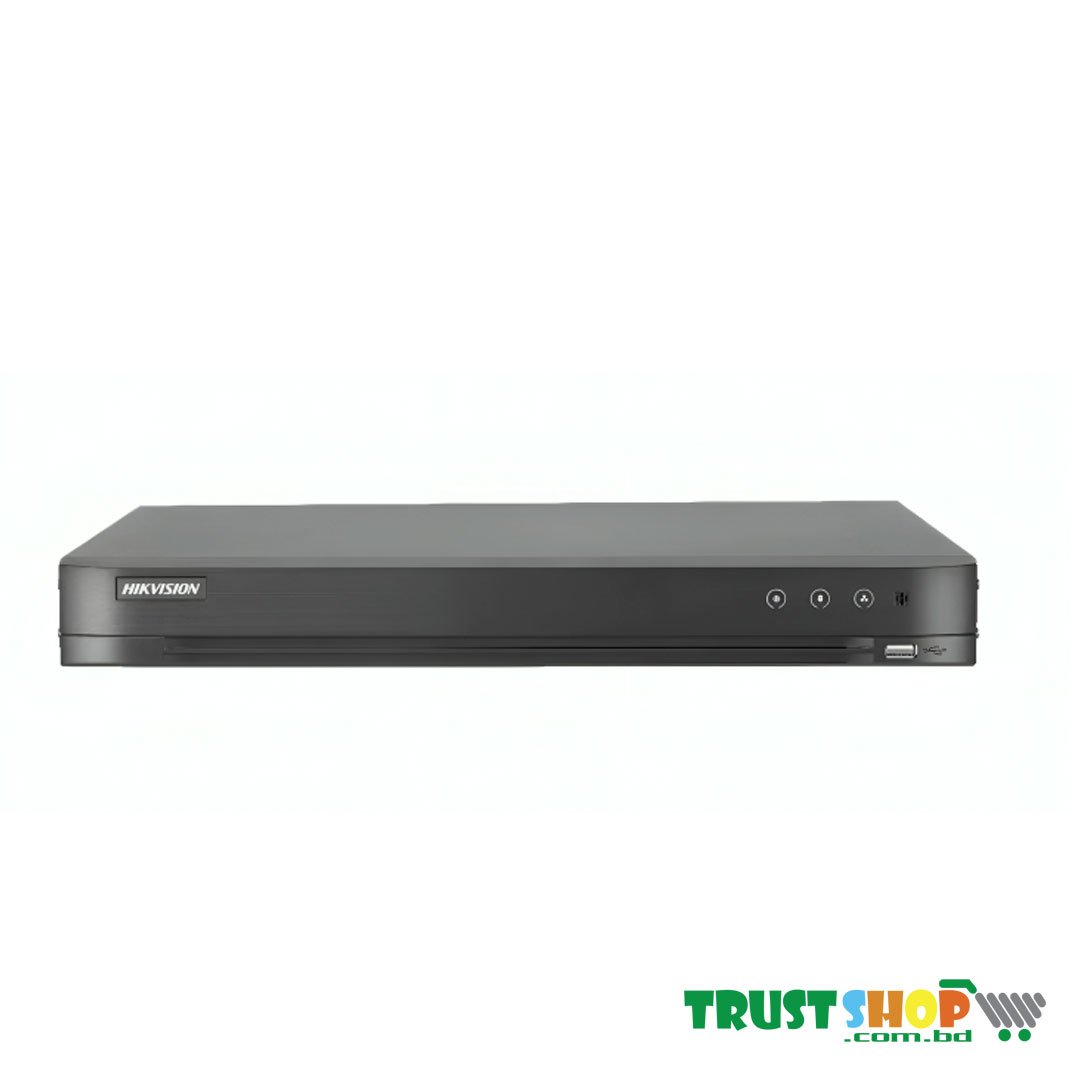

Specification of the Hikvision DS-7232HGHI-K2 32 Channel 1080p Lite 1U H.265 DVR
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | Hikvision DS-7232HGHI-K2 |
| Type | TURBO HD DVR |
| Video Input Channel (BNC) | 32-channel, BNC Interface (1.0Vp-p, 75) |
| Video Compression/Format | H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264 |
| Video Output (VGA) | 1-Channel Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) | 1-Channel Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. | 1080p, 720p, VGA, WD1, 4CIF, CIF |
| Max. Video Recording Res. | 1080p |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| IP Video Input | 2-channel (up to 18-ch) |
| Analog & HD-TVI Video Input | 1080p25, 1080p30, 720p25, 720p30 |
| Audio Input Channel (RCA) | 1-channel: RCA (2.0 Vp-p, 1 K omega) |
| Audio Compression | G.711u |
| Audio Output Channel | 1-channel: RCA (Linear, 1 K omega) |
| Two way Audio | 1-channel: RCA (2.0 Vp-p, 1 K omega) |
| Audio Bit Rate | 64Kbps |
| Frame Rate | For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA 15fps; CIF 25fps (P)/30fps (N), For 720p stream access: 720p/WD1/4CIF/VGA 15fps; CIF 25fps (P)/30fps (N), For standard definition stream access: WD1/4CIF/VGA/CIF 25fps (P)/30fps (N) |
| Stream Type | Video, Video & Audio |
| Dual Stream Support | Yes |
| Synchronous Playback | 16-channel |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number HDD Interface (SATA) | 2 SATA |
| Max HDD Support (GB,TB) | Up to 10 TB capacity for each disk |
| Max. Storage Support | 20TB |
| Network Interface (RJ45) | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB Port | Front panel: 1 x USB 2.0, Rear panel: 1 x USB 3.0 |
| Remote Connections | 128 |
| CVBS Input | PAL/NTSC |
| Power Supply | 12 VDC |
| Approx. Power Consumption | <-18 W |
| Dimensions | 380 x 320 x 48 mm |
| Weight (Kg) | <-2.2 kg |
| Feature | Support H.265 Pro+/H.265 Pro/H.265 video compression, Support HDTVI/AHD/CVI/CVBS/IP video input, Up to 18-ch IP camera input (up to 5 MP), Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission, Up to 10 TB capacity per HDD |
| Others | 32- |
The hikvision DS-7232HGHI-K2 is the model number. 2 HDDs and 32 channels H.265 pro+ compression technique in a 1U DVR Up to 1080p light @ 15 frames per second can be encoded.
Adaptive input of 5 signals (HDTVI/AHD/CVI/CVBS/IP) It is possible to connect up to 18 network cameras. techlink.com.bd provides the best hikvision products in Bangladesh.
What is the price of the Hikvision DS-7232HGHI-K2 32 Channel 1080p Lite 1U H.265 DVR in Bangladesh ?
The latest price of the Hikvision DS-7232HGHI-K2 32 Channel 1080p Lite 1U H.265 DVR Price in Bangladesh is 19,950 BDT. You can buy a DS-7232HGHI-K2 32 Channel 1080p Lite 1U H.265 DVR from us. To buy this product, you can either buy it through our website or come directly to our office.
