Description
Specification of the Hikvision iDS-7216HQHI-M1-FA 16-ch 1080p DVR
| Feature | Specification |
|---|---|
| IP Video Input | 2-ch (up to 18-ch), Enhanced IP mode: 8-ch (up to 24-ch), each up to 4 Mbps, Up to 6 MP resolution, Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps |
| AHD Input | 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
| HDCVI Input | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
| Audio Input | 1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 16-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Synchronous Playback | 16-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | See details in original text for resolution and frame rate options |
| Video Bitrate | 32 Kbps to 6 Mbps |
| Dual-Stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Network Interface | 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
| SATA | 1 SATA interface, up to 10 TB capacity for each disk |
| Serial Interface | RS-485 (half-duplex) |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | N/A (optional to support) |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤ 2 kg (4.4 lb) |
| Power Supply | 12 VDC, 2 A |

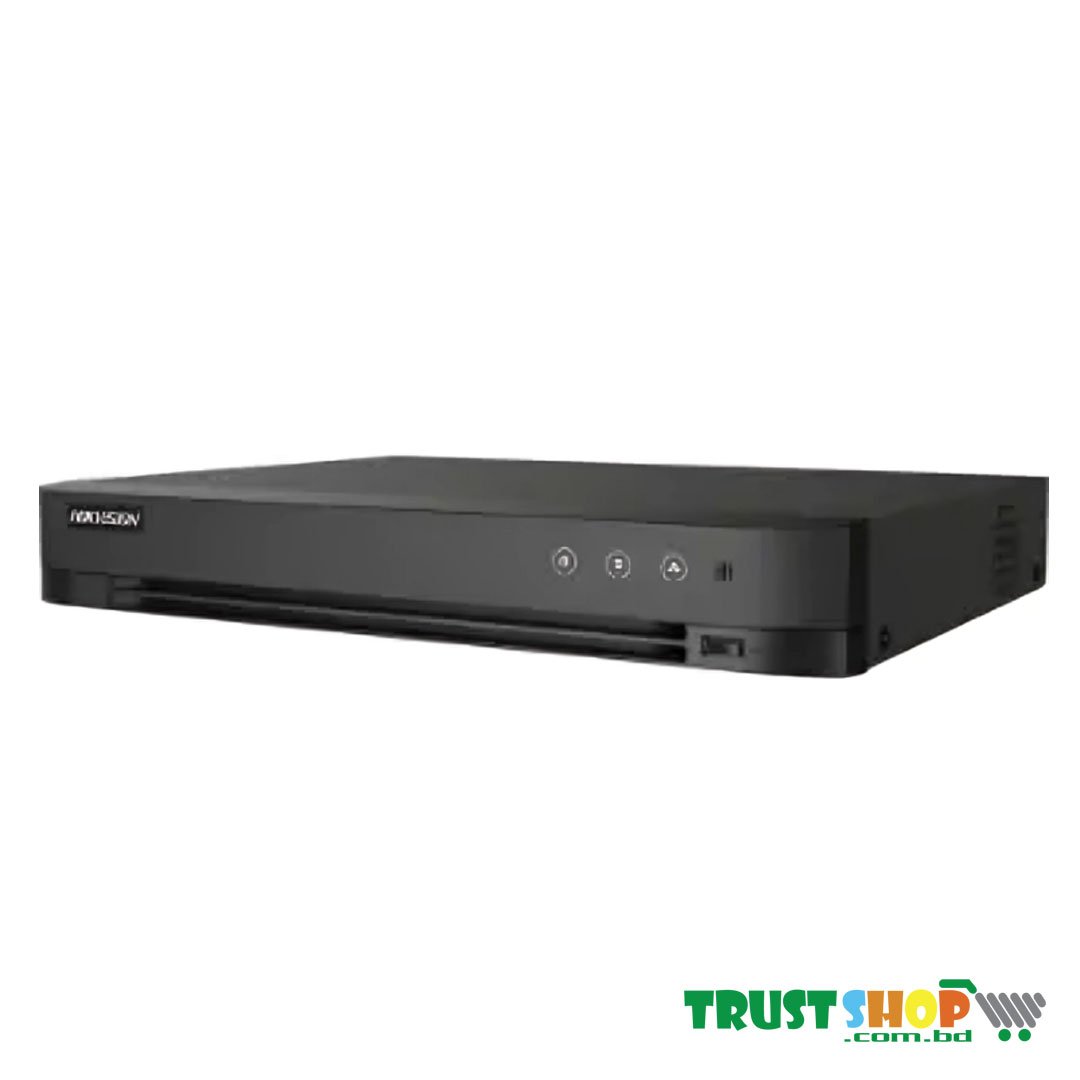

Hikvision iDS-7216HQHI-M1-FA 16-ch 1080p DVR
The Hikvision iDS-7216HQHI-M1-FA 16-ch 1080p DVR is connectable to HD-TVI and analog cameras. It supports HDMI output and VGA output. It can serve up to 720×1080P resolution. It features one SATA interface. It supports access through EZVIZ Cloud P2P. It supports H.265 Pro+ compression technology. It video compression H.265+/H.265/H.264+/H.264. This 16 channel DVR is conectable 16 IP cameras, Up to 4 MP lite resolution for recording, HDMI output at up to 4K, 2 SATA interfaces, Support access by EZVIZ Cloud P2P; support DDNS. It has a 1-year warranty.
What is the price of the Hikvision iDS-7216HQHI-M1-FA 16-ch 1080p DVR in Bangladesh ?
The latest price of the Hikvision iDS-7216HQHI-M1-FA 16-ch 1080p DVR Price in Bangladesh is 12,800 BDT. You can buy a Hikvision iDS-7216HQHI-M1-FA 16-ch 1080p DVR from us. To buy this product, you can either buy it through our website or come directly to our office.
