Description

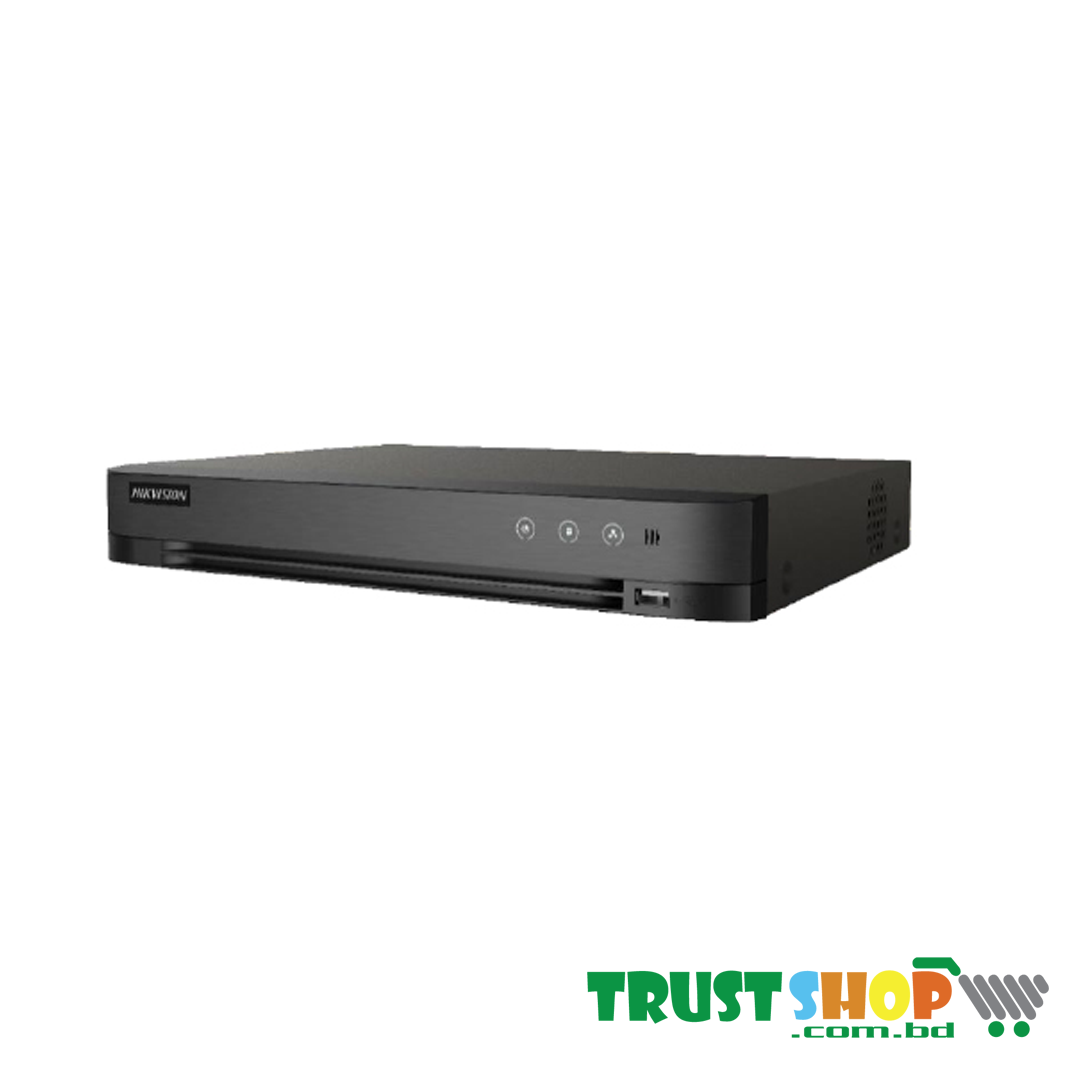

Hikvision iDS-7208HQHI-M2-S 8-channel DVR Support 1080p
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | Hikvision iDS-7208HQHI-M2/S |
| Type | DVR |
| Video Input Channel (BNC) | 8-ch |
| Video Compression/Format | H.265 Pro+/H.265 Pro/H.265 Pro/H.265/H.264+/H.264 |
| Video Output (VGA) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (BNC) | 1-ch |
| Video Recording Resolution | Variable based on stream type and 1080p Lite mode (see details in original text) |
| Max. Video Recording Resolution | 1080p |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| IP Video Input | 2-ch (up to 10-ch) |
| Analog & HD-TVI Video Input | 8-ch |
| Audio Input Channel (RCA) | 1-ch, RCA (2.0 Vp-p, 1 K ohm), 8-ch via coaxial cable |
| Audio Compression | G.711u |
| Audio Output Channel | 1-ch, RCA (Linear, 1 K ohm) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 K ohm) (using the first audio input) |
| Audio Bit Rate | 64 Kbps |
| Stream Type | Video, Video & Audio |
| Dual Stream Support | Yes |
| Synchronous Playback | 8 Channel |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF |
| Number HDD Interface (SATA) | 2 SATA |
| Max HDD Support (GB,TB) | Up to 10 TB capacity for each disk |
| Max. Storage Support | 10TB |
| Network Interface (RJ45) | 1 x RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Serial Interface | RS-485 (half-duplex) |
| USB Port | 1 x USB 2.0 (Front), 1 x USB 2.0 (Rear) |
| Remote Connections | 64 |
| CVBS Input | PAL/NTSC |
| Video Detection | Motion Detection |
| Power Supply | 12 VDC, 2.5 A |
| Approx. Power Consumption | <- 30 W (without HDD) |
| Dimensions | 380 x 320 x 48mm (W x D x H) |
| Weight (Kg) | 1.78 Kg (without HDD) |
| Feature | Deep learning-based motion detection 2.0, perimeter protection, H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression, HDTVI/AHD/CVI/CVBS/IP inputs, audio via coaxial cable, up to 12/24-ch IP camera inputs (up to 6 MP), up to 10 TB capacity per HDD |
| Others | HDTVI, AHD, and HDCVI input details in original text; CVBS output details in original text |
| Warranty Details | 1 year |
Hikvision iDS-7208HQHI-M2-S 8-channel DVR Support 1080p
The Hikvision iDS-7208HQHI-M2-S 8-channel DVR supports 1080p video. The Hikvision iDS-7208HQHI-M2-S 8-channel DVR provides the best quality video.
For more details, visit here.
