Description
Specification of the Hikvision DS-7108HGHI-K1 8 Channel 1080p Mini DVR
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | DS-7108HGHI-K1 |
| Type | DVR |
| Video Input Channel (BNC) | 8-ch BNC interface (1.0 Vp-p, 75 Ω) |
| Video Compression/Format | H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264 |
| Video Output (VGA) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz HDMI/VGA simultaneous output |
| Video Output (HDMI) | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz HDMI/VGA simultaneous output |
| Video Recording Res. | 1080p Lite/720p/WD1/4CIF/VGA/CIF (depending on stream access) |
| Max. Video Recording Res. | 1080p |
| Video Bit Rate | 32 Kbps – 4 Mbps |
| IP Video Input | 2-ch (up to 10-ch), Up to 5 MP resolution, H.265+/H.265/H.264+/H.264 IP cameras supported |
| Analog & HD-TVI Video Input | 8-ch, BNC interface (1.0 Vp-p, 75 Ω), coaxitron connection supported |
| Audio Input Channel (RCA) | 1 Channel, RCA (8-ch via coaxial cable) |
| Audio Compression | G.711u |
| Audio Output Channel | 1 Channel, RCA |
| Two way Audio | Reuse the first audio input |
| Audio Bit Rate | 64 Kbps |
| Frame Rate | Main stream: 15 fps for various resolutions (depending on 1080p Lite mode), Sub-stream: CIF/QVGA@25 fps (P)/30 fps (N) |
| Stream Type | Video, Video & Audio |
| Dual Stream Support | Yes |
| Synchronous Playback | 8 Channel |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB,TB) | 4TB |
| Max. Storage Support | 4TB |
| Network Interface (RJ45) | 1 x RJ45 10/100 Mbps self-adaptive Ethernet interface |
| USB Port | 2 x USB 2.0 (Rear) |
| Remote Connections | 64 |
| CVBS Input | Support |
| Video Detection | Motion Detection |
| Power Supply | 12 VDC, 1.5 A |
| Approx. Power Consumption | <- 17 W |
| Dimensions | 260 x 222 x 45mm (W x D x H) |
| Weight (Kg) | 1 kg |
| Feature | H.265 Pro+/H.265 Pro/H.265 video compression. HDTVI/AHD/CVI/CVBS/IP video input. Audio via coaxial cable. Up to 10-ch IP camera input (up to 5 MP). Encoding ability up to 1080p lite @ 25/30 fps. Max. 1200 m for 720p HDTVI signal. |
| Others | HDCVI Input: 1080p25, 1080p30, 720p25, 720p30. AHD Input: 1080p25, 1080p30, 720p25, 720p30. Encoding Resolution: 720p/WD1/4CIF/VGA/CIF (without 1080p lite |

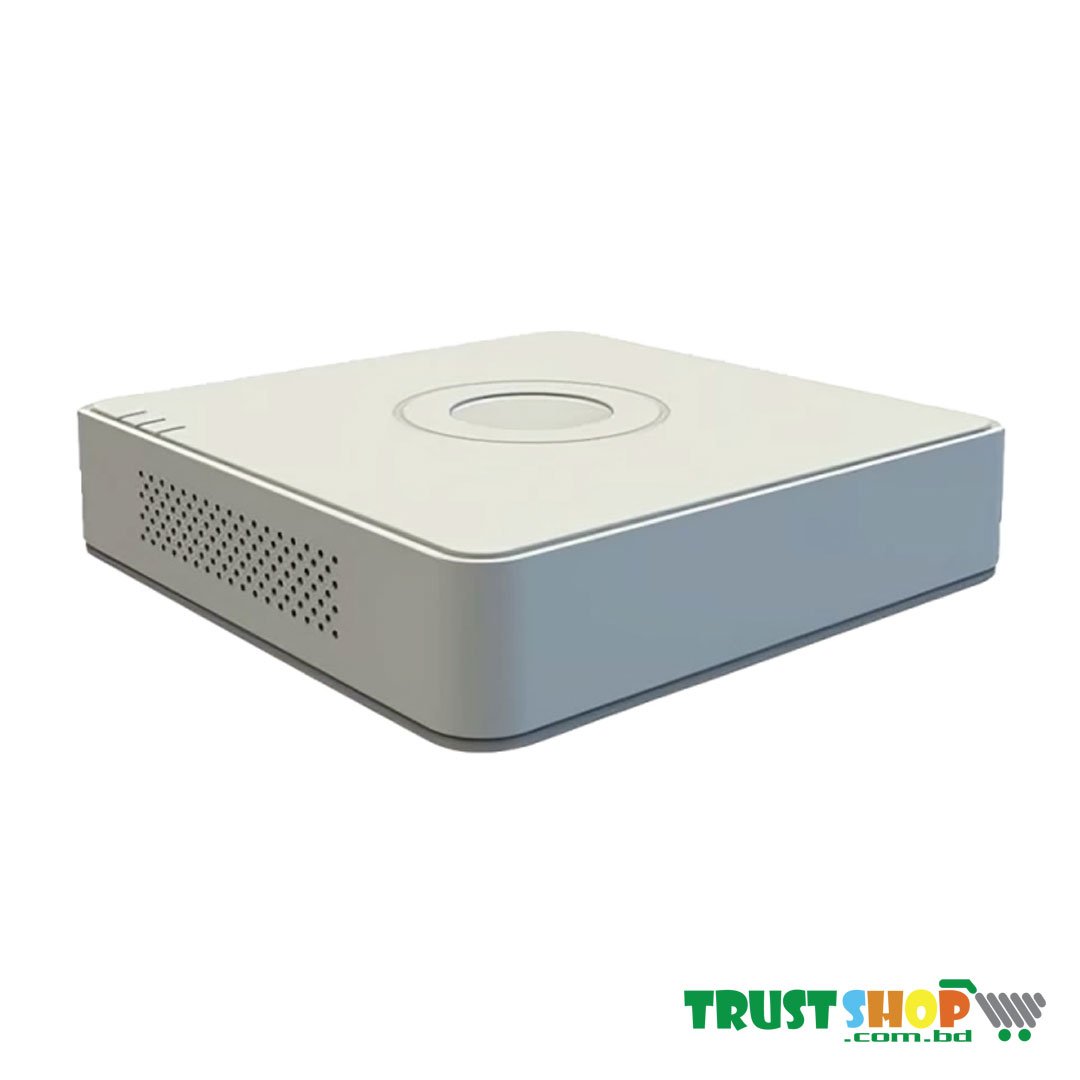

Hikvision DS-7108HGHI-K1 8 Channel 1080p Mini DVR
The Hikvision DS-7108HGHI-K1 8 Channel 1080p Mini DVR H.264 DVR video compression H. 265 pro+/H.265 pro/ H. 265. It has 1080 lite 15 fps encoding capability. HDTVI/ AHD/ CVI/ CVBS/ IP are supported as adaptive input signals. 5 cameras in total, max. 800 for 1080 or 1200 for 720 signal transmission. up to 6 TB of capacity HDD and 18 network cameras can be connected to the DVR. it has a 1-year warranty.
What is the price of the Hikvision DS-7332HQHI-K4 32-channel DVR in Bangladesh ?
The latest price of the Hikvision DS-7108HGHI-K1 8 Channel 1080p Mini DVR Price in Bangladesh is 4,450 BDT. You can buy a DS-7108HGHI-K1 8 Channel Mini DVR from us. To buy this product, you can either buy it through our website or come directly to our office.
