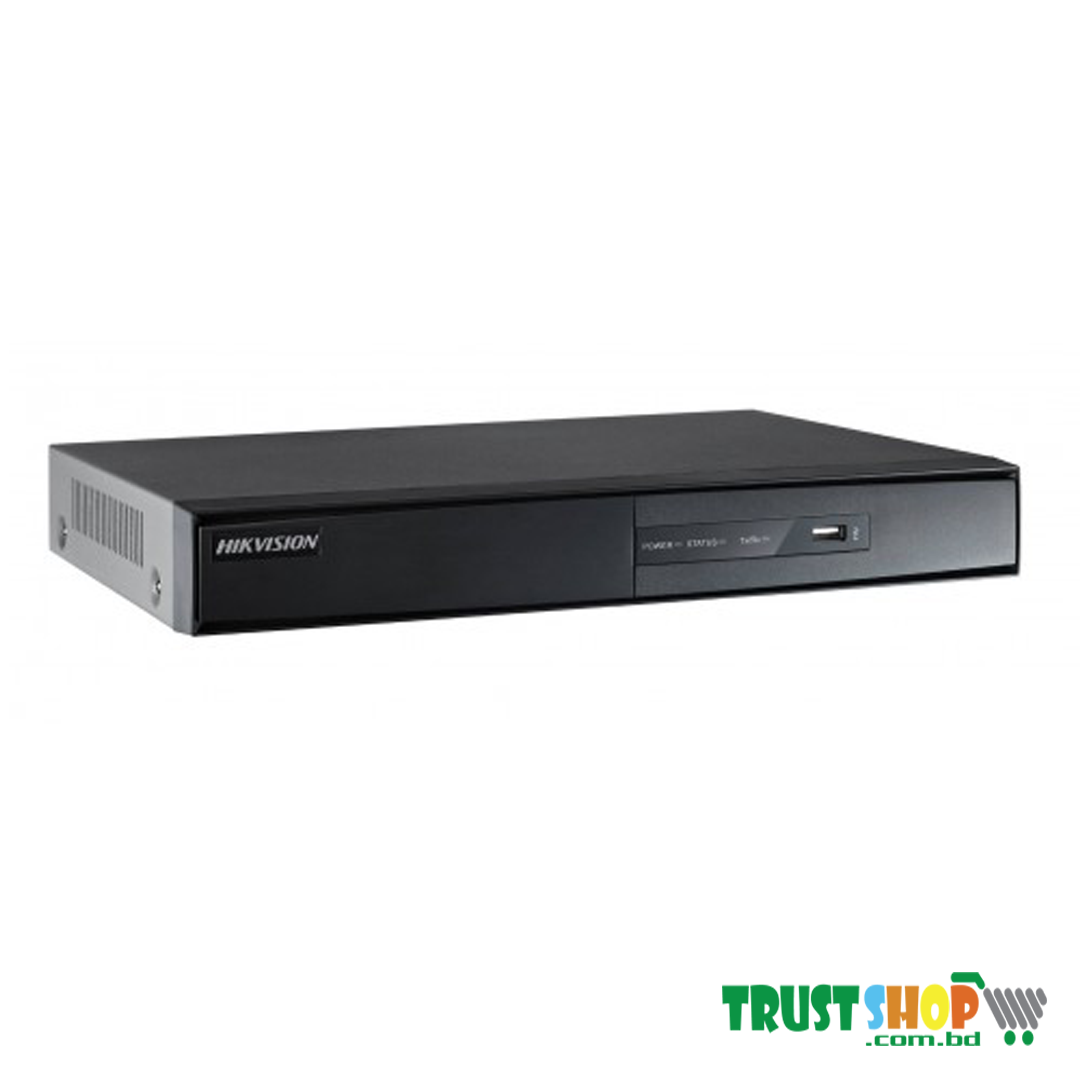

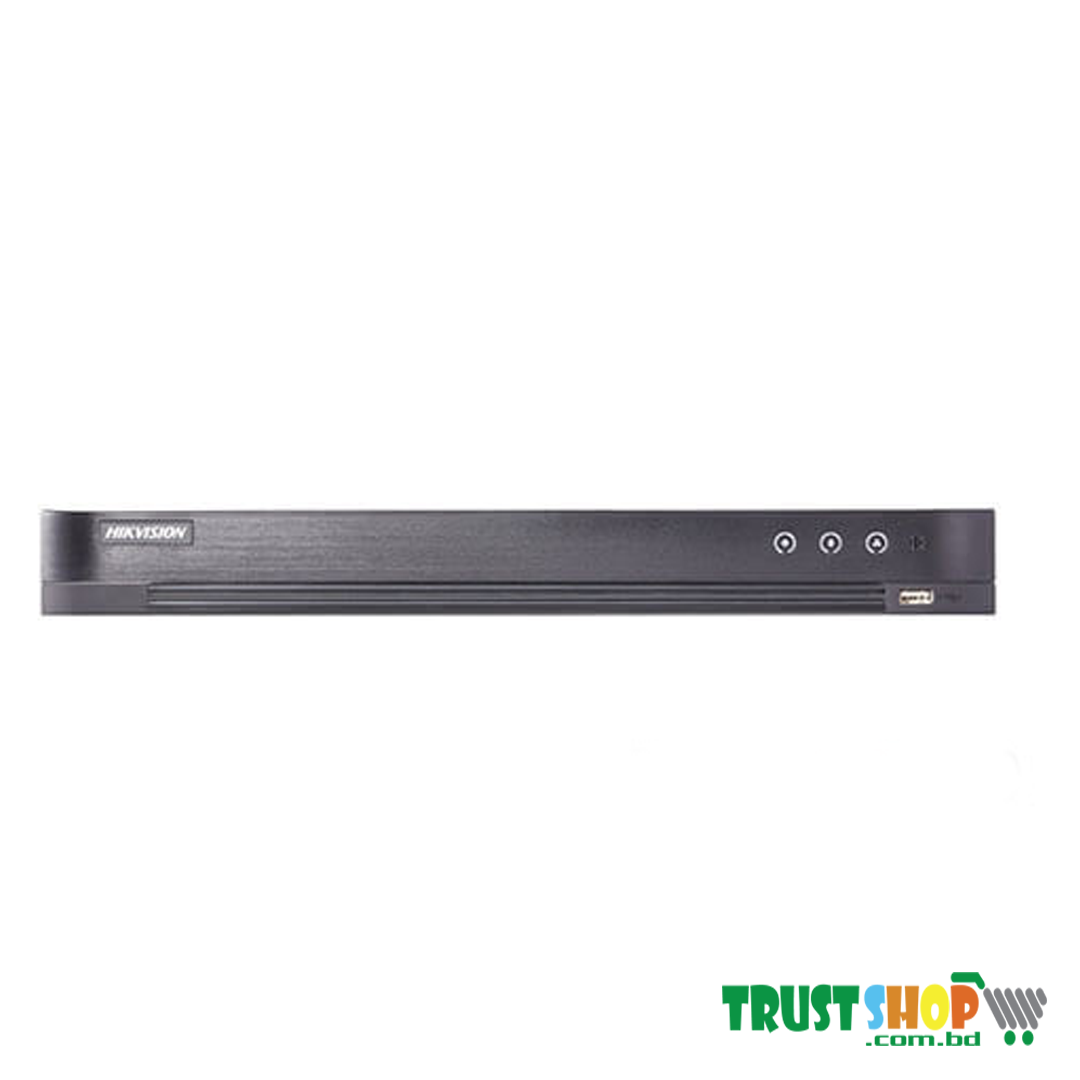

HIKVISION DS-7216HQHI-K2 16-ch 1080p 1U H.265 DVR

HIKVISION DS-7216HQHI-K2 16-ch 1080p 1U H.265 DVR

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionWhen 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
• Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
• Video Bit Rate32 Kbps to 6 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps

• Video And Audio
• IP Video Input8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback16-ch
• HDTVI Input4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2.,
• VGA/HDMI OutputVGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),
• Network
• Remote Connections128
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
• Auxiliary Interface
• SATA2 SATA interfaces
• Capacity Up to 10 TB capacity for each disk
• Alarm In/OutN/A
• USB Interface Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0,
• Serial InterfaceRS-485 (half-duplex)
• General
• Power Supply12 VDC
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Dimensions (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weights (Without HDD)≤ 2 kg (4.4 lb)
• Consumption (Without HDD)≤ 25 W

HIKVISION DS-7216HQHI-K2 16-ch 1080p 1U H.265 DVR

Full channel recording at up to 4 MP lite resolution; two SATA interfaces; intelligent search for efficient playback; third-party cloud storage support; support for multiple VCA (Video Content Analytics) events for both analog and smart IP cameras; support for four-ch line crossing detection and intrusion detection; The HIKVISION DS-7216HQHI-K2 can detect sudden scene changes in one channel. Max. Hik-Connect and the Dynamic Domain Name System (DDNS) for simple network management Limits for the incoming bandwidth and output bandwidth are configurable at 48 and 96 Mbps. For more descriptions, visit hikvision.com
