Description

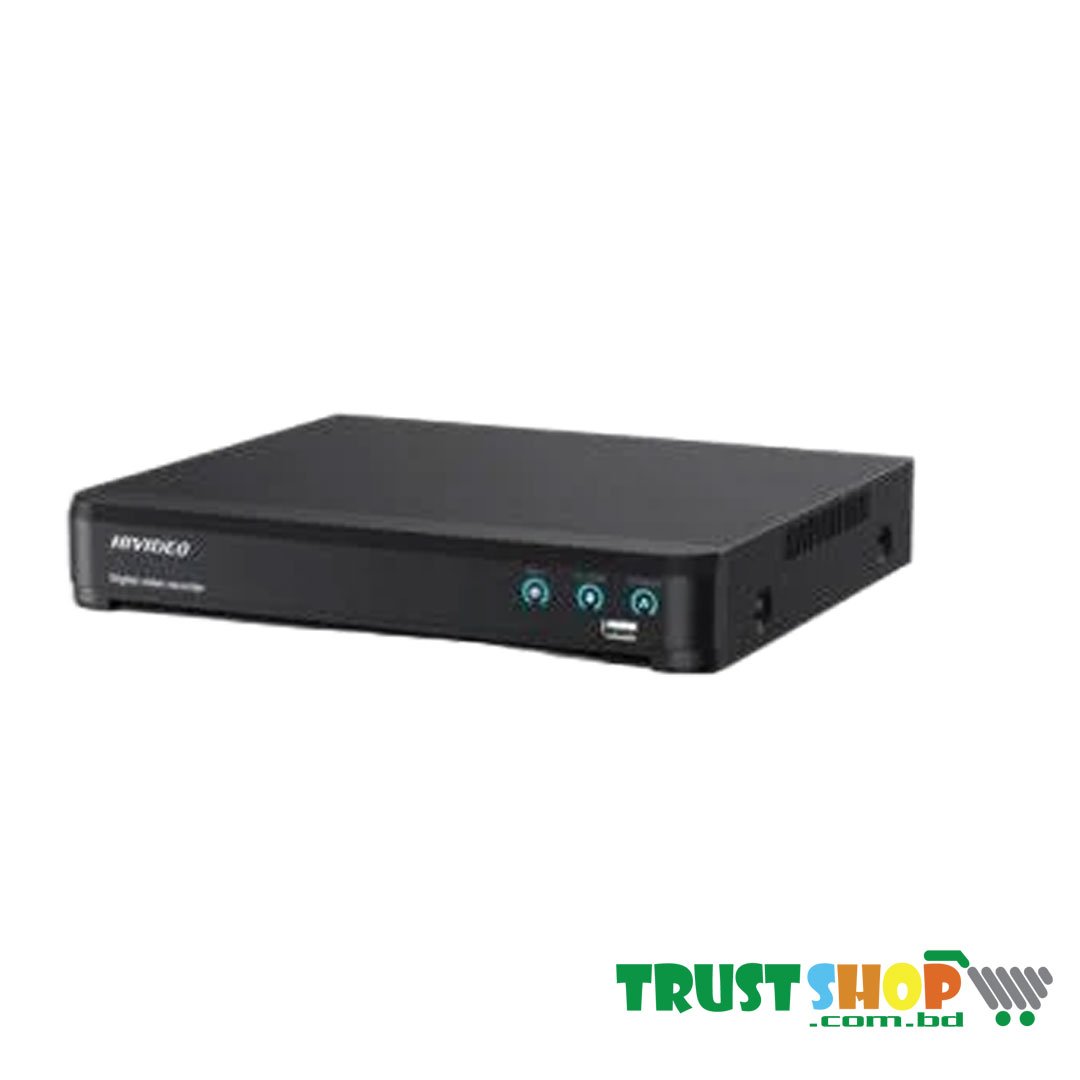

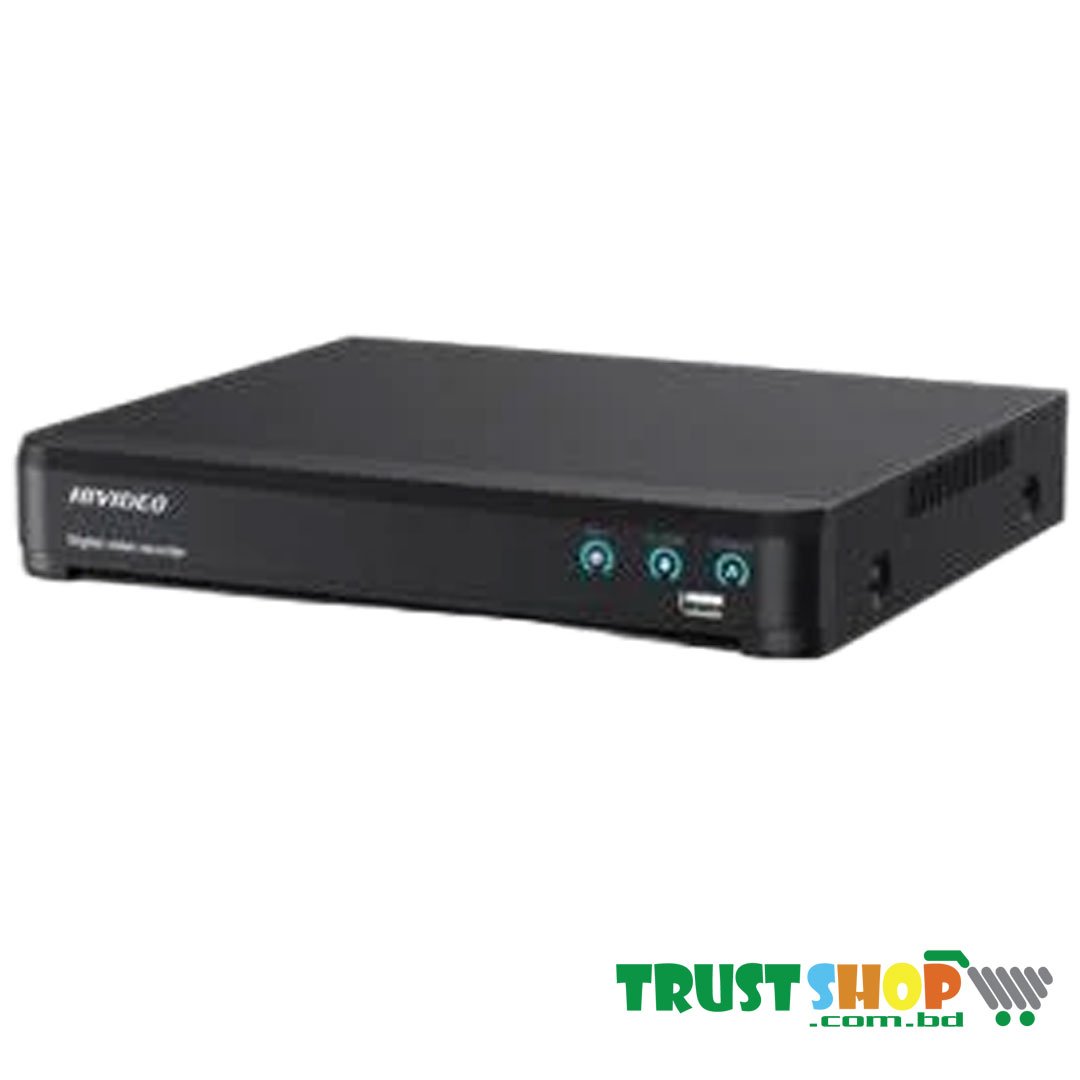

Hivideo HI-6004A 4 Channel 5MP XVR support AHD, CVI, TVI and IP
| ✅ 5-in-1 HiVR product solution that supports HD analog video coding, HD analog + HD network video input, and pure HD network video input
✅ Support VGA and HDMI output; ✅ Support a variety of cloud technologies, realize network penetration for camera and DVR docking, and support the functions of pushing alarm information to mobile phones ✅ Support remote access, DDNS to realize one‐key remote monitoring; ✅ With UTC function, camera menu parameters can be adjusted via UTC function； Ø Support H.264/H.265(HEVC) IP camera ✅ Support IP camera address modifying in bulk, and camera device added remotely； Ø Support AHD/TVI/CVI/CVBS/IP 5‐in‐1 and self‐recognition ✅ Can connect with mainstream IP camera brands in the market(private protocol or Onvif)； ✅ Support other third‐party products based on ONVIF2.4 (IP mode)； ✅ Support VGA、HDMI simultaneous display，Max resolution is up to HDMI 1080P. ✅ Record playback can be shown by time, record type showed by color, to search and retrieve conveniently and efficiently； ✅ Record backup can be arranged according to the time and duration, accurate to seconds； ✅Preview screen can be exchanged randomly. Picture position changed without physical address changing, it’s convenient for construction ✅ Support multiple languages ✅ Provide mating Web、CMS SDK service； ✅ Support multiple playback modes: fast forward, slow playback, fast reverse, etc. Max 16 times fast forward or fast reverse ✅ Support WEB、VMS, support android/IOS mobile system Ø Support P2P，QR code scanning, and playback via APP ✅ Support TVI coaxial audio input, and also AHD coaxial audio input. |
||
| Model: HI‐6004A‐E | ||
|
APP |
|
Neutral APP: HIPLUS Band APP: HIVIDEO |
| Specification | ||
|
System |
Main processor | MC6630 |
| Operation system | Embedded LINUX operation system | |
|
System resources |
Multichannel real time record | |
| Multichannel real time playback | ||
| multichannel multi‐user on network operation | ||
|
Interface |
Operation system | graphic menu operation interface, support mouse to operate |
| Image display | 1/4/6/9/16 screen | |
|
Language |
English, traditional Chinese, simplified Chinese, Japanese, Russian, German, Italian, Turkish, polish, Spanish, Korean, Indonesian, Thai, Arabic, Persian, Vietnamese, French, Portuguese, Greek, Czech | |
|
Video |
Image coding | H.264/H.265 |
| Surveillance quality | VGA(Max 1080P)；HDMI(Max 1080P), CVBS optional | |
| Preview | 4*5MP‐N@20fps/4*4MP‐N@25fps/4*1080P@25fps | |
| Code capacity | 4*5 MP‐N@12fps/4*4MP‐N@17fps/4*1080P@15fps | |
| Decode capacity | 4*5 MP‐N@12fps/4*4MP‐N@17fps/4*1080P@15fps | |
|
Various mode input |
Coaxial: 4*5MP‐N | |
| Mixed: 4MP‐N(coaxial)+1080P (IP) Arbitrary combination for
coaxial and IP hybrid mode |
||
| IP: 8*5MP, 16*5MP for all IP mode | ||
| Recognize method | Automatic Identification、All AHD、All TVI、All CVI、Customized | |
|
Motion detection |
192（16*12） testing areas can be set for each image； | |
| can set multi‐sensitivity (only for local channel and P6S IP camera) | ||
|
Audio |
Audio compression | G.711U |
| Audio output | HDMI, support extended audio output. | |
| Audio Input | Can extend to 4ch audio In. | |
| intercom | Support extend audio in and out intercom | |
| coaxial audio | Support 4ch coaxial audio | |
|
Record & Playback |
Video mode | manual>alarm>dynamic testing>timing |
|
Local playback |
1CH (5MP‐N coaxial input)/4CH (4MP‐N coaxial input) | |
| 2CH (Coaxial or Hybrid mode); | ||
| 4ch IP mode | ||
| Record retrieval | Time retrieval, event retrieval, Timeline retrieval, channel retrieval
、Face playback, Intelligent playback(Motion detection playback) |
|
|
Storage& Backup |
Occupation | 1080P 10‐15G/day*channel; 720P 10G/day*channel; 960H 6‐
10G/day*channel; Audio:691.2M/day*channel |
| Record storage | Local hard disk; network | |
| Backup mode | Network backup、USB , SATA record |
|
VMS |
Type | IE/mobile/VMS |
| P2P | Support(IOS, Android, PC) | |
| APP | Multi‐screen surveillance; audio surveillance; mobile record; snap;
pan‐tile control; remote record playback |
|
|
UTC |
Camera OSD control | Support |
| Pan‐tilt control | Don’t support | |
| 3D‐NR | Support auto/manual setting for noise reduction parameters | |
|
|
Video input | 4ch BNC; support coaxial audio in |
| Video output | 1ch VGA，1ch HDMI; 1ch TV output(Optional) | |
| Audio output | HDMI output | |
| Network port | RJ45 10M/100M Self‐adapt to Ethernet interface | |
| USB port | 2 USB 2.0 port | |
| HDD port | 1 SATA Port（Can support 8T HDD） | |
| Wifi port | NO | |
| Remote control | Optional | |
|
Others |
Power | 12V/2A（Sufficient amperes） |
| Consumption | < 15W（exclusive hard disk） | |
| Temperature | ‐5 °C~ +55 °C | |
| Working humidity | 10%~90% | |
Hivideo HI-6004A 4 Channel 5MP XVR Support All Brand IP and Analog Camera
Hivideo HI-6004A 4 Channel 5MP XVR supports all brands of analog cameras and ONVIF IP cameras. This XVR supports Coaxial audio as well as hard disks.1×6 TB
What is the price of Hivideo HI-6004A 4 Channel 5MP XVR Support All Brand IP and Analog Camera in Bangladesh in 2023 ?
The latest price of Hivideo HI-6004A 4 Channel 5MP XVR in Bangladesh is 4250 tk. You can buy the Hivideo HI-6004A 4 Channel 5MP XVR at the best price from our website or visit our office.
