Description
| Video and Audio | |
| Analog Camera Input | 4 Channel, BNC |
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps |
| AHD Camera | 5MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | up to 5MP |
| Video port configuration | Full HD: 4CH |
| Hybrid: 4CH | |
| Full Network：4CH | |
| Audio In/Out | 4/1, RCA |
| Two-way Talk | 1CH RCA |
| Recording | |
| Compression | H.264+/H.265+ |
| Resolution | 5MP,1080P, 1080N, 720P, WD1 |
| Record Rate | Main stream:5MP(1~20fps),1080P(1~25fps),
1080N/720P/960H/D1(1~25fps) |
| Sub stream: D1/CIF(1~8/12fps) | |
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, IVP), Alarm Device |
| Audio Compression | G.711U |
| Display | |
| Interface | 1x HDMI, 1x VGA |
| Resolution | 1280×1024, 1024×768, 1280×800, 1440×900, 1920×1080 |
| OSD | Device ID, Time, Record-Setting, Alarm setup, Audio, Camera title |
| Network | |
| Interface | 1 RJ-45 Port (100M) |
| Network Function | TCP/IP, DHCP, DNS, DDNS, HTTPS, HTTP, |
| Smart Phone | iPhone, Android |
| Interoperability | ONVIF |
| Playback and Backup | |
| Playback | 4CH |
| Search Mode | Time /Date, Alarm, MD, IVP, Auto, Scheduled |
| Playback Function | Day view, Hour view, Back Step, Rewind, Pause,
Play, Fast Forward, Slow, Step, Snap, Sound on/off, Zoom, Backup to U-Disk |
| Backup Mode | USB |
| HDD | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB |
| General | |
| Power Supply | DC12V |
| Consumption | ≤ 8 W |
| Working Temperature | 00C~ 550C |
| Working Humidity | 10% to 90% |
| Dimensions | 345x275x75mm |
| Weight | ≤ 1.4 kg |

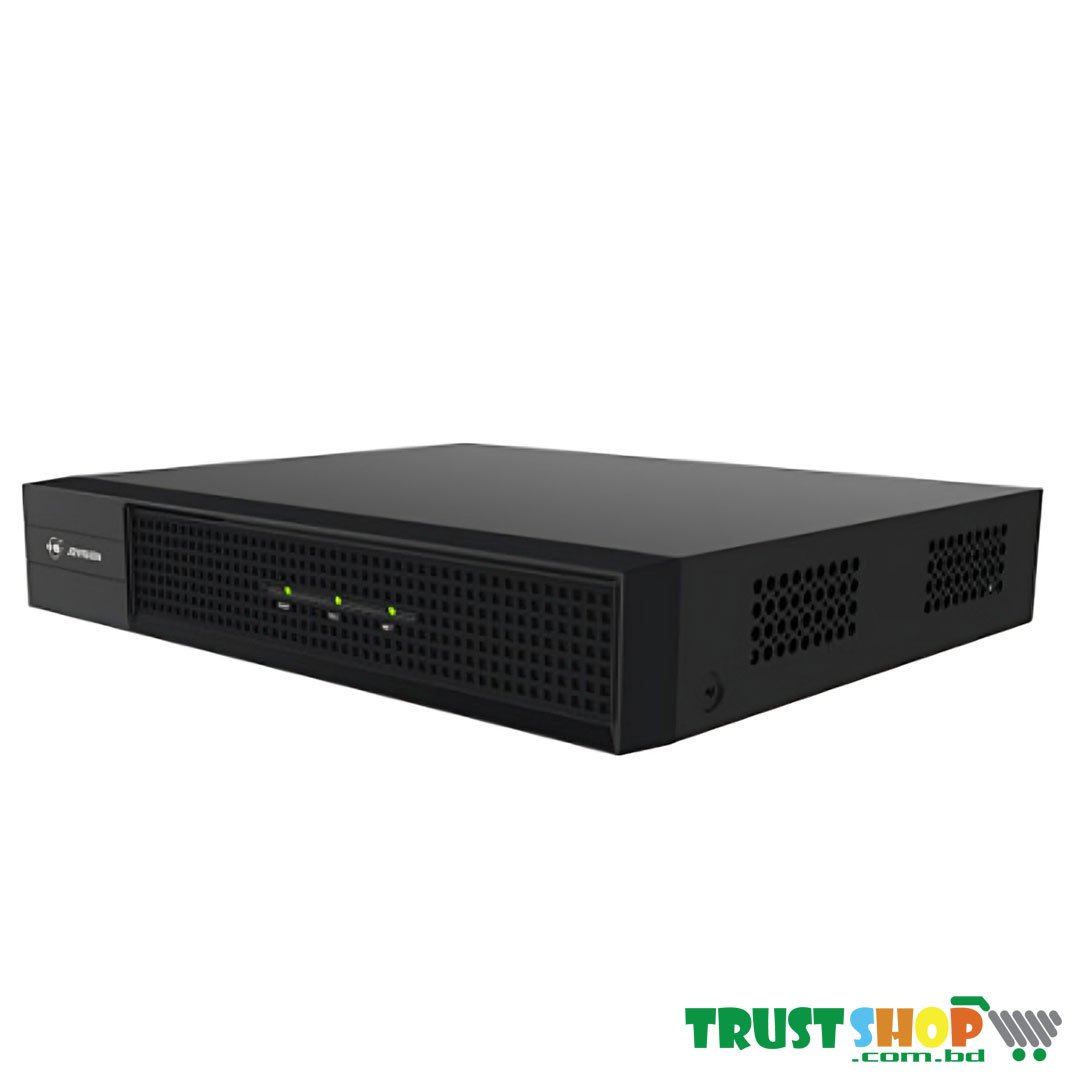

Features of the Jovision JVS-XD2504-HL10V 4 Channel 5 IN 1 XVR
The Jovision JVS-XD2504-HL10V 4 Channel 5 IN 1 XVR supports up to 2 megapixel resolution cameras. This Jovision JVS XD2504 4-channel XVR allows you to connect up to four analog or IP cameras and provides multiple recording modes, such as manual, scheduled, motion detection, and alarm-triggered. The XVR is equipped with mobile phone monitoring support for both iPhone and Android devices, ensuring that you can access your surveillance system on the go. The XVR is equipped with H.264 video compression technology, which helps reduce storage space without compromising the quality of the video.
It also has a built-in 10TB hard drive for local storage, which can be expanded up to 20TB. The Jovision JVS XD2504 HL10V 4-channel XVR has HDMI and VGA outputs, allowing you to connect it to a monitor or TV for local viewing. It also supports audio input and output, which means you can connect microphones and speakers to the device for two-way communication.
Overall, the Jovision JVS-XD2504-HL 10V 4 Channel 5 IN 1 XVR is a powerful and versatile device that can help you monitor your home or business efficiently and effectively.
What is the price of the Jovision JVS-XD2504-HL10V 4 Channel 5 IN 1 XVR in Bangladesh ?
The latest price of the Jovision JVS-XD2504-HL10V 4 Channel 5 IN 1 XVR is 3280 BDT. You can buy the Jovision JVS-XD2504-HL10V 4 Channel 5 IN 1 XVR from us at the best price. You can either buy it through our website or directly visit our office.
