Description
| Model | JVS-XD2832-HE20K |
| Video and Audio | |
| Analog Camera Input | 32CH, BNC |
| HDCVI Camera | 1080p@25/30fps, 720p@25/30fps |
| AHD Camera | 4MP, 1080p@25/30, 720p@25/30fps |
| TVI Camera | 1080p@25/30, 720p@25/30fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | Up to 1080P |
| Video Port Configuration | Full HD: 32CH |
| Hybrid: 16CH+16CH | |
| Full Network: 32CH | |
| Audio In/Out | 8/1, RCA |
| Two-way Talk | 1CH RCA |
| Recording | |
| Compression | H.264+/H.264 |
| Resolution | 4M-N, 1080N, 720p, WD1 |
| Record Rate | Main Stream: 4M-N(1~8fps), 1080N(1~18fps), 720P/960H/D1(1~18fps） |
| Sub stream: D1/CIF(1~8/12fps) | |
| Record Mode | Manual, Schedule (General, Continuous), MD (Motion Detection, Video Loss, IVP),
Alarm Device |
| Audio Compression | G.711U |
| Display | |
| Interface | 1x HDMI, 1x VGA |
| Resolution | 1280×1024, 1024×768, 1280×800, 1440×900, 1920×1080 |
| OSD | Device ID, Time, Record Setting, Alarm Setup, Audio, Camera Title |
| Network | |
| Interface | 1 RJ45 Port (100M) |
| Network Function | TCP/IP, DHCP, DNS, DDNS, HTTPS, HTTP, |
| Smart Phone | iPhone, Android |
| Interoperability | ONVIF 2.4 |
| Playback and Backup | |
| Playback | 8ch 4.0MP/16ch 2.0MP |
| Search Mode | Time /Date, Alarm, MD, IVP, Auto, Scheduled |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Snap
,Sound ON/OFF, Zoom, Backup to U-Disk |
| Backup Mode | USB |
| HDD | |
| Interface Type | 2 SATA Interface |
| Capacity | Up to 6 TB |
| General | |
| Power Supply | DC12V |
| Consumption | ≤ 20W |
| Working Temperature | 00C~ 550C |
| Working Humidity | 10% to 90% |
| Dimensions | 405x338x135mm |
| Weight | ≤ 3Kg |

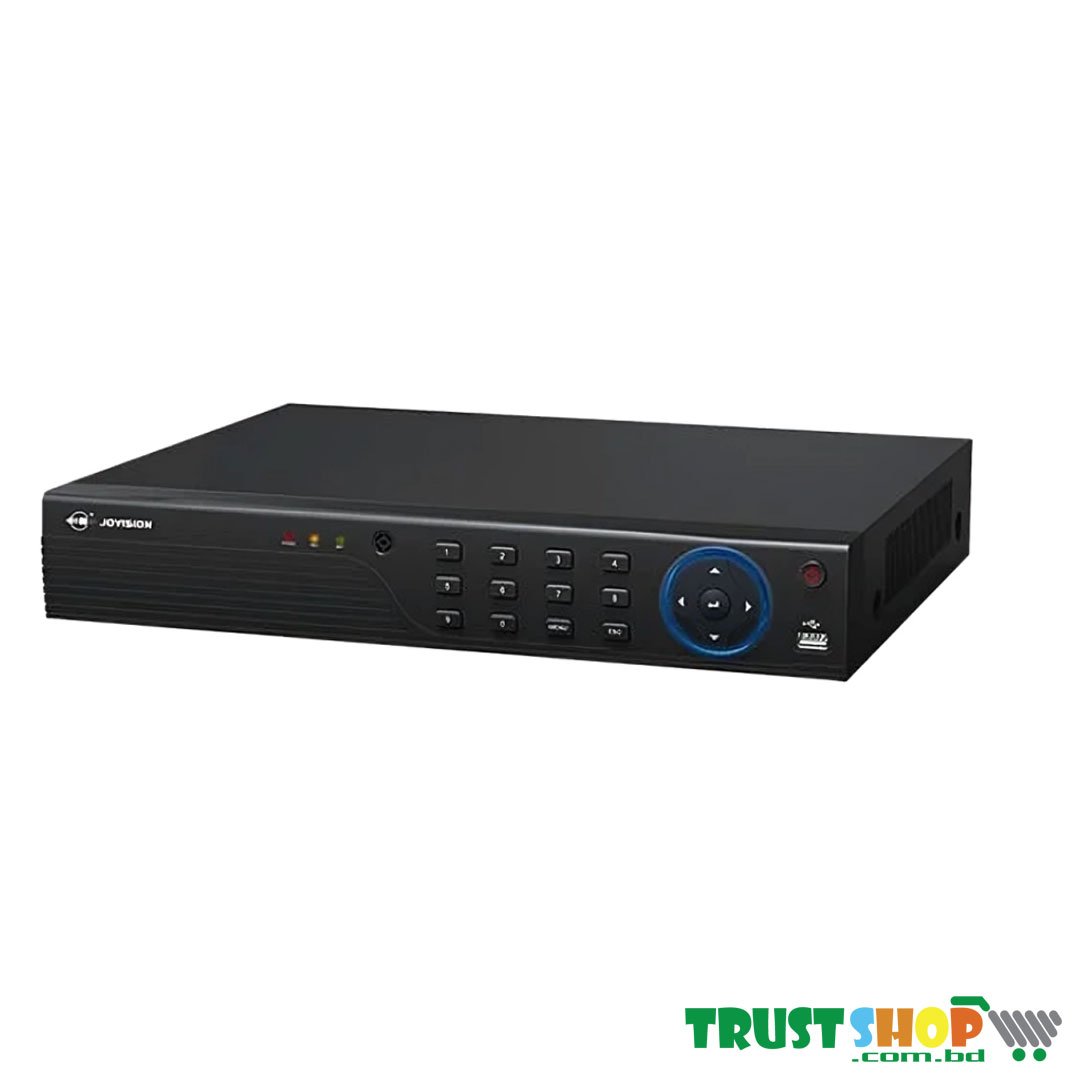

Features of the Jovision JVS-XD2832-HE20K 5-in-1 32-Channel XVR
The Jovision JVS-XD2832-HE20K 5-in-1 32-Channel XVR provides a maximum resolution of 1920 x 1080 pixels. The main compression of this product is H.265 and the operating system will be considered Linux O/S. It has an 8-channel video output with 1 channel VGA and 1 channel HDMI. It has supported any mode combination. It has only one SATA interface, the file format is H.26X, and the backup mode will be USB. The Ethernet speed is about 10 or 100 mbps, and this device is supported on Android or iOS.
What is the price of the Jovision JVS-XD2832-HE20K 5-in-1 32-Channel XVR in Bangladesh ?
The latest price of the Jovision JVS-XD2832-HE20K 5-in-1 32-Channel XVR is 16000 BDT. You can buy the Jovision JVS-XD2832-HE20K 5-in-1 32-Channel XVR from us. To buy this product, you can either buy it through our website or directly visit our office.
