Description

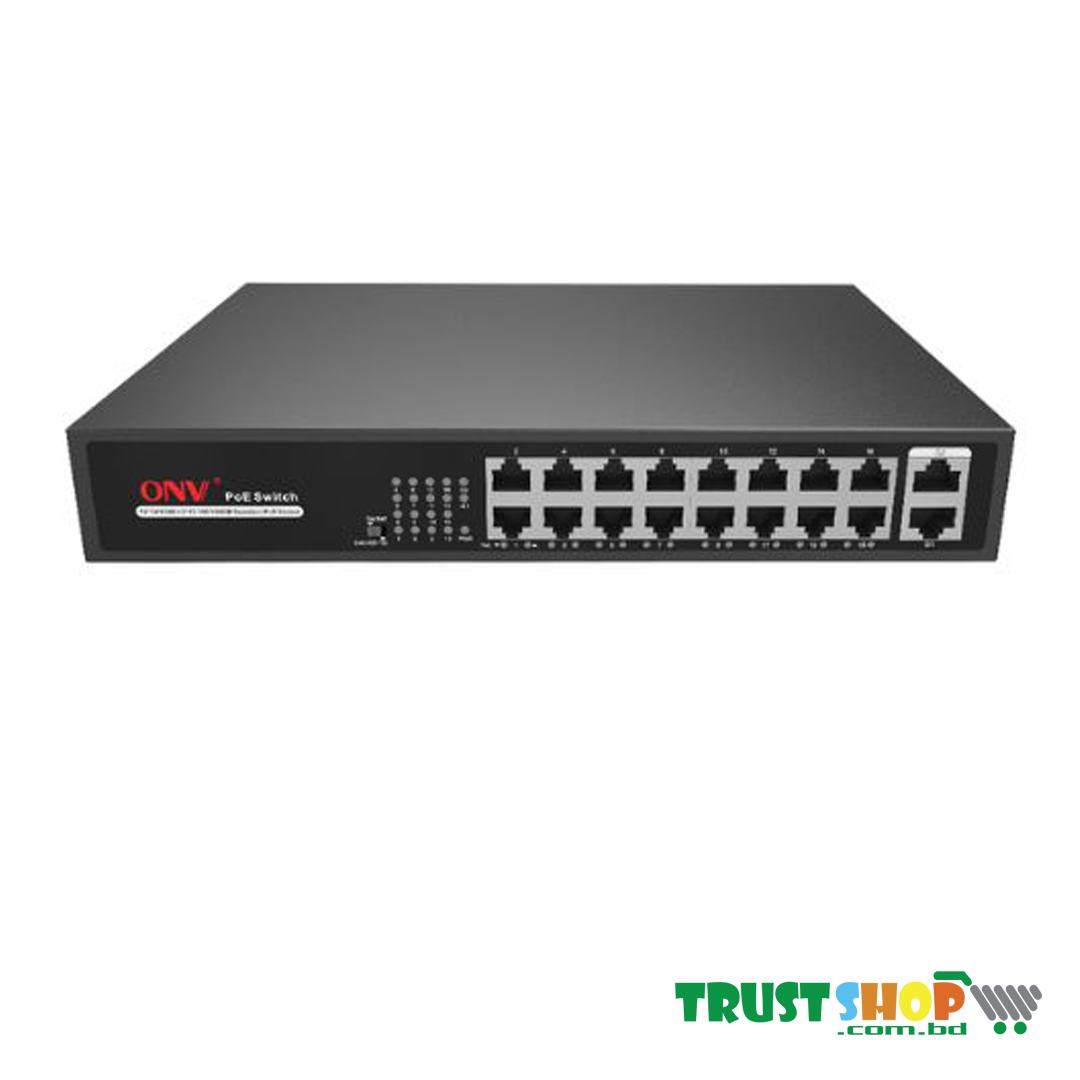

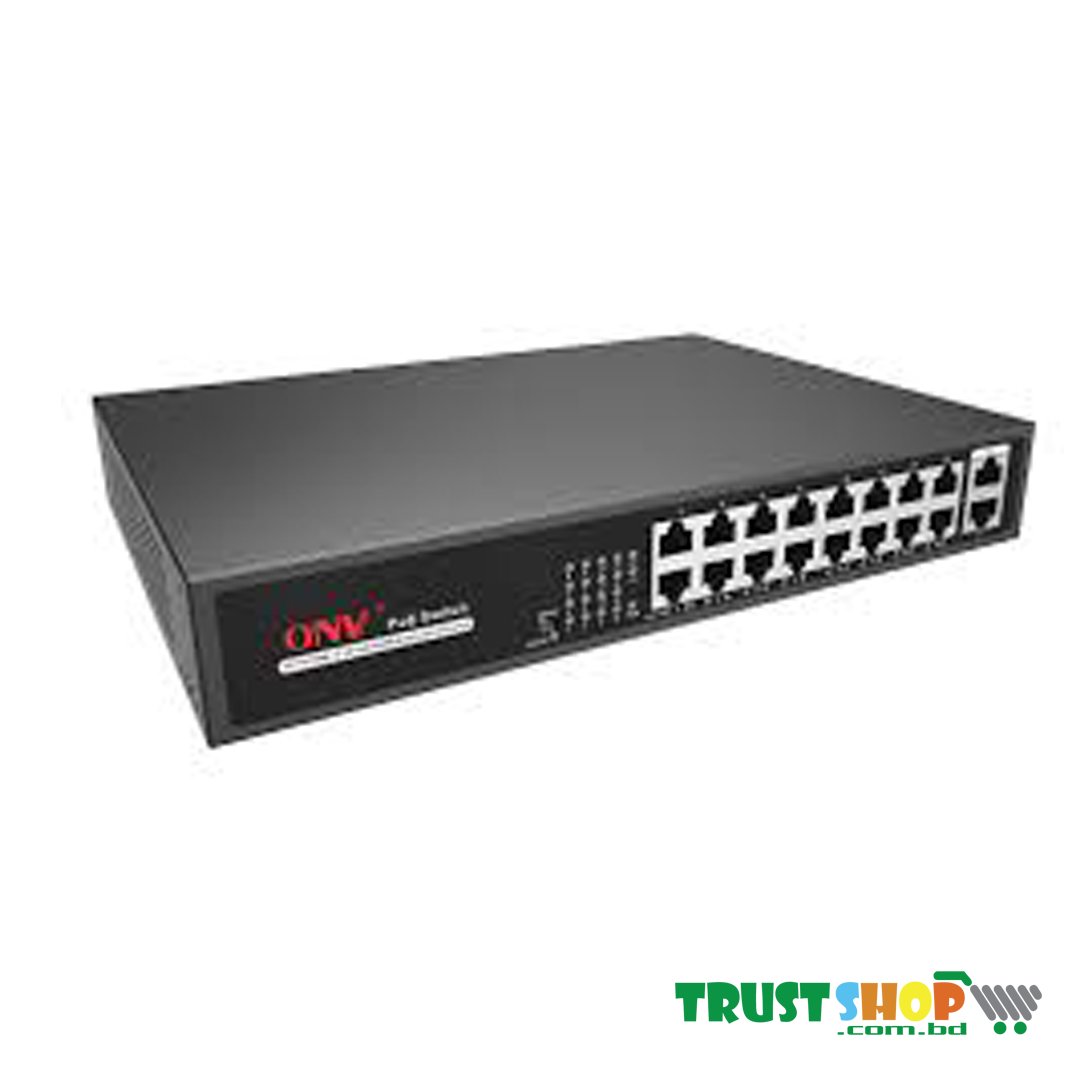

The ONV H1016PLS 2 Gigabit Up Link 16 Port PoE Switch. It is backed by a 1-year warranty and is supported by ONV’s team of experienced technical support engineers.
FEATURE
10/100M access, Gigabit RJ45 uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Provides 16*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
Intelligent PoE power supply
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ 16*10/100Base-TX RJ45 ports meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable, easy to use
◇ CCC,CE, FCC, RoHS.
◇ Support desktop and 1U-19 inch cabinet installation.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, fan active cooling, galvanized steel casing.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
◇ Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output.
◇ With a function switch. Port 9-16 can support 10M/250 meters long-distance transmission mode when one key is opened.
TECHNICAL SPECIFICATION
| Model | ONV-H1016PLS-250 |
| Interface Characteristics | |
| Fixed Port | 16*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-16 support 10/100Base-TX and port 17-18 can support 10/100/1000Base-T(X) auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤250 meters)
100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
| Functional Switch | 100m&250m function switch. default is OFF |
| When 100m turned on, default is 100m transmission. | |
| When 250m turned on port 9-16 support 10M/250m long-distance transmission | |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 14.8Gbps (Non-blocking) |
| Forwarding
Rate@64byte |
5.36Mpps |
| MAC | 16K |
| Buffer Memory | 4M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR (Green), Network: Link(Green), PoE: PoE (Green) |
| PoE & Power Supply | |
| PoE Port | Port 1 to 16 IEEE802.3af/at |
| Power Supply Pin | 1/2(+) 3/6(-) 2-pairs power supply |
| Max Power Per Port | 30W, IEEE802.3af/at |
| Total PWR / Input Voltage | 250W (AC100-240V) |
| Power Consumption | Standby<15W, Full load <240W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz 5.0A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 270*181*44.5mm |
| Net /Gross Weight | <1.7kg / <2.2kg |
| Installation | Desktop, Wall-mounted, Rack-mounted |
| Certification & Warranty | |
| Lightning Protection | Port lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance. |
ONV H1016PLS 2 Gigabit Up Link 16 Port PoE Switch
The ONV H1016PLS 2 Gigabit Up Link 16 Port PoE Switch is ideal for enterprises and organizations that require the power and connectivity of a large number of PoE devices. The ONV H1016PLS can manage even the most demanding networks, with 16 PoE ports and 2 Gigabit uplink ports.With plug-and-play operation and PoE detection and prioritization, the ONV H1016PLS 2 Gigabit Up Link 16 Port PoE Switch is extremely simple to use and administer. This means you can get your network up and operating fast and easily, without having to deal with complicated settings.The ONV H1016PLS is likewise a dependable and reasonably priced PoE switch. It comes with a one-year guarantee and is supported by ONV’s skilled technical support professionals.
What is the price of the ONV H1016PLS 2 Gigabit Up Link 16 Port PoE Switch in Bangladesh in 2023?
The latest price of the ONV H1016PLS 2 Gigabit Up Link 16 Port PoE Switch. You can buy this ONV H1016PLS 2 Gigabit Up Link 16 Port PoE Switch us at the best price. You can either buy it through our website or directly visit our office.
