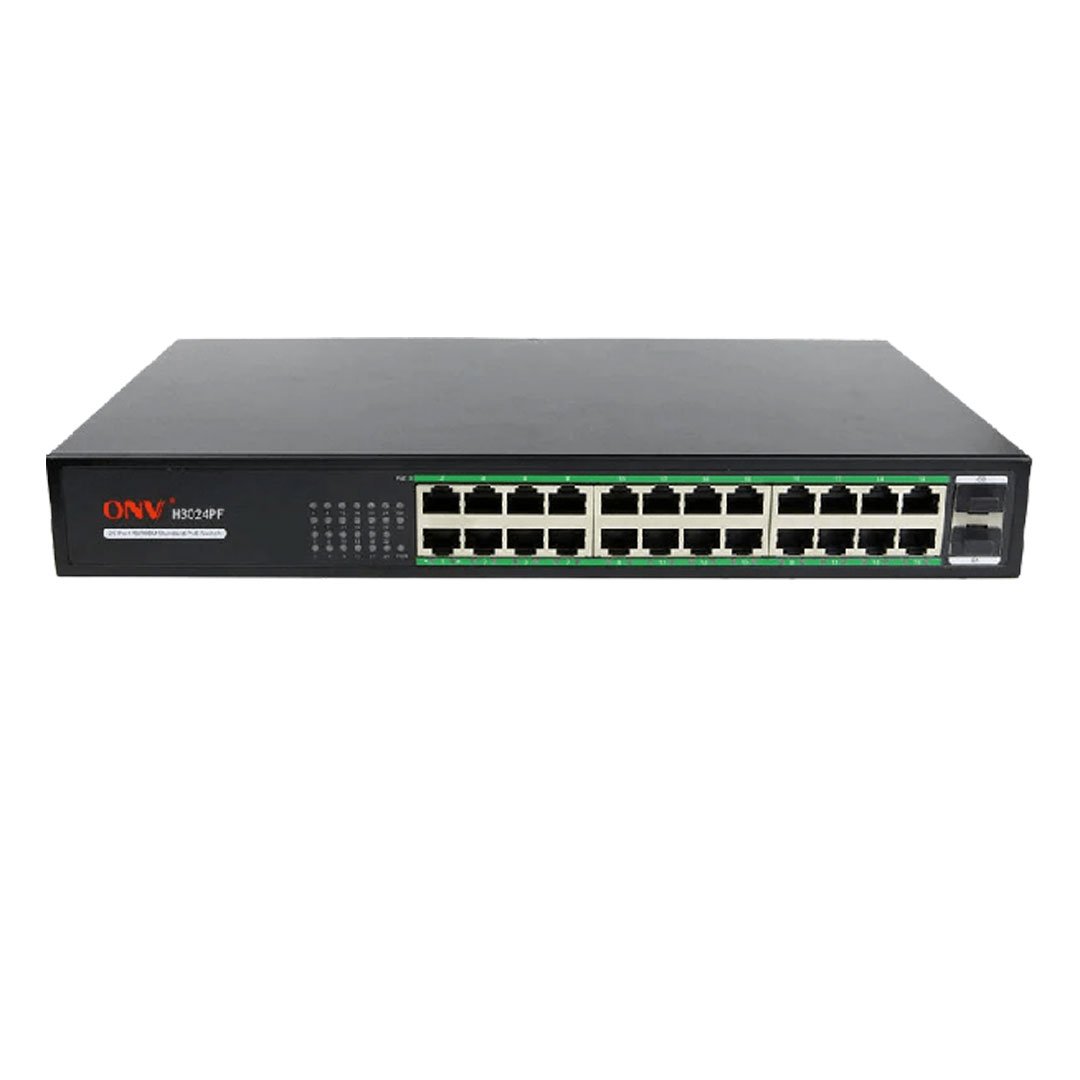

ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch
The ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch is a great choice for businesses and organizations of all sizes that need a reliable and affordable PoE switch with SFP
FEATURE
Full Gigabit port
◇ Support IEEE 802.3x full-duplex flow control and Backpressure.
◇ Support non-blocking wire-speed forwarding for smoother transmission.
◇ Support the combination of RJ45 ports and Gigabit SFP ports to facilitate flexible networking and meet the networking requirements of various scenarios.
Intelligent PoE power supply
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.
◇ 24*10/100/1000Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ Low power consumption, with fan, galvanized steel casing, excellent heat dissipation to ensure the stable operation of the switch.
TECHNICAL SPECIFICATION
| Model | ONV-H3016PF | ONV-H3024PF |
| Interface Characteristics | ||
| Fixed Port |
16*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP ports (Data) |
24*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP ports (Data) |
| Ethernet Port | Port 1-16/1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
| SFP Slot Port | Gigabit SFP optical fiber interface, default no include optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
| Optical Cable/ Distance | Multi-mode: 850nm/ 0-500m, Single-mode:1310nm/0-40km, 1550nm/ 0 -120km. | |
| Chip Parameter | ||
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 52Gbps (Non-blocking) | |
|
Forwarding Rate@64byte |
26.78Mpps | 38.69Mpps |
| MAC | 8K | |
| Buffer Memory | 4M | |
| Jumbo Frame | 10K | |
| LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Green), Fiber: G1/G2(Green), POE: PoE(Green) |
|
| PoE & Power Supply | ||
| PoE Port | Port 1 to 16, IEEE802.3af/at | Port 1 to 24, IEEE802.3af/at |
| Power Supply Pin | Default 1/2 (+) 3/6 (-) | |
| Max Power Per Port | 30W, IEEE802.3af/at | |
| Total PWR / Input Voltage | 250W /(AC100-240V) | |
| Power Consumption | Standby: 15W,Full Load: 240W | Standby: 20W, Full Load: 250W |
| Power Supply | Built-in power adapter, AC 100~240V 50-60Hz 4.1A | |
| Physical Parameter | ||
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 270*181*44.5mm | 330*204*44mm |
| Net /Gross Weight | <1.7kg / <2.2kg | <3.0kg / <3.5kg |
| Installation | Desktop, Wall-mounted,19 inch 1U cabinet | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch
The ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch is a full gigabit SFP PoE fiber switch with 26 ports that is ideal for small and medium-sized enterprises and organizations. It offers up to 30 watts of power per port, making it simple to connect and power PoE devices like IP cameras, wireless access points, and VoIP phones. In addition to its PoE capabilities, the ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch includes two SFP ports for connecting to high-speed fiber optic networks. As a result, the ONV H3024PF is an excellent solution for enterprises and organizations in need of a robust and adaptable PoE switch.
What is the price of the ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch in Bangladesh in 2023?
The latest price of the ONV H3024PF 26 Port Full Gigabit SFP Fiber switch 25500 BDT. You can buy this ONV H3024PF 26 Port Full Gigabit SFP Fiber Switch us at the best price. You can either buy it through our website or directly visit our office.
