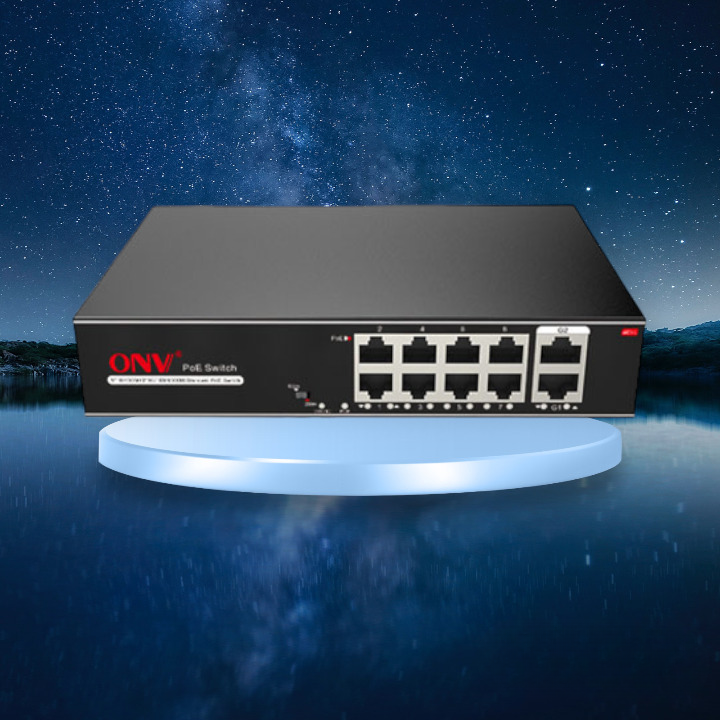

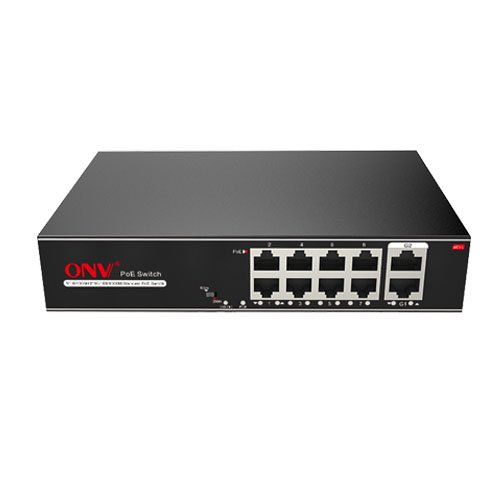

ONV-H1108PGL 10-port PoE switch
ONV-H1108PGL 10-port PoE switch is a 10/100Mbps unmanaged PoE switch independently developed by ONV. It has 8*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W, and the maximum POE output power is 120W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through network cable to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, factory quarters and small and medium-sized enterprises to form an economy efficient network.
Unmanaged model, plug and play, no configuration, easy to use.
TECHNICAL SPECIFICATION
| Model | ONV-H1108PGL |
| Interface Characteristics | |
| Fixed Port |
8*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-8 can support 10/100Base-TX and port 9-10 can support 10/100/1000Base-T auto detect, full / half duplex MDI / MDI-X adaptive |
| Functional Switch | 1*(Extend) Note: when the switch state changes, it must be restarted before the PoE switch function can take effect |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 11.8Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
4.17Mpps |
| MAC | 3k |
| Buffer Memory | 2M |
| LED Indicator |
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green) Functional switch: EXTEND (Green) |
| PoE & Power Supply | |
| PoE Port | Port 1 to 8 |
| Power Supply Pin | 1/2(+) 3/6(-) |
| Max Power Per Port | 30W, IEEE802.3af/at |
| Total PWR / Input Voltage | 120W/ (AC100-240V) |
| Power Consumption | Standby <5W, Full load <120W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz 2.2A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension | 195*130*40mm |
| Net /Gross Weight | <0.8kg / <1.2kg |
| Installation | Desktop, wall mounted |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance. |
ONV-H1108PGL 10-port PoE switch uplink 10M/250m transmission
The product ONV-H1108PGL 10-port PoE switch contains: 8*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) for fixed Port. ONV-H1108PGL 10-port PoE switch gives the best PoE switch Visit for more.
What is the price of ONV-H1108PGL 10-port PoE switch in Bangladesh?
The latest price of ONV-H1108PGL 10-port PoE switch in Bangladesh is 8,000৳. You can buy the ONV-H1108PGL 10-port PoE switch at best price from our website or visit any of our office.
