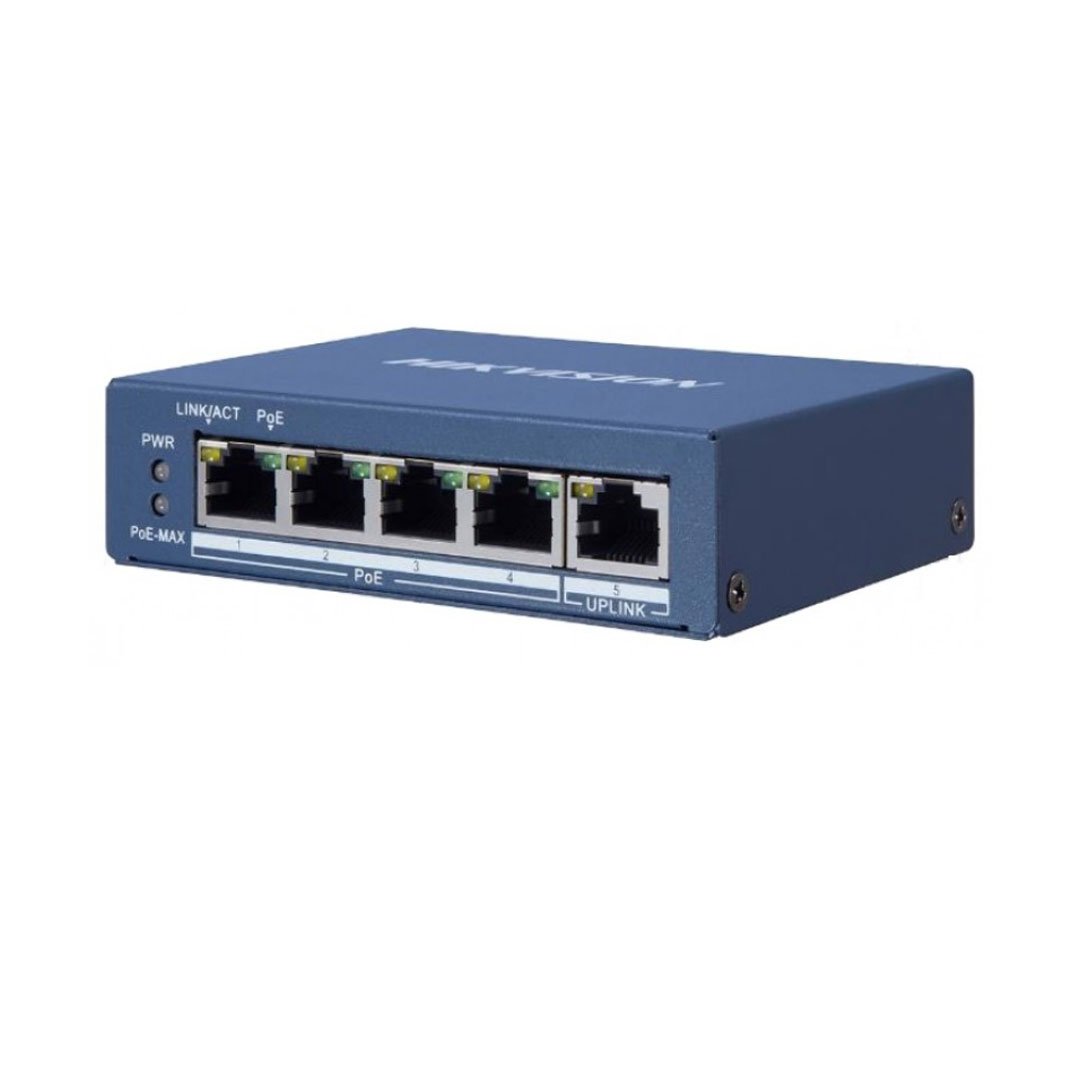

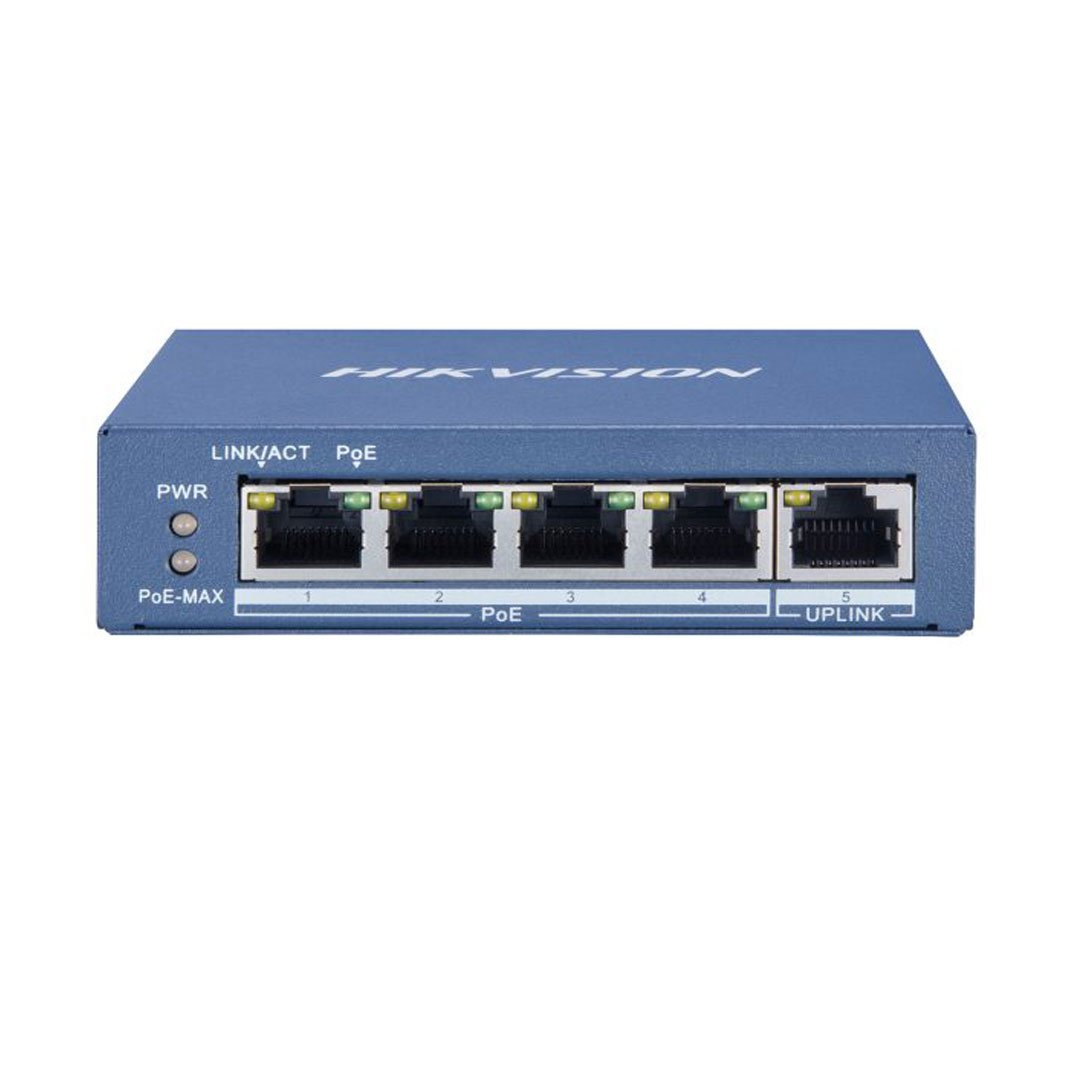

Hikvision DS-3E0505P-E/M 4 Port POE Switch

Hikvision DS-3E0505P-E/M 4 Port POE Switch , Giga poe Switch 4 port price

• Network Parameters
• Ports4 × Gigabit PoE ports, and 1 × Gigabit RJ45 port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
• Forwarding Mode Store-and-forward switching
• MAC Address Table2 K
• Switching Capacity10 Gbps
• Packet Forwarding Rate7.44 Mpps
• Internal Cache1 Mbits

• PoE Power Supply
• PoE Standard IEEE 802.3af, IEEE 802.3at
• PoE Power Pin End-span: 1/2(-), 3/6(+)
• PoE Port Ports 1 to 4
• Max. Port Power30 W
• PoE Power Budget35 W

• General
• Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
• Shell Metal material, fan-free design
• Gross Weight0.76 kg (1.67 lb)
• Net Weight0.27 kg (0.58 lb)
• Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
• Operating Humidity5% to 95% (no condensation)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Storage Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 0.8 A
• Power Consumption In Idle3 W
• Max. Power Consumption38 W

• Approval
• EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 18)
• Safety UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2028)
• Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2017)
