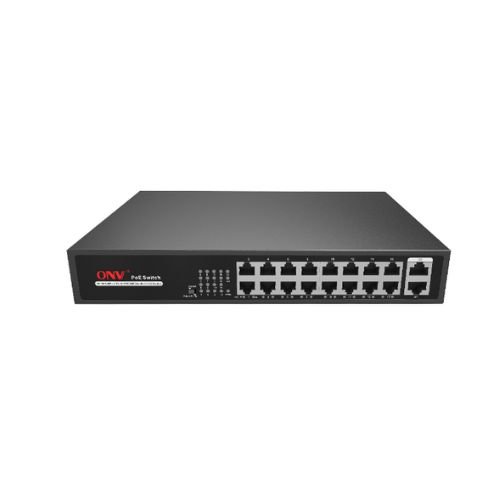

ONV H1016PLS 10-port PoE switch
The ONV H1016PLS 10-port PoE switch unmanaged PoE switch independently developed by ONV. It has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.
Onv h1016pls 10 port poe switch manual
It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy efficient network.
Unmanaged mode, plug, and play, no configuration, easy to use.
TECHNICAL SPECIFICATION :
| Model | ONV-H1016PLS |
| Interface Characteristics | |
| Fixed Port |
16*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-T uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-16 support 10/100Base-TX and port 17-18 support 10/100/1000Base-T(X) auto-detection, full/half-duplex MDI/MDI-X auto-sensing |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤250 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
| Functional Switch | 100m&250m function switch. default is OFF |
| When 100m turned on, default is 100m transmission. | |
| When 250m turned on port 9-16 support 10M/250m long-distance transmission | |
| Chip Parameter | |
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 14.8Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
5.36Mpps |
| MAC | 16K |
| Buffer Memory | 4M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR (Green), Network: Link(Green), PoE: PoE (Green) |
| PoE & Power Supply | |
| PoE Port | Port 1 to 16 IEEE802.3af/at |
| Power Supply Pin | 1/2(+) 3/6(-) 2-pairs power supply |
| Max Power Per Port | 30W, IEEE802.3af/at |
| Total PWR / Input Voltage | 160W (AC100-240V) |
| Power Consumption | Standby<15W, Full load <160W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz 3.0A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 270*181*44.5mm |
| Net /Gross Weight | <1.7kg / <2.2kg |
| Installation | Desktop, Wall-mounted, Rack-mounted |
| Certification & Warranty | |
| Lightning Protection | Port lightning protection: 4KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 1 year, lifelong maintenance. |
What is the Price of ONV H1016PLS 10-port PoE switch in Bangladesh in 2023?
The latest price of ONV H1016PLS 10-port PoE switch is 10500 BDT. You can buy ONV H1016PLS 10-port PoE switch from us. To buy this product, You can buy it through our website or you can directly visit our office.
