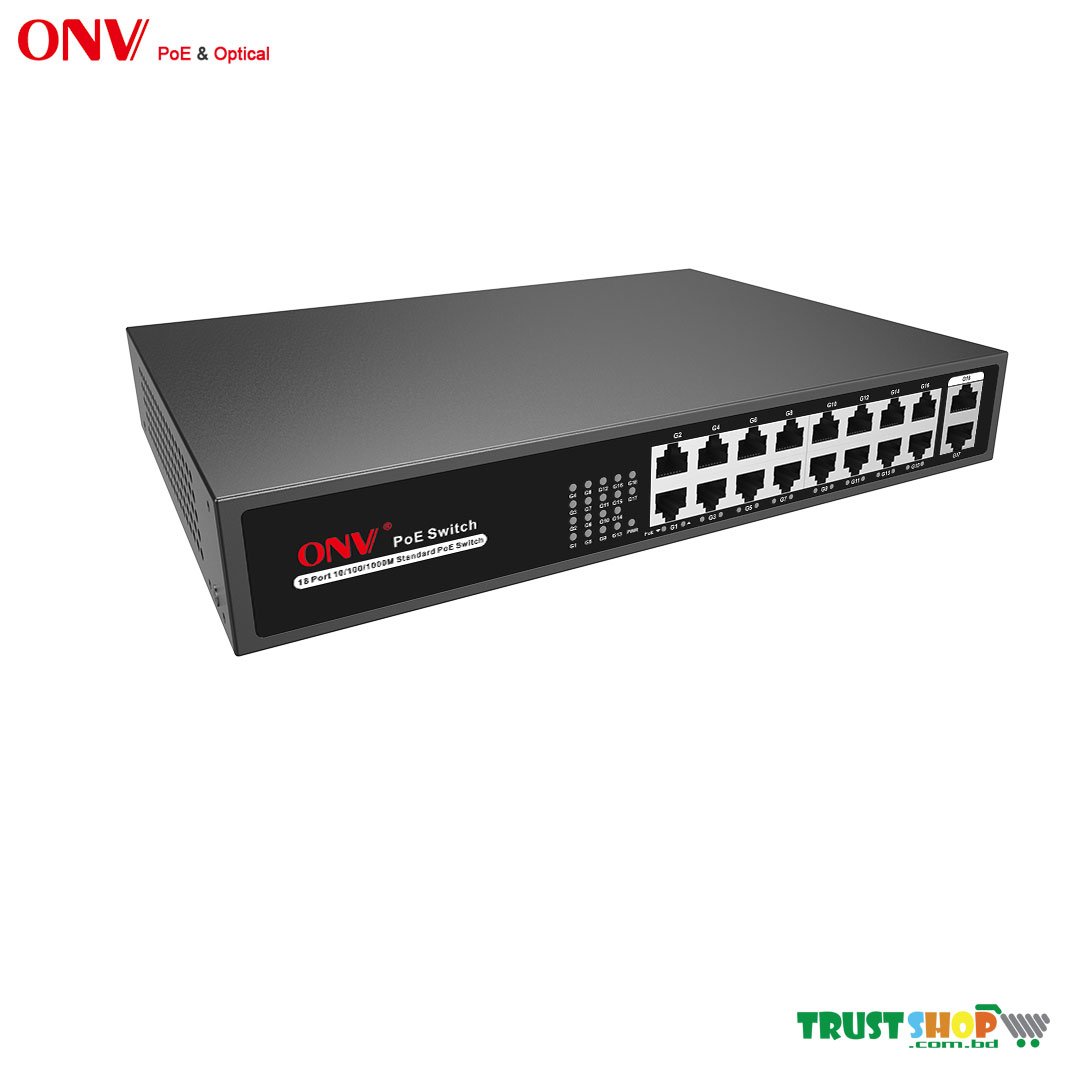

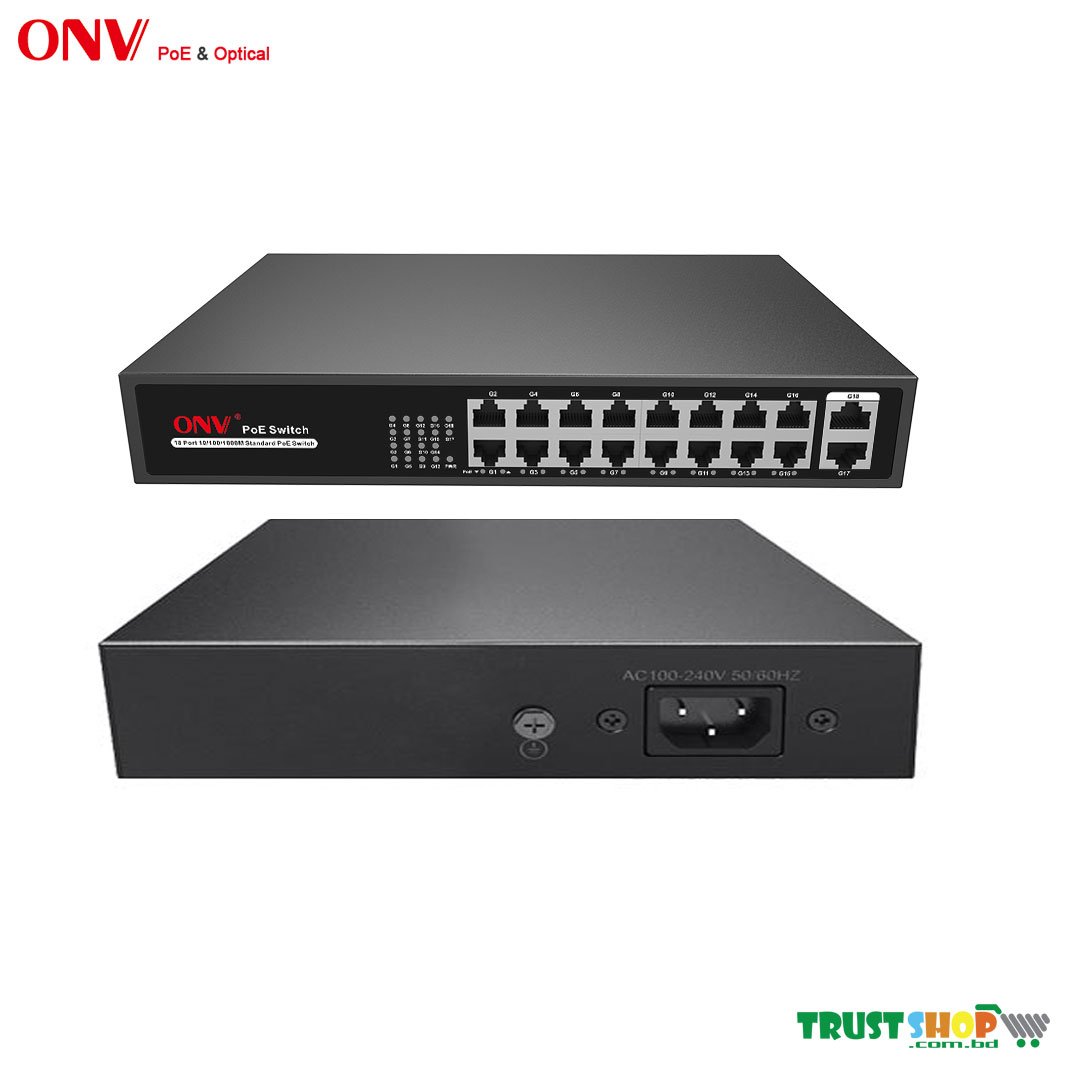

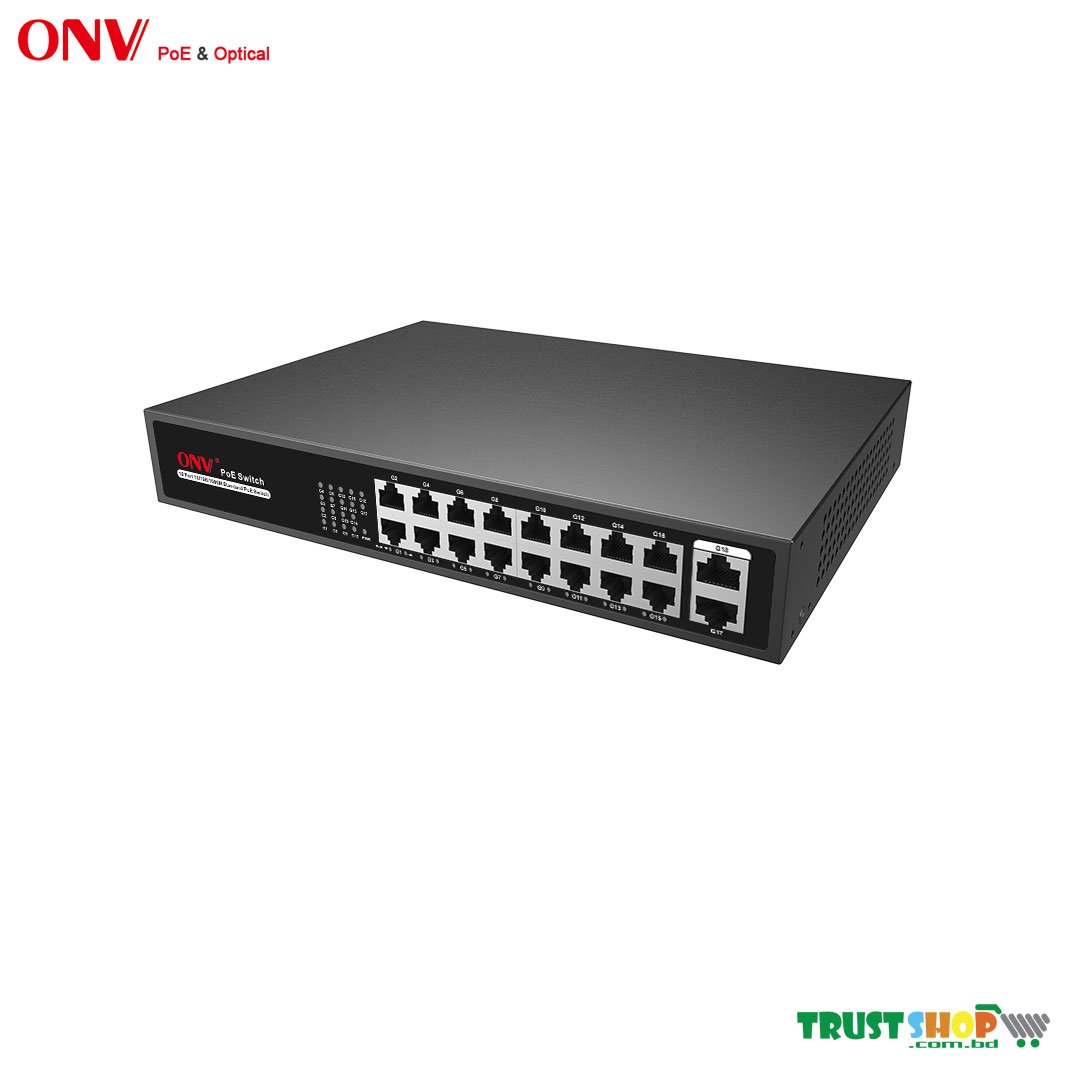

ONV-H3016PS 18-port Full Gigabit PoE switch

ONV-H3016PS 18-Port PoE Switch, onv poe switch

The ONV-H3016PS is a full-featured unmanaged Gigabit PoE switch independently developed by ONV. It has 16 PoE 10/100/1000Base-T ports and 2*10/100/1000Base-T RJ45 uplinks. Port 1-16 can support IEEE802.3af/at PoE. Single PoE port up to 30W.As a PoE power supply device, it can automatically detect the devices that receive standard-compliant power supply and supply power through the network cable.

ONV-H3016PS Mainly Used:

It can power POE devices such as wireless access points, webcams, VoIP phones, video access control intercoms, etc. via network cable to meet the network environment that requires high-density PoE power supply. It is suitable for hotels, campuses, industrial areas and small and medium-sized enterprises to form a practical network. unmanaged mode, plug and play, no configuration, easy to use.

ONV-H3016PS Full gigabit port :

◇ Supports non-blocking wire-speed transmission.

◇ Supports IEEE802.3x based full duplex and back pressure based half duplex.

◇ Gigabit Ethernet ports and two RJ45 uplink ports ensure flexible networking and meet the network needs of different scenarios. Smart PoE Power Adapter

◇ IEEE802.3af/PoE without damaging non-PoE devices.

◇ PoE port priority system: Supply power to the priority port first when the power budget is insufficient, avoiding device overload.

◇ 16 10/100/1000Base-T RJ45 ports, meeting the needs of security surveillance, teleconferencing system, wireless coverage and other scenarios.

Stable and reliable, easy to use

◇ CCC, CE, FCC, RoHS.

◇ Low energy consumption, galvanized steel body.

◇ User-friendly control panel can display device status by PWR, Link and PoE LED indicator.

◇ Self-developed power supply, highly redundant design for long-term and stable PoE output.
