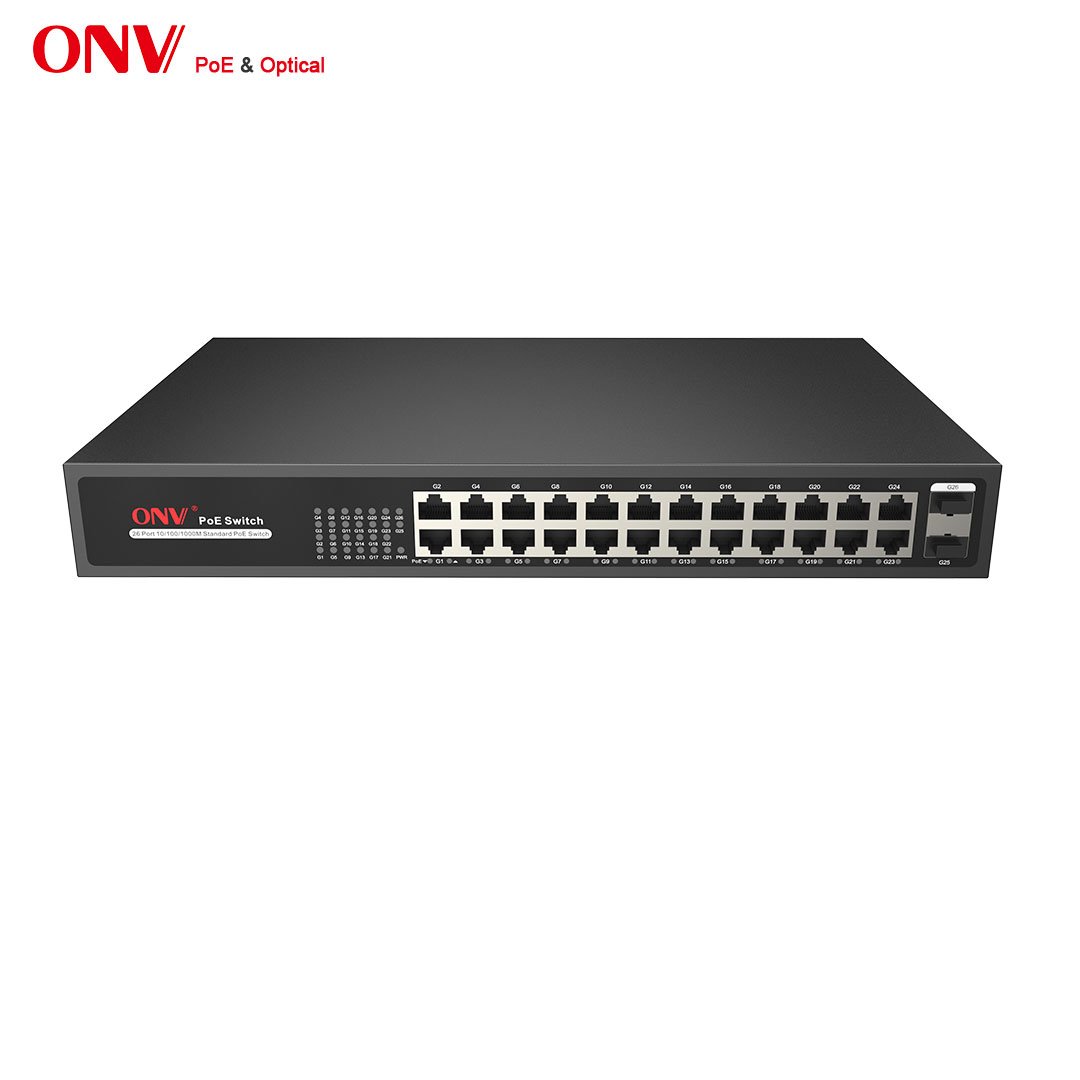

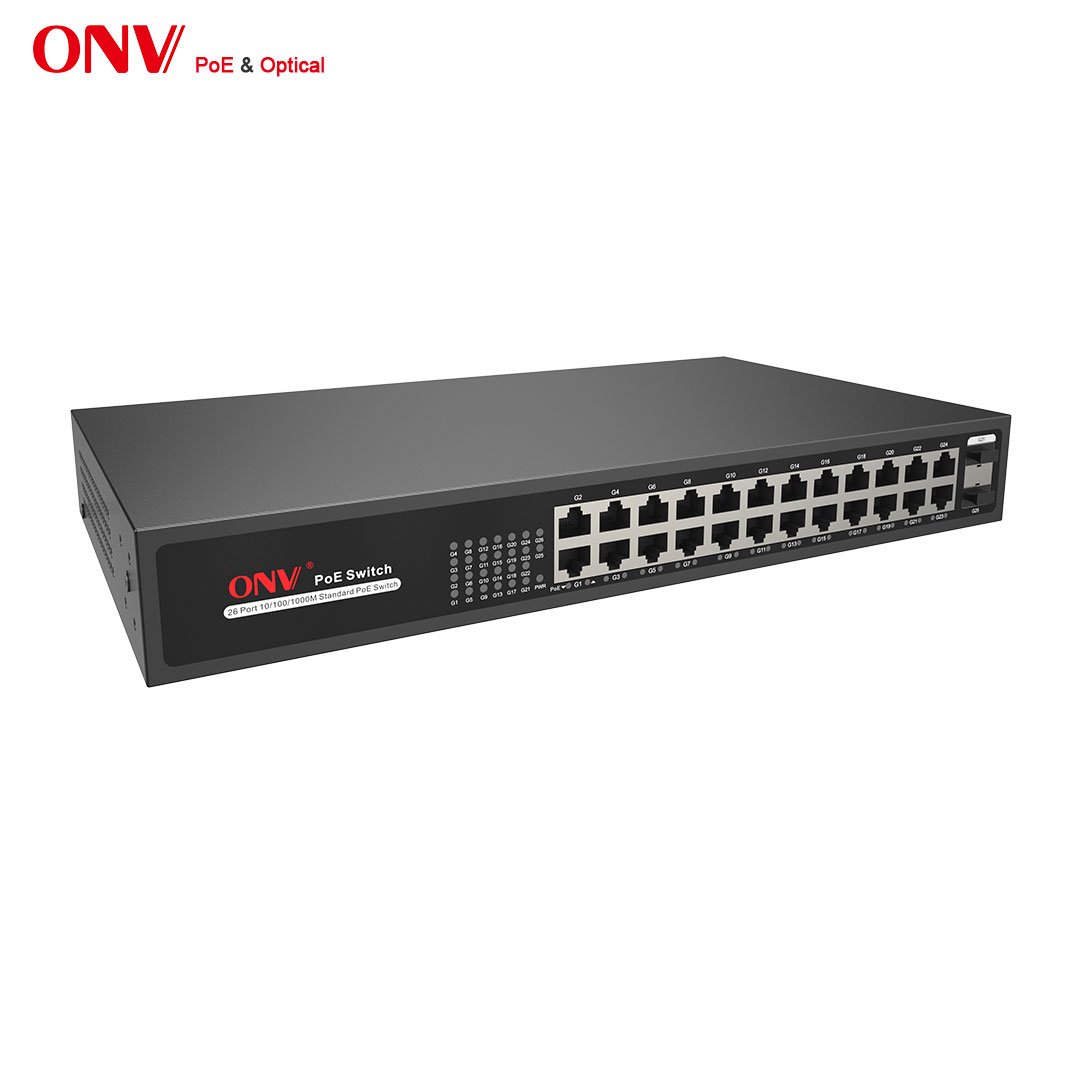

ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch
ONV-H3024PF is an unmanaged PoE fiber switch independently developed by ONV. It has 24*10/100/1000M adaptive RJ45 ports and 2*1000M uplink SFP ports. Port 1-24 can support IEEE 802.3 af/at PoE standard. Single port PoE power is up to 30W, and the max POE output power is 250W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy-efficient network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE of ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch
Full Gigabit port
◇ Support IEEE 802.3x full-duplex flow control and Backpressure.
◇ Support non-blocking wire-speed forwarding for smoother transmission.
◇ Support the combination of RJ45 ports and Gigabit SFP ports to facilitate flexible networking and meet the networking requirements of various scenarios.
Intelligent PoE power supply
◇ Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
◇ The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.
◇ 24*10/100/1000Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
Stable and reliable
◇ CCC, CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
◇ Low power consumption, with fan, galvanized steel casing, excellent heat dissipation to ensure the stable operation of the switch.
TECHNICAL SPECIFICATION
| Model | ONV-H3016PF | ONV-H3024PF |
| Interface Characteristics | ||
| Fixed Port |
16*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP ports (Data) |
24*10/100/1000Base-T PoE ports (Data/Power) 2*1000Base-X uplink SFP ports (Data) |
| Ethernet Port | Port 1-16/1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
| SFP Slot Port | Gigabit SFP optical fiber interface, default no include optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC) | |
| Optical Cable/ Distance | Multi-mode: 850nm/ 0-500m, Single-mode:1310nm/0-40km, 1550nm/ 0 -120km. | |
| Chip Parameter | ||
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 52Gbps (Non-blocking) | |
|
Forwarding Rate@64byte |
26.78Mpps | 38.69Mpps |
| MAC | 8K | |
| Buffer Memory | 4M | |
| Jumbo Frame | 10K | |
| LED Indicator |
Power: PWR (Green), Network: Link (Green), PoE: PoE (Green), Fiber: G1/G2(Green), POE: PoE(Green) |
|
| PoE & Power Supply | ||
| PoE Port | Port 1 to 16, IEEE802.3af/at | Port 1 to 24, IEEE802.3af/at |
| Power Supply Pin | Default 1/2 (+) 3/6 (-) | |
| Max Power Per Port | 30W, IEEE802.3af/at | |
| Total PWR / Input Voltage | 250W /(AC100-240V) | |
| Power Consumption | Standby: 15W,Full Load: 240W | Standby: 20W, Full Load: 250W |
| Power Supply | Built-in power adapter, AC 100~240V 50-60Hz 4.1A | |
| Physical Parameter | ||
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 270*181*44.5mm | 330*204*44mm |
| Net /Gross Weight | <1.7kg / <2.2kg | <3.0kg / <3.5kg |
| Installation | Desktop, Wall-mounted,19 inch 1U cabinet | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
What is the price of the ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch in Bangladesh in 2023?
The latest price of the ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch 25500 BDT. You can buy this ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber Switch us at the best price. You can either buy it through our website or directly visit our office.

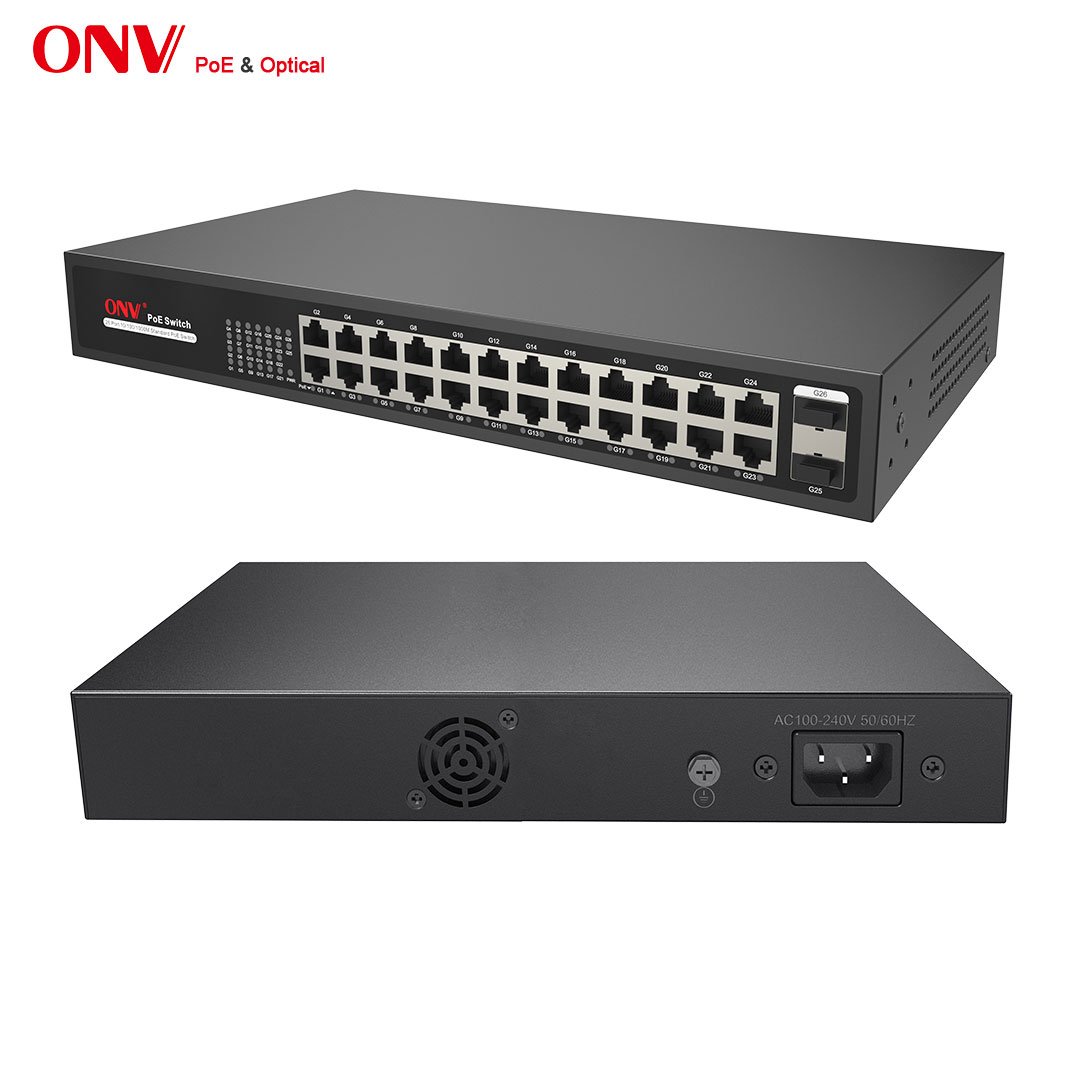

[caption id="attachment_981" align="aligncenter" width="1024"]
ONV H3024PF 26 Port Full Gigabit SFP PoE Fiber switch[/caption]
