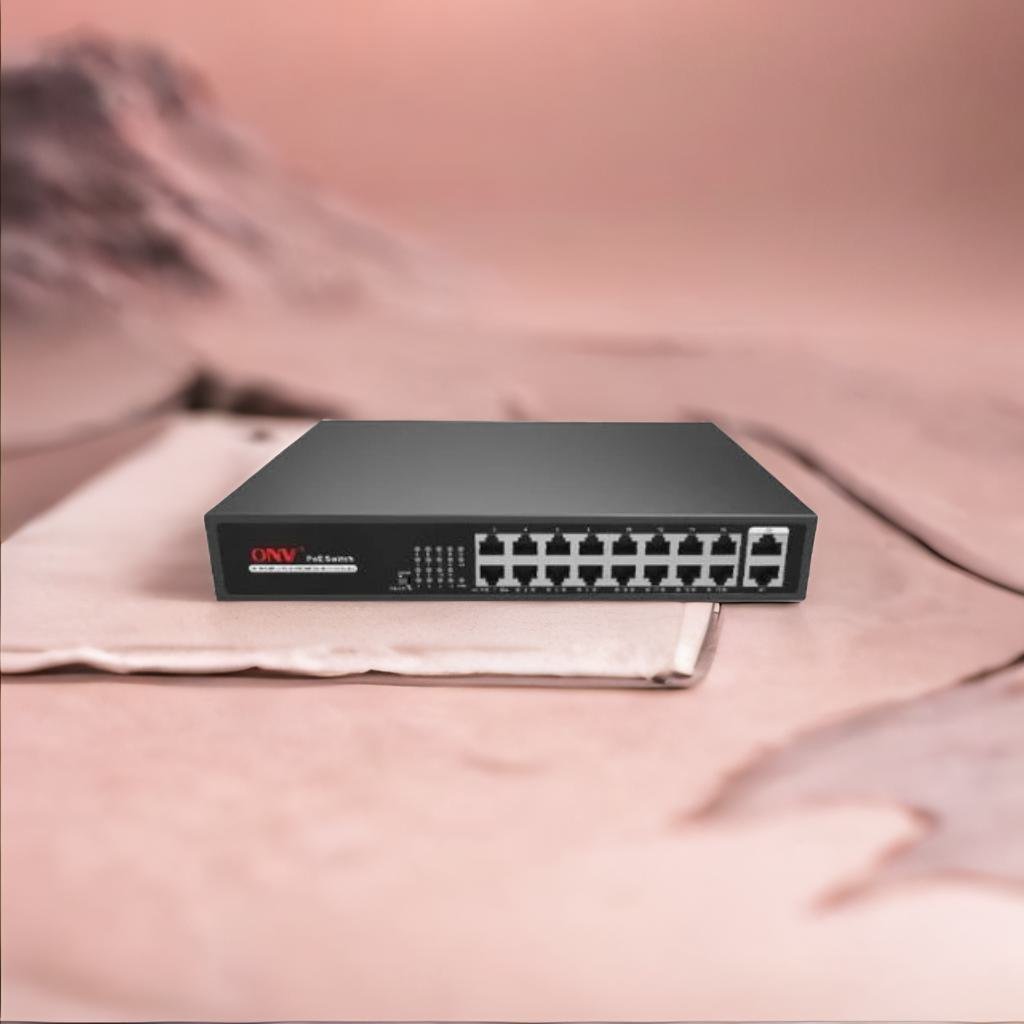

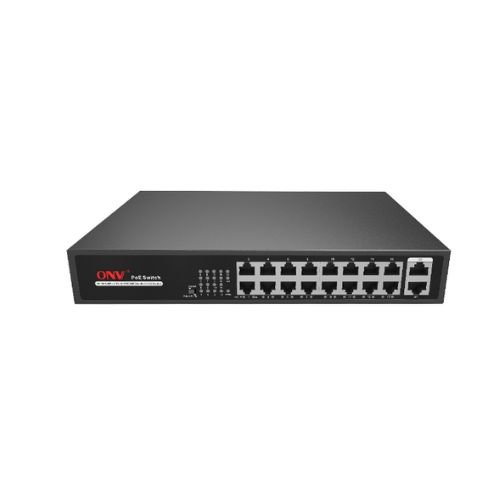

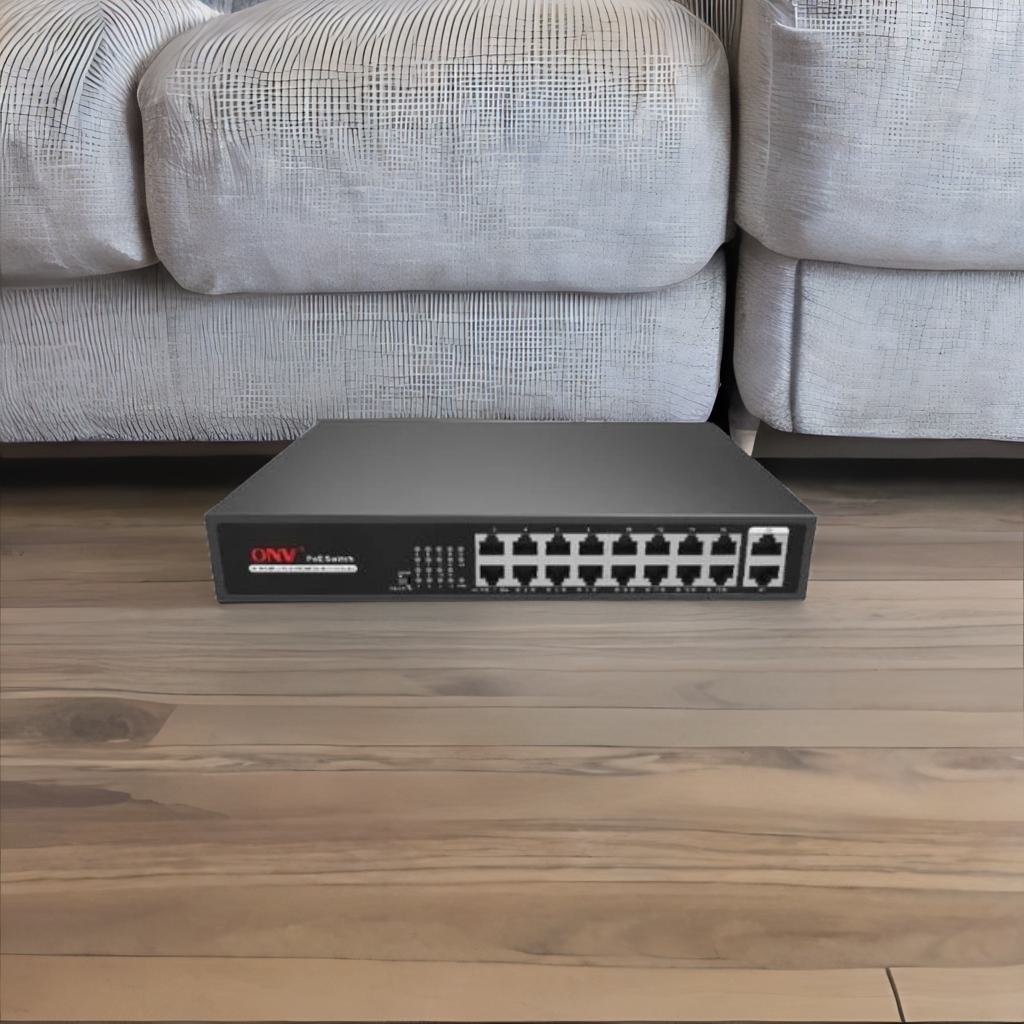

ONV H1024PS 24-port PoE switch gigabit uplink
The ONV H1024PS 24 port PoE switch independently developed by ONV. It has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.
TECHNICAL SPECIFICATION
| Model | ONV-H1016 | ONV-H1024 |
| Interface Characteristics | ||
| Fixed Port | 16*10/100Base-TX RJ45 ports (Data) | 24*10/100Base-TX RJ45 ports (Data) |
| Ethernet Port | 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
| Chip Parameter | ||
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 7.2Gbps (Non-blocking) | 8.8Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
2.38Mpps | 3.57Mpps |
| MAC | 16K | |
| Buffer Memory | 4M | |
| Jumbo Frame | 10K | |
| LED Indicator | Power: PWR (Green), Network: Link(Green) | |
| Power Supply | ||
| Total PWR / Input Voltage | <10W/(AC100-240V) | <15W/(AC100-240V) |
| Power Consumption | Standby<7W, Full Load<10W | Standby<8W, Full Load<15W |
| Power Supply | Built-in power supply, AC100~240V 50-60Hz 0.56A | |
| Physical Parameter | ||
| Operation TEMP/ Humidity | 0~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP/ Humidity | -40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 270*181*44.5mm | |
| Net /Gross Weight | <1.25kg /<1.6kg | |
| Installation | Desktop, Wall-mounted, 1U/19 inch | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us; Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
ONV H1024PS 24-port PoE switch can used:
It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy efficient network.
Unmanaged mode, plug, and play, no configuration, easy to use.
What is the Price of ONV H1024PS 24-port PoE switch in Bangladesh in 2023?
The latest price of ONV H1024PS 24 port PoE switch is 18500 BDT. You can buy ONV H1024PS 24 port PoE switch from us. To buy this product, You can buy it through our website or you can directly visit our office.
