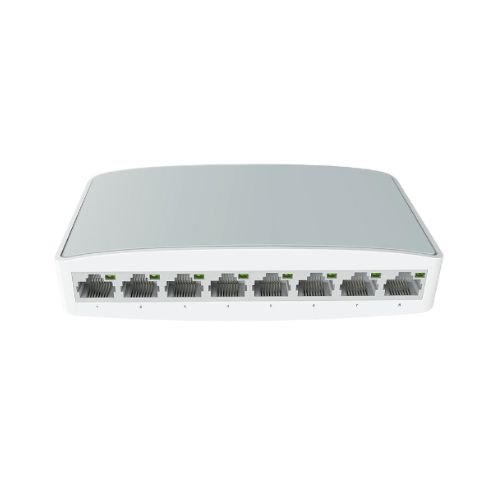

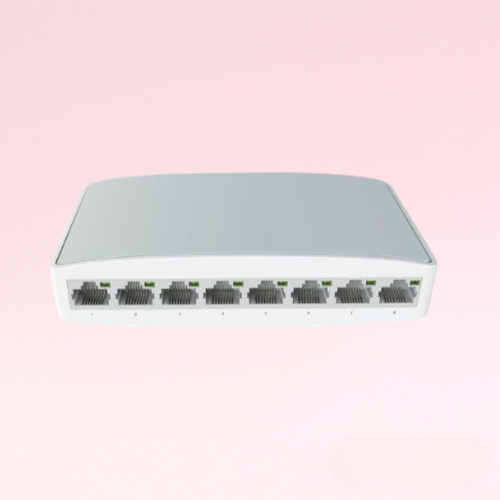

ONV H3008S Ethernet switch
The ONV-H3008S is an unmanaged gigabit Ethernet security switch independently developed by ONV. It has 8*10/100/1000Base-T RJ45 ports. The scheme of the large backplane and large cache switching chip is preferred to improve the forwarding rate of large files and effectively solve the problems of video freeze and picture loss in the high-definition surveillance environment. It is suitable for hotels, banks, campuses, factory quarters and small and medium-sized enterprises to establish a cost-effective network.
Unmanaged mode, plug and play, no configuration, simple and convenient to use.
TECHNICAL SPECIFICATION
| Model | ONV-H3005S | ONV-H3008S |
| Interface Characteristics | ||
| Fixed Port | 5*10/100/1000Base-T RJ45 ports (Data) | 8*10/100/1000Base-T RJ45 ports (Data) |
| Ethernet Port | 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption. | |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
| Chip Parameter | ||
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 10Gbps (Non-blocking) | 16Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
7.44Mpps | 11.9Mpps |
| MAC | 2K | |
| Buffer Memory | 2M | |
| Jumbo Frame | 9.2K | |
| LED Indicator | Power: PWR (Green), Network: Link/Act(Green) | |
| Power | ||
| Total PWR / Input Voltage | 5W/ (DC5V) | |
| Power Consumption | Standby<1W, Full Load<4W | Standby<1W, Full Load<5W |
| Power Supply | External power adapter, AC100~240V 50-60Hz 0.56A | |
| Physical Parameter | ||
| Operation TEMP / Humidity | 0~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 100*70*28mm | 140*78*32mm |
| Net /Gross Weight | <0.1kg /<0.25kg | <0.15kg /<0.3kg |
| Installation | Desktop, Wall-mounted | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC,CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
What is the Price of ONV H3008S Ethernet switch in Bangladesh in 2023?
The latest price of ONV H3008S switch is 2350 BDT. You can buy ONV H3008S Ethernet switch from us. To buy this product, You can buy it through our website or you can directly visit our office.
