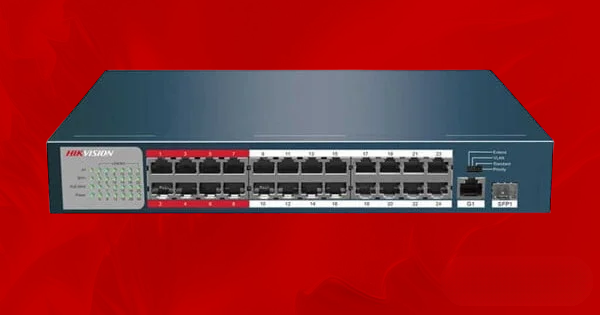

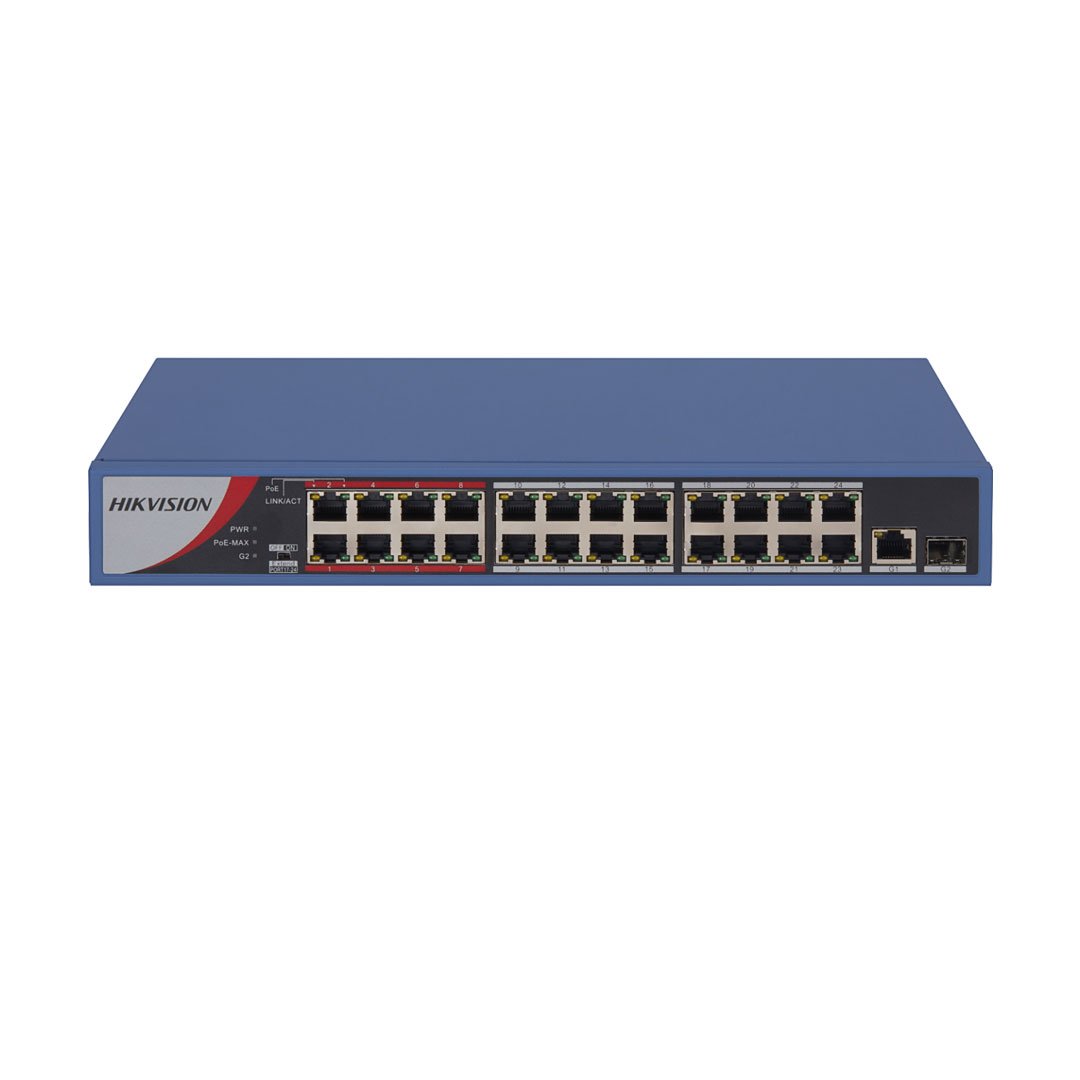

Hikvision 16 DS-3E0326P-E-M 24 Port POE Switch

Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch

• Network Parameters
• Port Number24 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• Working Mode Standard mode (default); Extend mode
• Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding Mode Store-and-forward switching
• Ports For Long-Distance Transmission Ports 17 to 24
• MAC Address Table4 K
• Internal Cache2.75 Mbits Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch
• Switching Capacity8.8 Gbps
• Packet Forwarding Rate6.547 Mpps
• High Priority PortsPorts 1 to 8

• PoE Power Supply
• PoE Standard IEEE 802.3af, IEEE 802.3at
• PoE Power Pin


  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE Port Ports 1 to 24
• Max. Port Power30 W
• PoE Power Budget230 W Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch

• Dialing Function
• Long Range Ports 17 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.

• General
• Dimension (W × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Storage Humidity5% to 95% (no condensation)
• Gross Weight3.33 kg (7.34 lb)
• Net Weight2.55 kg (5.6 lb)
• Power Consumption In Idle20 W
• Shell Metal material
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Operating Humidity5% to 95% (no condensation)
• Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
• Max. Power Consumption250 W
• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch
• Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006

The latest price of Hikvision DS-3E0326P-E/M(B) 24 Port Fast Ethernet Unmanaged POE Switch in Bangladesh is 19,000৳. You can buy the Hikvision DS-3E0326P-E/M(B) 24 Port Fast Ethernet Unmanaged POE Switch at the best price from our website or visit any of our showrooms.
