Description
| Interface Characteristics | |
| Fixed Ports | 24 * 10/100/1000Base-T PoE ports (Data/Power) |
| Uplink Ports | 2 * 1000Base-X uplink SFP ports (Data) |
| Ethernet Port Speed | Port 1-16: 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| – Port 17-24: 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
| Twisted Pair Transmission | 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| – 1000BASE-T: Cat5e or later UTP(≤100 meter) | |
| SFP Slot Port | Gigabit SFP optical fiber interface, optional single-mode/multi-mode modules (LC) |
| Optical Cable Distance | Multi-mode: 850nm / 0 ~ 550M, Single-mode: 1310nm / 0 ~ 40KM, 1550nm / 0 ~ 120KM |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T |
| – IEEE802.3z 1000Base-X; IEEE802.3x | |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 52Gbps (Non-blocking) |
| Forwarding Rate @ 64byte | 26.78Mpps- 38.69Mpps |
| MAC Table | 8K |
| Buffer Memory | 4M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR (green), Network: Link (green), PoE: PoE (green), Fiber: G1/G2 (green)/ Additional PoE LED for ports 17–24 |
| PoE & Power Supply | |
| PoE Port | Port 1-16 and 17-24: IEEE802.3af/at @ PoE |
| Power Supply Pin | Default 1/2 (+), 3/6 (-) |
| Max Power Per Port | 30W; IEEE802.3af/at |
| Total Power / Input Voltage | 250W / (AC100-240V) |
| Power Consumption | Standby <15W, Full Load <240W |
| Standby <20W, Full Load <250W | |
| Power Supply | Built-in power supply, AC 100~240V 50-60Hz 4.1A |
| Physical Parameter | |
| Operation Temperature / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage Temperature / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (LWH) | 27018144.5mm |
| 33020444mm (with mounting ears) | |
| Net /Gross Weight | <1.7kg / <2.2kg |
| <3.0kg / <3.5kg (with accessories) | |
| Installation | Desktop, wall mounted, 19 inch 1U cabinet |
| Certification & Warranty | |
| Lightning Protection / Protection Level | Lightning protection: 4KV 8/20us; Protection level: IP30 |
| Certification | CCC, CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Warranty | 1 year, lifelong maintenance |

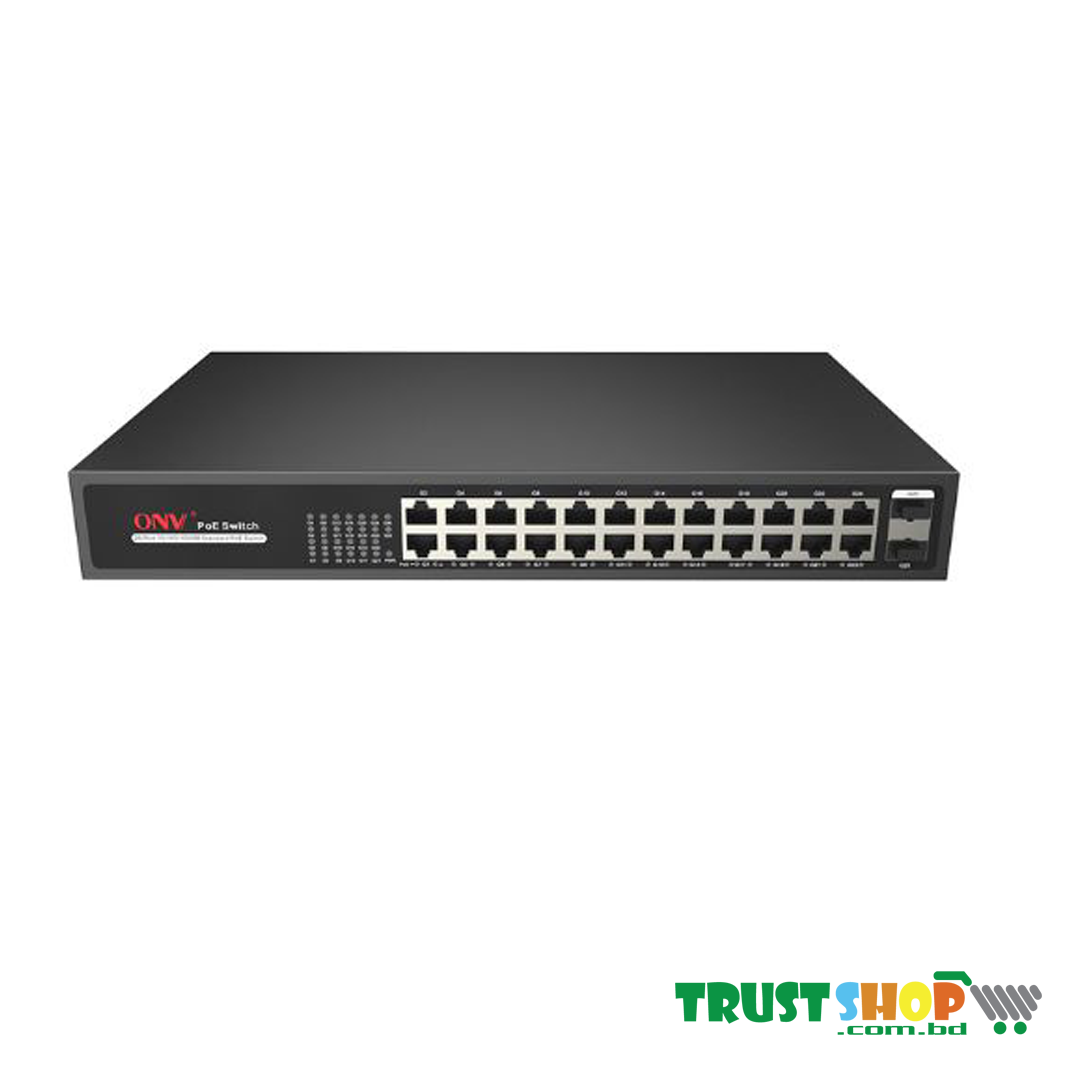

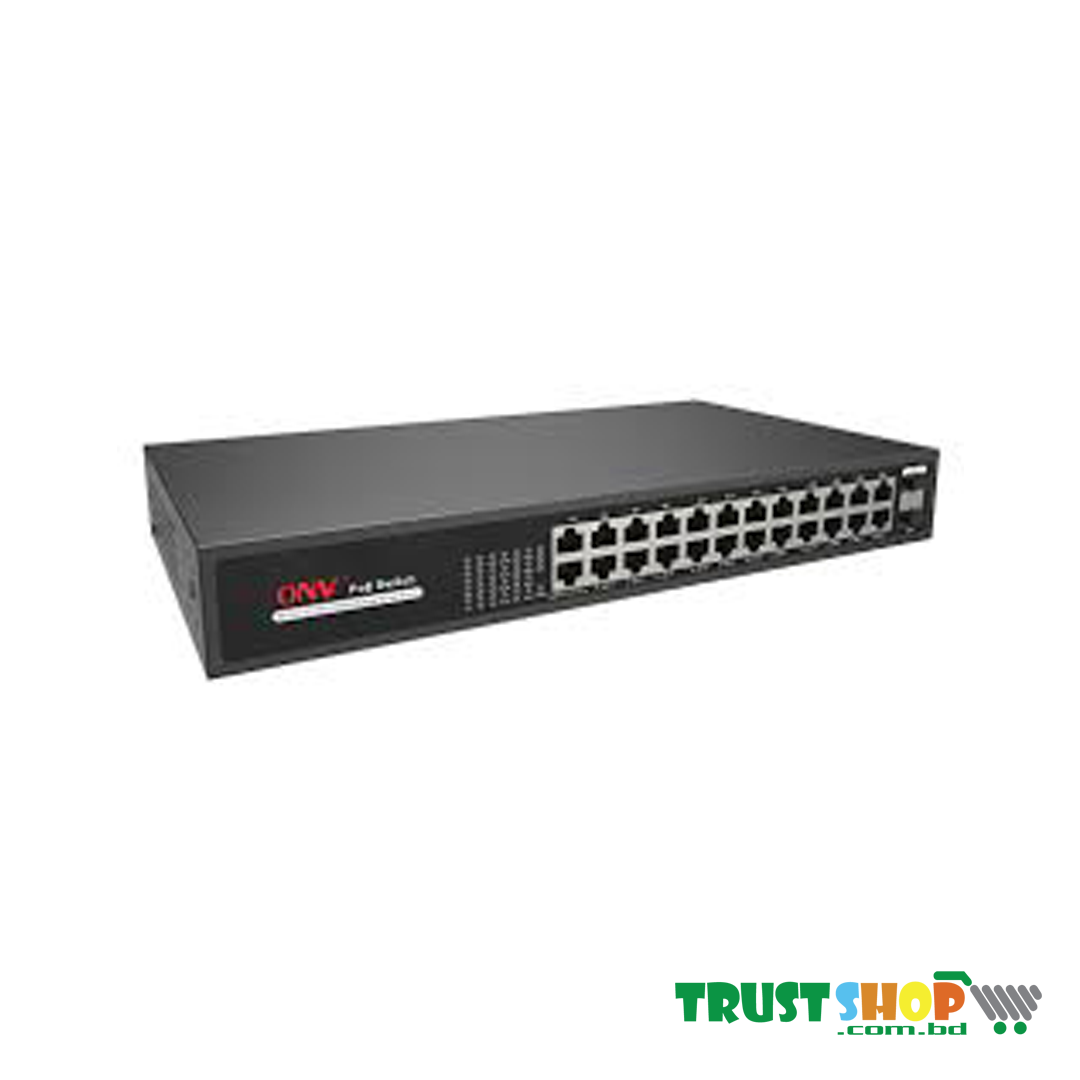

ONV-H3024PFS 26 Port Full Gigabit PoE Fiber Switch
The ONV-H3024PFS 26 Port Full Gigabit PoE Fiber Switch is a powerhouse 26-port PoE fiber switch designed for blazing-fast speeds, flexible connectivity, and reliable power. Whether you’re managing a hotel’s security system, powering campus Wi-Fi, or supporting VoIP phones in your enterprise, the ONV-H3024PFS delivers uncompromising performance in a simple, plug-and-play package. The 24 full Gigabit RJ45 ports and 2 Gigabit SFP uplink ports provide lightning-fast data transfer for bandwidth-intensive applications like streaming video, video conferencing, and real-time data processing. Up to 30W per port and a total 250W PoE budget support even the most power-hungry devices.
What is the price of the ONV-H3024PFS 26 Port Full Gigabit PoE Fiber Switch in Bangladesh in 2023?
The latest price of the ONV-H3024PFS 26 Port Full Gigabit PoE Fiber Switch 24500 BDT. You can buy this ONV 26 Port Full Gigabit PoE Fiber Switch us at the best price. You can either buy it through our website or directly visit our office. Our Office
