Model
|

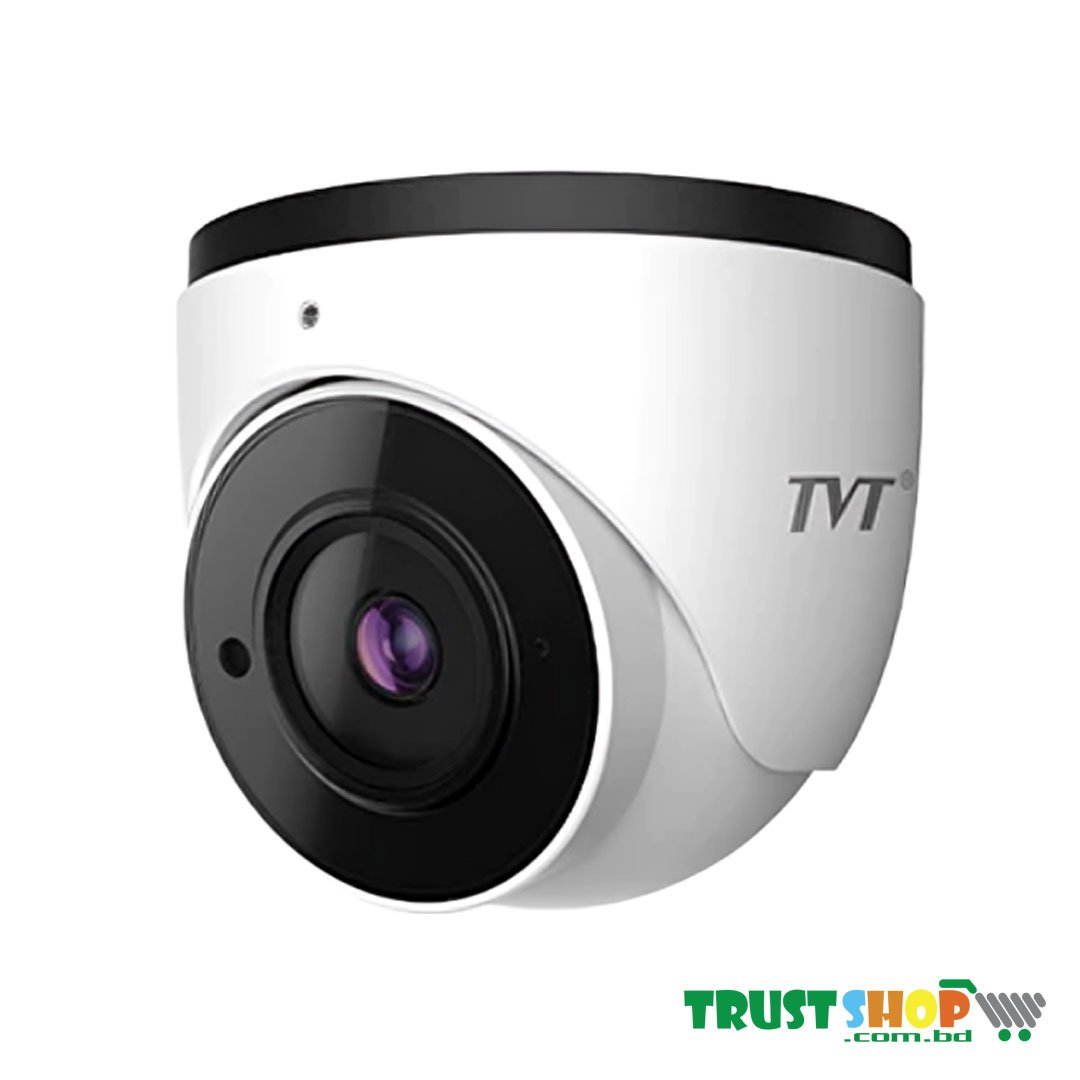

TVT TD-9544S3B 4MP IR Water-proof Dome IP Camera
|
| Camera |
| Image Sensor |
1 / 2.7 “CMOS |
| Image Size |
2560×1440 |
| Electronic Shutter |
1 s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Min. Illumination |
0.011 lux @F1.2, AGC ON; 0 lux with IR |
| 0.04 lux @ F2.2, AGC ON; 0 lux with IR |
| Lens |
2.8mm@F2.0, Horizontal FoV: 110°; Vertical FoV:77.6°; Diagonal FoV:117° 3.6mm@F2.2, Horizontal FoV: 89°; Vertical FoV:58°; Diagonal FoV:97° |
| Focus |
Fixed |
| Lens Mount |
M12 |
| Day&Night |
ICR |
| Wide Dynamic Range |
Digital WDR |
| BLC |
Yes |
| HLC |
Yes TVT TD-9544S3B 4MP IR Water-proof Dome IP Camera |
| Defog |
Yes |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~360°; Tilt:0°~75°;Rotation: 0°~360° |
| Image |
| Video Compression |
H.265 / H.264 |
| H.265 Compression Standard |
Main Profile@Leve4.1 High Tier |
| Resolution |
4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream |
60Hz : 4MP/3MP/1080P(1~30fps); 50Hz : 4MP/3MP/1080P(1~25fps) |
| Sub Stream |
60Hz : 720P(1~15fps)/D1(1~30fps)/CIF (1~30fps); |
| 50Hz: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps); |
| Third Stream |
60Hz : D1/CIF/480×240 (1~30fps); 50Hz: D1/CIF/480×240 (1~25fps) |
| Bit Rate |
64 Kbps ~ 5 Mbps |
| Bit Rate Type |
VBR / CBR |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Interfaces |
| Network |
RJ45 TVT TD-9544S3B 4MP IR Water-proof Dome IP Camera |
| Video Output |
No |
| Audio |
1CH Built-in MIC |
| Storage |
Built-in micro SD card slot, up to 128GB |
| Reset |
Yes |
| Functions |
| Remote Monitoring |
Web browsing, CMS remote control |
| Online Connection |
Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection, SD card full, SD card error |
| Smart Events |
Object removal (object left/missing detection), scene change and video blur detection, intrusion and line crossing |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE |
Yes |
| IR Distance |
20 ~ 30m |
| Ingress Protection |
IP67 TVT TD-9544S3B 4MP IR Water-proof Dome IP Camera |
| Others |
| Power Supply |
DC12V/PoE |
| Power Consumption |
< 5.5W |
| Operating Environment |
– 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) |
Ø 94.6 × 82.8 |
| Weight ( net ) |
Approx. 0.45KG TD-9544S3B |
| Installation |
Ceiling mounting ( Wall mounting available with the junction box and bracket ) |
| Certificate |
CE, FCC TVT TD-9544S3B 4MP IR Water-proof Dome IP Camera |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
