Model
|

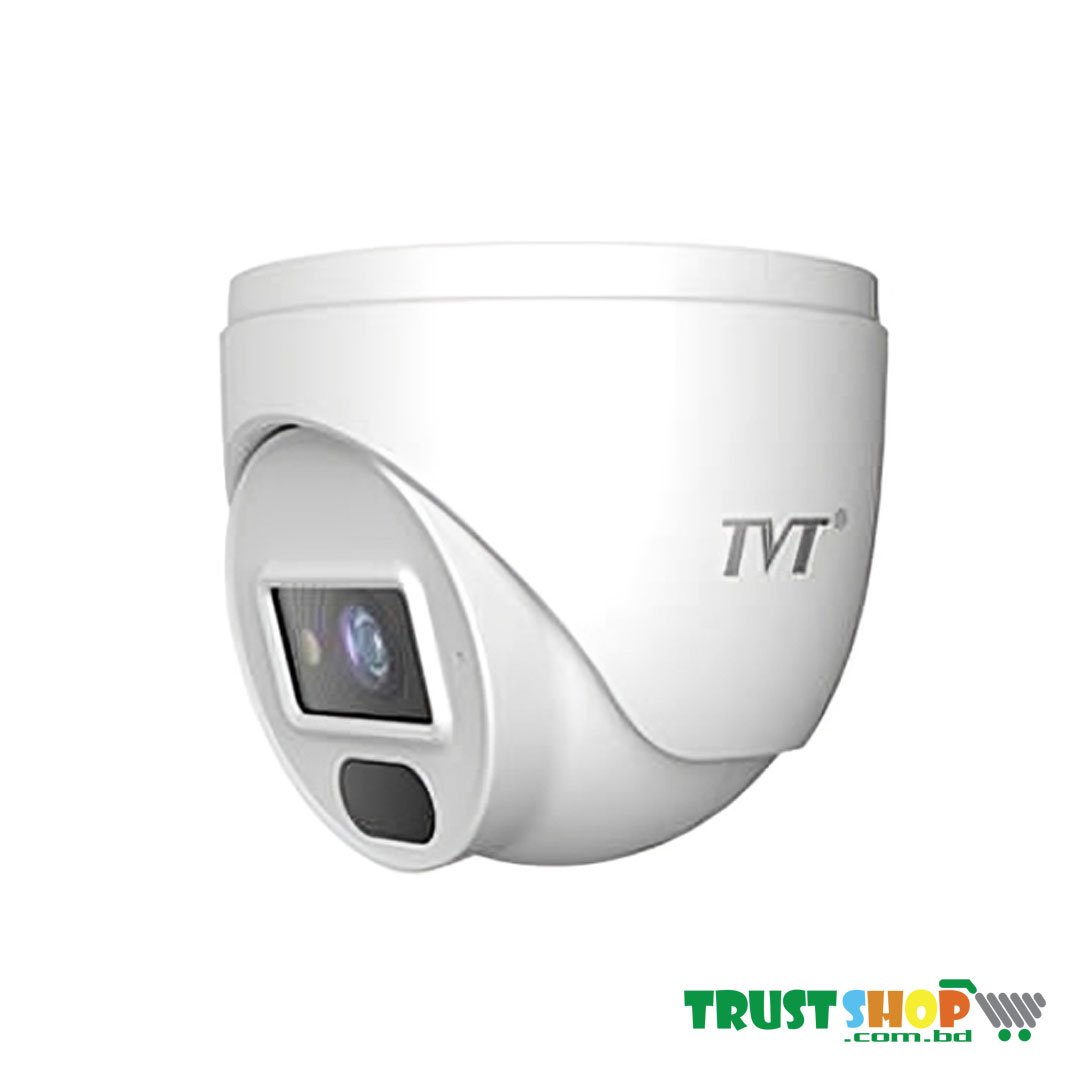

TVT TD-9524S3BL 2MP IR Turret IP Camera
|
| Camera |
| Image Sensor |
1 / 2.8″CMOS |
| Image Size |
1920×1080 |
| Electronic Shutter |
1 s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Min. Illumination |
0.0126lux @F1.2, AGC ON; 0 lux with IR |
| 0.0462 lux @ F2.2, AGC ON; 0 lux with IR |
| Lens |
2.8 mm @F2.2, H.FoV: 97.8°; V.FoV:52.9°; D.FoV:117.9° |
| 3.6 mm @F2.2, H.FoV: 82.5°; V.FoV:44.9°; D.FoV:99.3° |
| Focus |
Fixed TVT TD-9524S3BL 2MP IR Turret IP Camera |
| Lens Mount |
M12 |
| Wide Dynamic Range |
Digital WDR |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Image |
| Video Compression |
H.265 / H.264 |
| H.265 Compression Standard |
Main Profile@Leve4.1 High Tier |
| Resolution |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF |
| Main Stream |
60Hz : 1080P/720P(1~30fps); 50Hz : 1080P/720P(1~25fps) |
| Sub Stream |
60Hz : D1/CIF(1~30fps); 50Hz: D1/CIF/(1~25fps) |
| Bit Rate |
64 Kbps ~ 4 Mbps |
| Bit Rate Type |
VBR / CBR |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Audio Compression |
G711A/U |
| Interfaces |
| Network |
RJ45 |
| Video Output |
No |
| Audio |
1CH built-in MIC |
| Storage |
No |
| Reset |
No TVT TD-9524S3BL 2MP IR Turret IP Camera |
| Functions |
| Remote Monitoring |
Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Online Connection |
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage |
| Smart Alarm |
Motion detection |
| Intelligent Analytics |
Region intrusion detection, video blur detection, scene change detection, line crossing detection |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE |
Yes, IEEE802.3af |
| IR Distance |
10 ~ 20m |
| Ingress Protection |
IP67 |
| DORI Distance |
| Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8mm |
43.42m(142.45ft) |
17.37m(56.98ft) |
8.68m(28.47ft) |
4.34m(14.23ft) |
| 3.6mm |
52.28m(171.52ft) |
20.91m(68.6ft) |
10.46m(34.31ft) |
5.23m(17.15ft) TD-9524S3BL |
| Others |
| Power Supply |
DC12V(PoE power supply optional) |
| Power Consumption |
< 4 W |
| Operating Environment |
– 20 °C ~ 55 °C (-4°F~131°F) |
| Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) |
Φ 94.8 × 82.8 |
| Weight ( net ) |
Approx. 0.287KG |
| Installation |
Ceiling mounting ( Wall mounting available with the junction box and bracket ) |
| Certificate |
CE, FCC TVT TD-9524S3BL 2MP IR Turret IP Camera |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
