Model
|

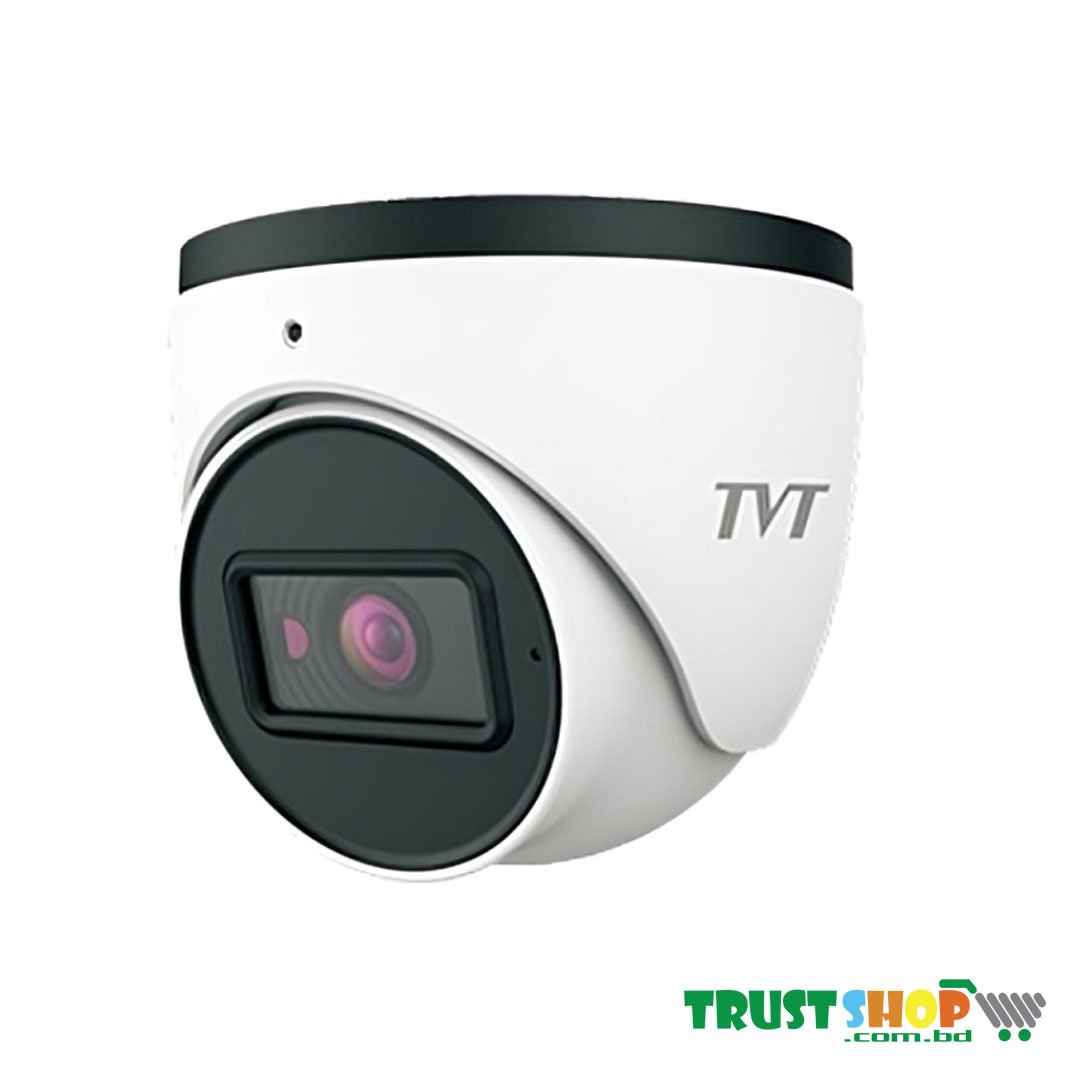

TVT TD-9524S3B 2MP IR IP Camera
|
| Camera |
| Image Sensor |
1 / 2.8 “CMOS |
| Image Size |
1920 × 1080 |
| Electronic Shutter |
1 s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Min. Illumination |
0.0035 lux@F1.2,AGC ON; 0 lux with IR |
| 0.009 lux@F1.6,AGC ON; 0 lux with IR |
| Lens |
2.8 mm @F1.6, H.FoV: 103.7°, V.FoV:55.1°, D.FoV:124° |
| 3.6 mm @F1.6, H.FoV: 86.1°, V.FoV:43.7°, D.FoV:103° |
| Focus |
Fixed TVT TD-9524S3B 2MP IR IP Camera |
| Lens Mount |
M12 |
| Wide Dynamic Range |
Digital WDR |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes TVT TD-9524S3B 2MP IR IP Camera |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Image |
| Video Compression |
H.265 / H.264 |
| H.265 Compression Standard |
Main Profile@ Leve4.1 High Tier |
| Resolution |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream |
60Hz : 1080P / 720P( 1 ~ 30fps ); 50Hz : 1080P/ 720P( 1 ~ 25fps ) |
| Sub Stream |
60Hz : D1/CIF (1~30fps); 50HZ: D1/CIF (1~25fps) |
| Third Stream |
60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps) |
| Bit Rate |
64 Kbps ~ 6 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Interfaces |
| Network |
RJ 45 |
| Video Output |
No TVT TD-9524S3B 2MP IR IP Camera |
| Audio |
Built-in MIC × 1 |
| Storage |
Built-in micro SD card slot; up to 128GB |
| Hardware Reset |
Yes |
| Functions |
| Remote Monitoring |
Web browsing,CMS remote control |
| Online Connection |
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, HTTP, FTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection, SD card error, SD card full |
| Intelligent Analytics |
Video blur detection, scene change detection, line crossing detection and region intrusion detection, object removal detection(object left/missing) |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE |
Optional ( IEEE802.3af) |
| IR Distance |
20 ~30 m |
| Ingress Protection |
IP 67 TVT TD-9524S3B 2MP IR IP Camera |
| Others |
| Power Supply |
DC12V(PoE power supply optional) |
| Power Consumption |
< 5.5W |
| Operating Environment |
– 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) |
Φ 94.6 × 82.8 |
| Weight ( net ) |
Approx. 0.45KG |
| Installation |
Ceiling mounting (wall mounting available with the junction box and bracket) |
| Certificate |
CE, FCC TVT TD-9524S3B 2MP IR IP Camera |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
