Model
|

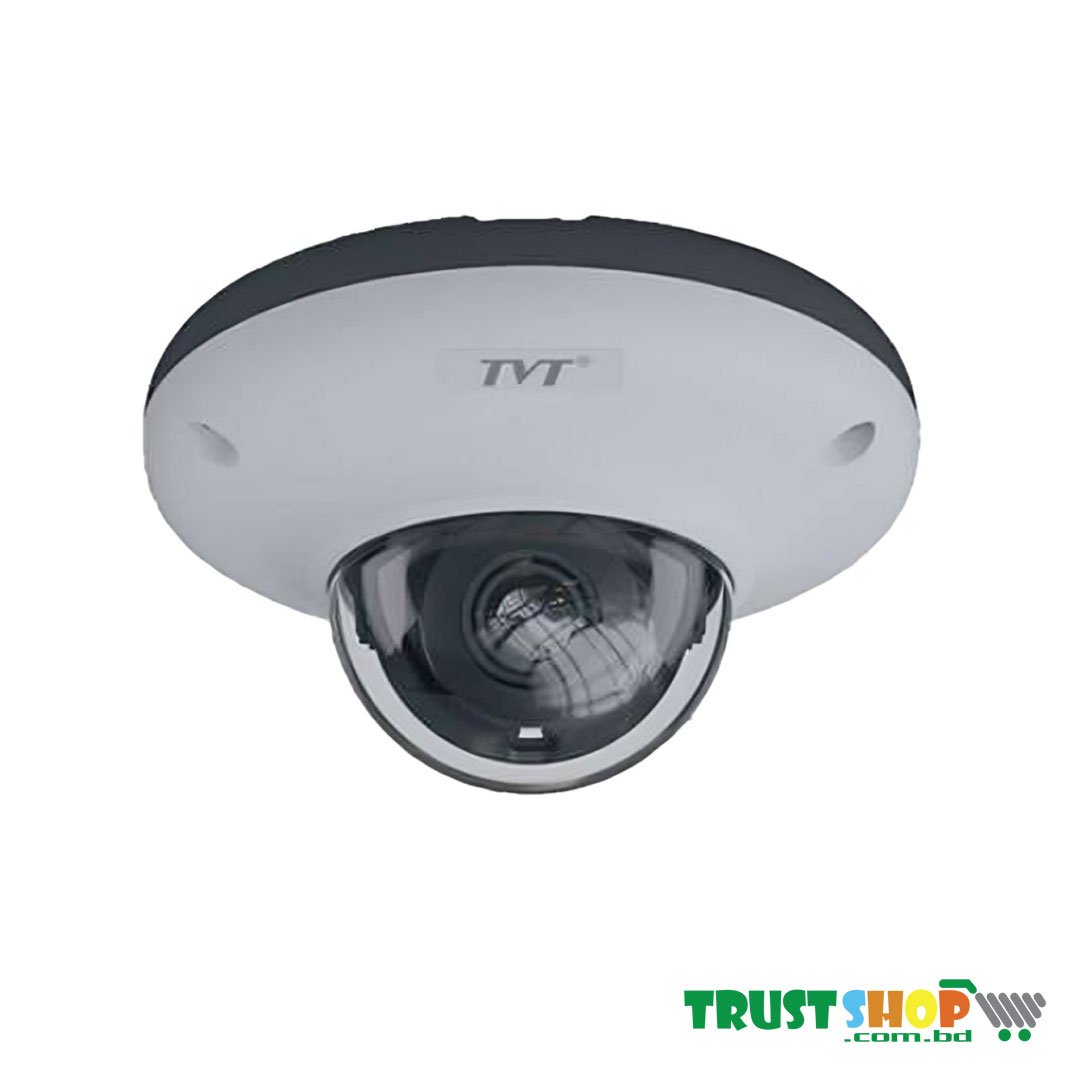

TVT TD-9527E3 2MP IR Starlight IP Camera
|
| Camera |
| Image Sensor |
1 / 2.8″ CMOS |
| Image Size |
1920 × 1080 |
| Electronic Shutter |
1 / 2 s ~ 1 / 100000 s |
| Iris Type |
Fixed Iris |
| Min. Illumination |
0.005 lux@F1.6,AGC ON; 0 lux with IR |
| Lens |
2.8 mm@F1.6, horizontal FoV: 101.5°; vertical FoV: 54.6°; diagonal FoV:117° |
| 3.6 mm@F1.6, horizontal FoV: 78.9°; vertical FoV: 45.5°; diagonal FoV:101° |
| Focus |
Fixed |
| Lens Mount |
M12 |
| Day& Night |
ICR TVT TD-9527E3 2MP IR Starlight IP Camera |
| Wide Dynamic Range |
120dB |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes TVT TD-9527E3 2MP IR Starlight IP Camera |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~360°; Tilt:0°~70°; Rotation: 0°~350° |
| Image |
| Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 |
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream |
60Hz:1080P/720P(1 ~ 30fps ); 50Hz:1080P / 720P( 1 ~ 25fps ) |
| Sub Stream |
60Hz:720P/D1/CIF (1~30fps); 50Hz:720P/D1/CIF (1~25fps) |
| Third Stream |
60Hz:D1/CIF /480×240 (1~30fps); 50Hz:D1/CIF/480×240 (1~25fps) |
| Bit Rate |
64 Kbps ~ 6 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U TD-9527E3 |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, Image Flip, Image Mirror, etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Interfaces |
| Network |
RJ 45 |
| Video Output |
No |
| Audio |
1CH audio input; Built-in MIC × 1 |
| Storage |
Built-in micro SD card slot; up to 256GB |
| Reset |
Yes |
| Alarm |
No |
| Intelligent Analytics (Smart Events) |
| Perimeter Protection |
Line crossing, region intrusion/entrance/exiting (human/motor vehicle/ non-motor vehicle classification) |
| Statistics |
Target counting by line/area, heat map |
| Exception Detection |
Scene change, video blur and video cast detection |
| Face Detection |
Face detection and face capture |
| Other Events |
Abandoned/missing object detection, crowd density detection |
| DORI Distance |
| Lens |
Detect |
Observe |
Recognize |
Identify |
| 2.8mm |
41.49m(136.12ft) |
16.60m(54.46ft) |
8.30m(27.23ft) |
4.15m(13.61ft) |
| 3.6mm |
50.89m(166.96ft) |
20.35m(66.76ft) |
10.18m(33.39ft) |
5.09m(16.69ft) |
| Functions |
| Remote Monitoring |
Web Browser/TVT NVMS2.0/NVR/mobile APP |
| Web Browser |
IE(plug-in required)/Google Chrome/Edge/Firefox/Safari |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection, SD card error, SD card full |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern |
| PoE |
Yes , IEEE802.3af |
| IR Distance |
10 ~ 20 m |
| Ingress Protection |
IP 66 TVT TD-9527E3 2MP IR Starlight IP Camera |
| Others |
| Power Supply |
DC12V/PoE |
| Power Consumption |
< 6W |
| Storage Conditions |
– 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating Conditions |
– 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Φ |
| Dimensions ( mm ) |
110 × 59.8 TVT TD-9527E3 2MP IR Starlight IP Camera |
| Weight ( net ) |
Approx. 0.38KG |
| Installation |
Ceiling mounting; Wall mounting |
| Certificate |
CE, FCC |
| Environmental Protection |
Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
