Model
|

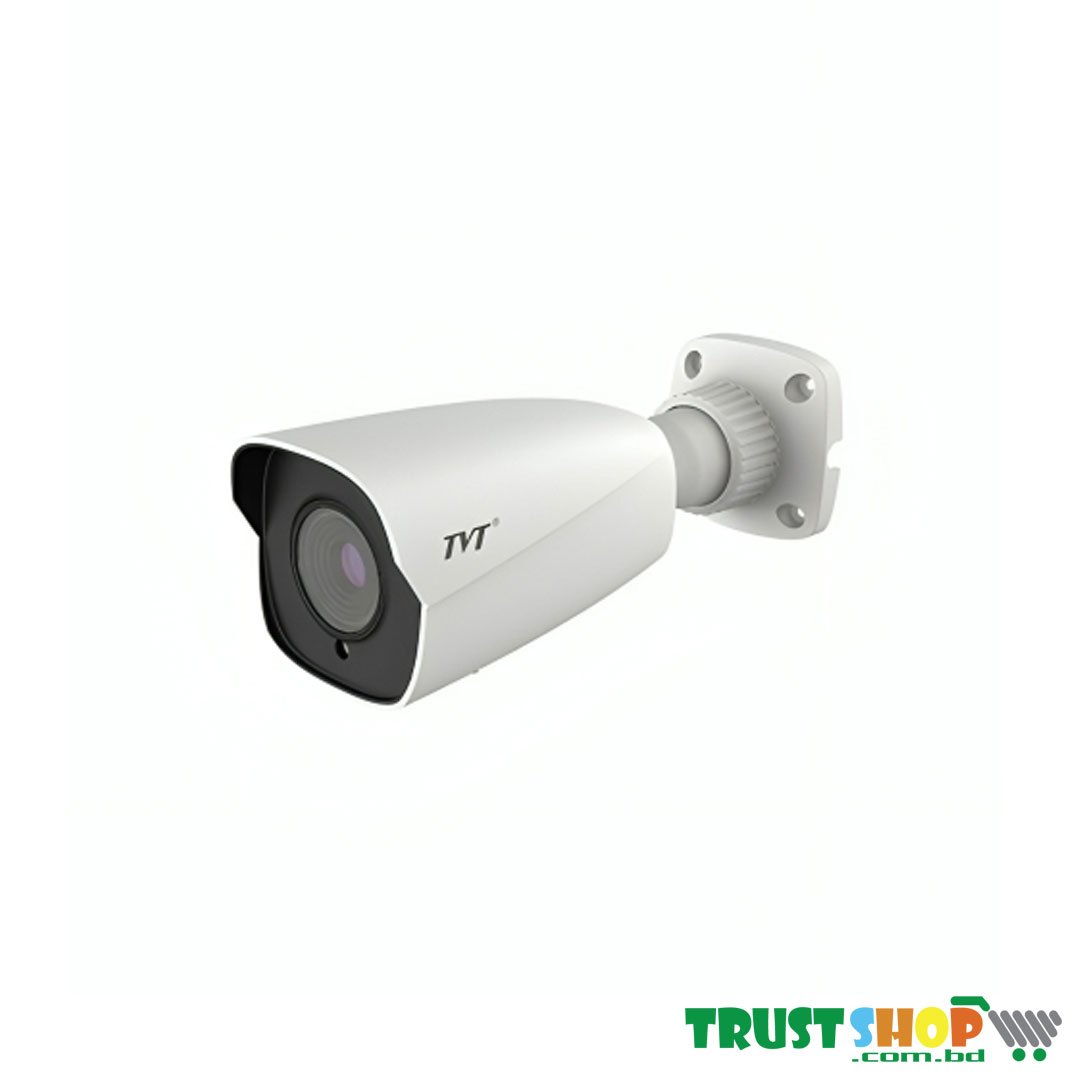

TVT TD-9441E3 4MP IP Camera
|
Camera |
Image Sensor |
1 / 3 “CMOS |
Image Size |
2592 × 1520 |
Electronic Shutter |
1 /3s ~ 1 / 100000 s |
Iris Type |
Fixed Iris |
Min. Illumination |
0.005 lux@F1.6,AGC ON;0 lux with IR |
Lens |
2.8 mm@F1.6, Horizontal FoV: 95.3°; vertical FoV: 53.2°; diagonal FoV:100.7° |
3.6 mm@F1.6, Horizontal FoV: 78.8°; vertical FoV: 42.3°; diagonal FoV:100.2° |
Focus |
Fixed |
Lens Mount |
M12 |
Day & Night |
ICR TVT TVT TD-9441E3 4MP IP Camera |
Wide Dynamic Range |
120dB |
BLC |
Yes |
HLC |
Yes |
Defog |
Yes |
Digital NR |
3D DNR |
Angle Adjustment |
Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
Image |
Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 |
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
Resolution |
4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
Main Stream |
4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
Sub Stream |
720P/D1/CIF ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
Third Stream |
D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
Bit Rate |
64 Kbps ~ 8 Mbps |
Bit Rate Type |
VBR / CBR |
Audio Compression |
G711A / U |
Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
ROI |
Each ROI to be configured separately TVT TD-9441E3 4MP IP Camera |
Intelligent Analytics (Smart Events) |
Perimeter Protection |
Line crossing, region entrance/exiting/intrusion (human/motor vehicle/ non-motor vehicle classification) |
Statistics |
Target counting by line/area, heat map |
Exception Detection |
Scene change, video blur and video cast detection |
Face Detection |
Face detection and face capture |
Other Events |
Abandoned/missing object detection |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8mm |
60.69m(199.11ft) |
24.28m(79.65ft) |
12.14m(39.82ft) |
6.07m(19.91ft) |
3.6mm |
75.24m(246.82ft) |
30.10m(98.75ft) |
15.05m(49.37ft) |
7.52m(24.67ft) |
Interfaces |
Network |
RJ45 |
Video Output |
No |
Audio |
1CH audio input |
Storage |
Built-in micro SD card slot; up to 256GB |
Reset |
Yes |
Alarm |
No TVT TD-9441E3 4MP IP Camera |
Functions |
Remote Monitoring |
Web Browser/TVT NVMS2.0/NVR/mobile APP |
Web Browser |
IE(plug-in required)/Google Chrome/Edge/Firefox/Safari |
Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS |
Interface Protocol |
ONVIF |
Storage |
Network remote storage; micro SD card storage |
Smart Alarm |
Motion detection, SD card error, SD card full |
General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction, corridor pattern |
PoE |
Yes , IEEE802.3af |
IR Distance |
20 ~ 30 m |
Ingress Protection |
IP67 |
Others |
Power Supply |
DC12V/PoE |
Power Consumption |
< 6W |
Storage Conditions |
– 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
Operating Conditions |
– 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
Dimensions ( mm ) |
167.5 × 74. 5 × 74. 5 |
Weight ( net ) |
Approx. 0.423KG TVT TD-9441E3 4MP IP Camera |
Installation |
Ceiling mounting; Wall mounting |
Certificate |
CE, FCC |
Environmental Protection |
Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
