Description
Model |

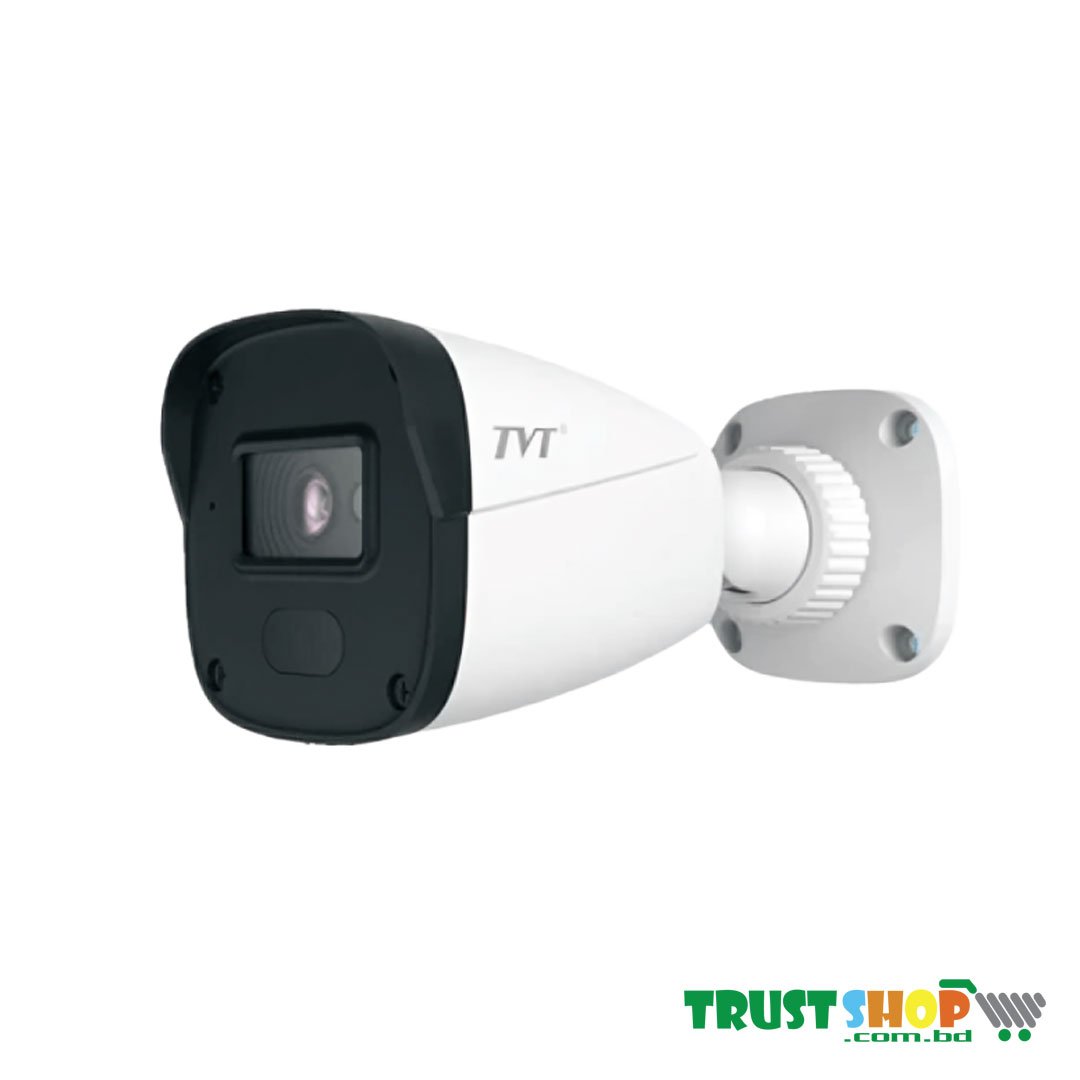

TVT TD-9441S3B 4MP IP Camera |
| Camera | |
| Image Sensor | 1 / 2.7 “CMOS |
| Image Size | 2560×1440 |
| Electronic Shutter | 1 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris TVT TD-9441S3B 4MP IP Camera |
| Min. Illumination | 0.011 lux @F1.2, AGC ON; 0 lux with IR |
| 0.04 lux @ F2.2, AGC ON; 0 lux with IR | |
| Lens | 2.8mm@F2.0, Horizontal FoV: 110°;Vertical FoV:77.6;Diagonal FoV:117° 3.6mm@F2.2, Horizontal FoV: 89°;Vertical FoV:58°;Diagonal FoV:97° |
| Focus | Fixed |
| Lens Mount | M12 |
| Day&Night | ICR |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes TVT TD-9441S3B 4MP IP Camera |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°;Rotation: 0°~360° |
| Image | |
| Video Compression | H.265 / H.264 |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz: 4MP/3MP/1080P(1~30fps); 50Hz: 4MP/3MP/1080P(1~25fps) |
| Sub Stream | 60Hz: 720P(1~15fps)/D1(1~30fps)/CIF (1~30fps); |
| 50Hz: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps); | |
| Third Stream | 60Hz : D1/CIF/480×240 (1~30fps); 50Hz: D1/CIF/480×240 (1~25fps) |
| Bit Rate | 64 Kbps ~ 5 Mbps |
| Bit Rate Type | VBR / CBR |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Video Output | No |
| Audio | No TVT TD-9441S3B 4MP IP Camera |
| Storage | Built-in micro SD card slot, up to 128GB |
| Reset | Yes |
| Functions | |
| Remote Monitoring | Web browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, SD card full, SD card error |
| Smart Events | Object removal (object left/missing detection), scene change and video blur detection, intrusion and line crossing |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| PoE | Yes |
| IR Distance | 20 ~ 30 m |
| Ingress Protection | IP67 |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 5W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) | |
| Dimensions ( mm ) | 167.5 × 74.5 × 74.5 TVT TD-9441S3B 4MP IP Camera |
| Weight ( net ) | Approx. 0.38KG |
| Installation | Ceiling mounting; Wall mounting |
| Certificate | CE, FCC |
| Environmental Protection |
Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
|
