Model
|

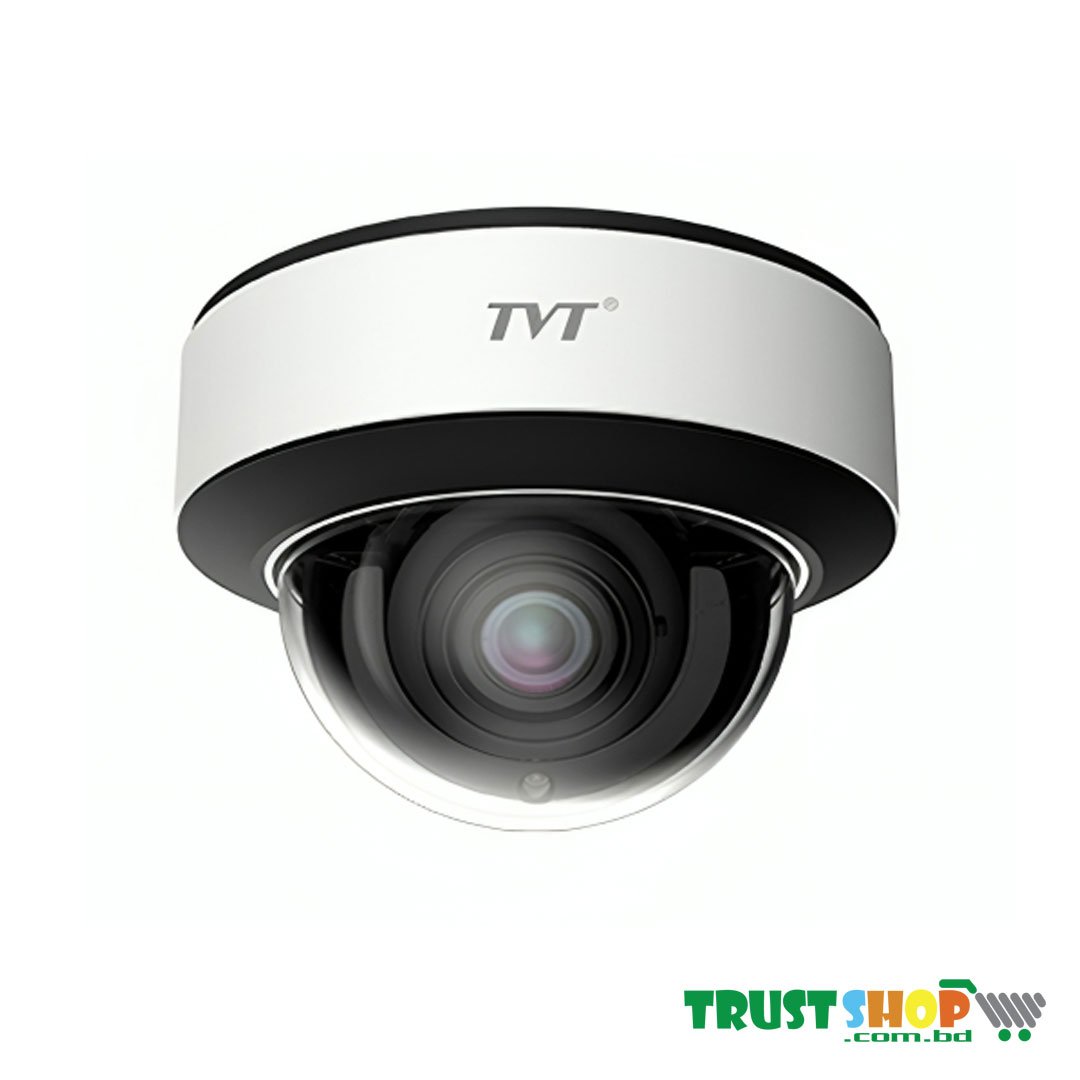

TVT TD-9523E3 2MP IR Starlight Dome IP Camera
|
| Camera |
| Image Sensor |
1 / 2.8″ CMOS |
| Image Size |
1920 × 1080 |
| Electronic Shutter |
1 s ~ 1 / 100000 s |
| Iris Type |
DC Iris |
| Min. Illumination |
0.0038 lux@F1.4,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens |
2.8~12mm@F1.4, motorized |
| Field of View |
Horizontal: 103°~32° ; Vertical: 70.5°~18.3° ; Diagonal:110.6°~36.4° |
| Lens Mount |
Φ14 |
| Day& Night |
ICR |
| Wide Dynamic Range |
120dB TVT TD-9523E3 2MP IR Starlight Dome IP Camera |
| BLC |
Yes |
| HLC |
Yes |
| Defog |
Yes TVT TD-9523E3 2MP IR Starlight Dome IP Camera |
| Digital NR |
3D DNR |
| Angle Adjustment |
Pan: 0°~345°; Tilt:0°~77°; Rotation: 0°~345° |
| Image |
| Video Compression |
Main stream: H.265+ / H.265 / H.264+ / H.264 |
| Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard |
Baseline Profile/Main Profile/High Profile |
| Resolution |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream |
60Hz:1080P/720P(1 ~ 30fps ); 50Hz:1080P / 720P( 1 ~ 25fps ) |
| Sub Stream |
60Hz:720P/D1/CIF (1~30fps); |
| 50Hz:720P/D1/CIF (1~25fps) |
| Third Stream |
60Hz:D1/CIF /480 × 240 (1~30fps); 50Hz:D1/CIF/480 × 240 (1~25fps) |
| Bit Rate |
64 Kbps ~ 6 Mbps |
| Bit Rate Type |
VBR / CBR |
| Audio Compression |
G711A / U TVT TD-9523E3 2MP IR Starlight Dome IP Camera |
| Image Settings |
ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser |
| ROI |
Each ROI to be configured separately |
| Interfaces |
| Network |
RJ45 |
| Video Output |
CVBS (BNC × 1) TD-9523E3 |
| Audio |
1CH audio input; 1CH audio output; Built-in MIC× 1 |
| Storage |
Built-in micro SD card slot; up to 256GB |
| Reset |
Yes |
| Alarm |
1CH alarm input; 1CH alarm output |
| Intelligent Analytics (Smart Events) |
| Perimeter Protection |
Line crossing, intrusion (human/motor vehicle/non-motor vehicle classification) |
| Target Counting |
Line crossing human/motor vehicle/non-motor vehicle counting |
| Exception Detection |
Scene change, video blur and video color cast detection |
| Face Detection |
Face detection and face capture |
| Functions |
| Remote Monitoring |
Web browsing,CMS remote control TD-9523E3 |
| Online Connection |
Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol |
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP, PPPoE, DDNS, SMTP,SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol |
ONVIF |
| Storage |
Network remote storage; micro SD card storage |
| Smart Alarm |
Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection |
| General Function |
Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
| PoE |
Yes , IEEE802.3af |
| IR Distance |
30 ~ 50 m |
| Ingress Protection |
IP67&IK10 TVT TD-9523E3 2MP IR Starlight Dome IP Camera |
| Others |
| Power Supply |
AC24V/DC12V/PoE |
| Power Consumption |
< 10.5W TD-9523E3 |
| Operating Environment |
– 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) |
| Dimensions ( mm ) |
Φ 141 × 100.2 |
| Weight ( net ) |
Approx.0.89KG |
| Installation |
Ceiling mounting(wall mounting available with the junction box and bracket) |
| Certificate |
CE, FCC TVT TD-9523E3 2MP IR Starlight Dome IP Camera |
| Environmental Protection |
Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
