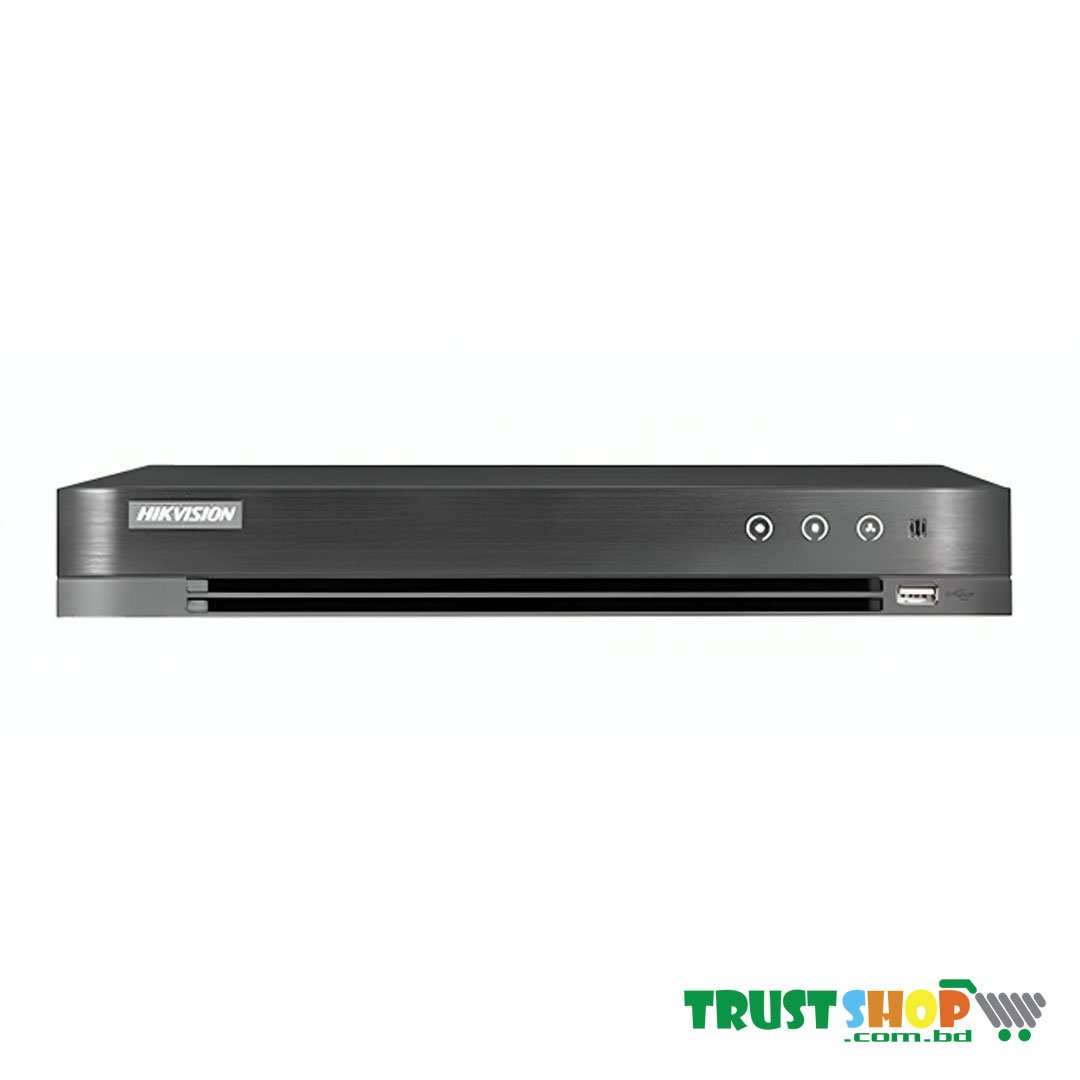

Specification of the Hikvision DS-7204HQHI-K1 4-channel DVR Encoding ability up to 1080p
| Feature | Specification |
|---|---|
| Brand | Hikvision |
| Model | Hikvision DS-7204HQHI-K1 |
| Type | TURBO HD DVR |
| Video Input Channel (BNC) | 4-ch |
| Video Compression/Format | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Output (VGA) | 1 Channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Output (HDMI) | 1 Channel, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz |
| Video Recording Res. | Variable based on 1080p Lite mode (see details in original text) |
| Max. Video Recording Res. | 1080p |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| IP Video Input | 4-ch (up to 12-ch) |
| Analog & HD-TVI Video Input | 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| Audio Input Channel (RCA) | 1-ch, RCA (2.0 Vp-p, 1 K) |
| Audio Compression | G.711u |
| Audio Output Channel | 1-ch, RCA (Linear, 1 K) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 K) (using the first audio input) |
| Audio Bit Rate | 64 Kbps |
| Frame Rate | Variable based on stream type and resolution (see details in original text) |
| Stream Type | Video, Video & Audio |
| Dual Stream Support | Yes |
| Synchronous Playback | 4-channel |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Number HDD Interface (SATA) | 1 SATA |
| Max HDD Support (GB,TB) | Up to 10 TB capacity for each disk |
| Max. Storage Support | 10TB |
| Network Interface (RJ45) | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Serial Interface | RS-485 (half-duplex) |
| USB Port | 2 x USB 2.0 |
| Remote Connections | 32 |
| CVBS Input | PAL/NTSC |
| Incoming Bandwidth | 24/48/96 Mbps |
| Outgoing Bandwidth | 24/48/96 Mbps |
| Power Supply | 12 VDC |
| Approx. Power Consumption | 6W (without HDD) |
| Dimensions | 315 x 242 x 45mm |
| Weight (Kg) | 1.16 kg |
| Feature | Supports H.265 Pro+/H.265 Pro/H.265 compression, HDTVI/AHD/CVI/CVBS/IP video input |
| Others | CVBS output: 1-ch, BNC (1.0 Vp-p, 75), Resolution: PAL: 704 x 576, NTSC: 704 x 480 |
| Warranty Details | 1 year |
| Shipping Cost |
|
| Shop Location | Dhaka, Dhaka, Bangladesh |
