ONV-H1064PLS 6-port PoE switch
FEATURE
10/100Mbps access, Dual RJ45 port uplink
◇ Provides 4*10/100Base-TX RJ45 ports and 2*10/100Base-TX RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
◇ All ports support non-blocking wire-speed forwarding for smoother transmission.
◇ Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control.
Intelligent PoE power supply
◇ 4*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.
◇ Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Innovative function
◇ Long distance mode: When opening, the speed of port 1-4 is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair line can be broken, and the transmission distance can reach 250 meters; on the other hand, It can solve the problem of poor transmission caused by line aging.
◇ Video monitoring mode: When opening, Port 1-4 is isolated from each other but communicate with port 5-6 to prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
Stable and reliable, easy to use
◇ CCC,CE, FCC, RoHS.
◇ Plug and play, no configuration, simple and convenient.
◇ Low power consumption, galvanized steel casing, no fan.
◇ The user-friendly panel, it can show the device status through the LED indicator of PWR, PoE.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
TECHNICAL SPECIFICATION
| Model | ONV-H1064PLS | ONV-H1108PLS |
| Interface Characteristics | ||
| Fixed Port |
4*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
8*10/100Base-TX PoE ports (Data/Power) 2*10/100Base-TX uplink RJ45 ports (Data) |
| Ethernet Port | Port 1-6/1-10 can support 10/100Base-TX auto-detection, full/half-duplex MDI/MDI-X auto-sensing | |
| Functional Switch | 1*(100m: default 100 meters transmission, 250m: Extend and VLAN transmission mode) | |
| Note: when the switch state changes, it must be restarted before the PoE switch function can take effect | ||
| Twisted Pair Transmission |
10BASE-TX: Cat5 or later UTP(≤250 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) |
|
| Chip Parameter | ||
| Network Management Type | Unmanaged | |
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3x |
|
| Forwarding Mode | Store and Forward(Full Wire Speed) | |
| Switching Capacity | 1.6Gbps (Non-blocking) | 2Gbps (Non-blocking) |
|
Forwarding Rate@64byte |
0.98Mpps | 1.488Mpps |
| MAC | 1K | 2K |
| Buffer Memory | 768K | 1.25M |
| Jumbo Frame | 1536byte | |
| LED Indicator |
Power: PWR (Green), Network: Link(Yellow), PoE: PoE (Green) Functional switch: EXTEND (Green) |
|
| PoE & Power Supply | ||
| PoE Port | Port 1-4 | Port 1-8 |
| Power Supply Pin | 1/2(+) 3/6(-) | |
| Max Power Per Port | 30W, IEEE802.3af/at | |
| Total PWR / Input Voltage | 65W/ (AC100-240V) | 100W/ (AC100-240V) |
| Power Consumption | Standby<3W, Full load<65W | Standby<5W, Full load<100W |

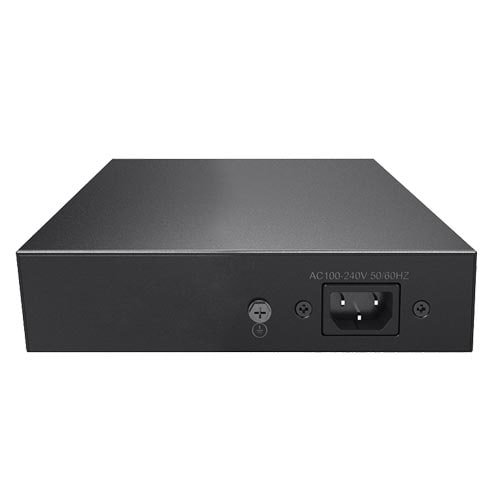

| Power Supply | Built-in power supply, AC100~240V 50-60Hz 1.0A | Built-in power supply, AC100~240V 50-60Hz 2.0A |
| Physical Parameter | ||
| Heat Dissipation | No Fan natural cooling | |
| Operation TEMP/ Humidity | -20~+55°C, 5%~90% RH Non condensing | |
| Storage TEMP/ Humidity | -40~+75°C, 5%~95% RH Non condensing | |
| Dimension (L*W*H) | 142*115*40mm | 195*130*40mm |
| Net /Gross Weight | <0.6kg / <1.0kg | <0.8kg / <1.2kg |
| Installation | Desktop, Wall-mounted | |
| Certification & Warranty | ||
| Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
| Warranty | 1 year, lifelong maintenance. | |
ONV-H1064PLS 6-port PoE switch
The ONV-H1064PLS is a 10/100Mbps unmanaged PoE switch independently developed by ONV. it has 4*10/100M PoE ports and 2*10/100M uplink RJ45 ports, Port 1-4 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W, and the maximum POE output power is 65W.
What is the price of ONV-H1064PLS 6-port PoE switch in Bangladesh?
The latest price of ONV-H1064PLS 6-port PoE switch in Bangladesh is 4,500৳. You can buy the ONV-H1064PLS 6-port PoE switch at best price from our website or visit our office.
