ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch
The ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch is a full gigabit 10-port managed Ethernet switch that is perfect for small and medium-sized businesses and organizations. It provides a powerful and versatile way to manage your network and improve its performance.
FEATURE
Gigabit access, Gigabit SFP fiber port uplink
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
◇ Support Gigabit Ethernet port and Gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Security
◇ Support port isolation.
◇ Support port broadcast storm suppression.
◇ Support IP+MAC+port+VLAN quadruple flexible combination binding function.
◇ Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Strong business processing capability
◇ IEEE802.1Q VLAN, flexible VLAN division.
◇ Support STP/ RSTP/ MSTP production tree protocol, eliminate layer 2 loops and realize link backup.
◇ Support IGMP Snooping V1/V2/V3 to meet the multi-terminal high-definition video surveillance and video conference access requirements.
◇ Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
◇ Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
◇ Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ The user-friendly panel can show the device status through the LED indicator of PWR, Link .
◇ Self-developed power supply, high redundancy design, providing a long term and stable power output.
◇ Low power consumption, galvanized steel casing, and excellent heat dissipation ensure the stable operation of the switch.
Easy O&M management
◇ HTTPS, SSLV3, and SSHV1/V2.
◇ RMON, system log, LLDP, and port traffic statistics.
◇ Web management, CLI (Console, Telnet), SNMP (V1/V2/V3).
◇ CPU monitoring, memory monitoring, Ping test, and cable diagnose.
TECHNICAL SPECIFICATION
| Model | ONV-H3010FM |
| Interface Characteristics | |
| Fixed Port |
1*RS232 console port(115200,N,8,1) 8*10/100/1000Base-T RJ45 ports (Data) 2*100/1000Base-X uplink SFP ports (Data) |
| Ethernet Port | Port 1-8 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meters) 100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
| SFP Slot Port | Gigabit SFP optical fiber interface, default no include optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi mode: 850nm 0-550m, Single-mode: 1310nm 0-40km, 1550nm 0-120km. |
| Chip Parameter | |
| Network Management Type | L2+ |
| Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 20Gbps |
|
Forwarding Rate@64byte |
14.88Mpps |
| CPU(Hz) | 500M |
| DRAM | 1G |
| Flash | 128M |
| MAC | 8K |
| Buffer Memory | 4.1M |
| Jumbo Frame | 10K |
| LED Indicator |
Power: PWR(Green), System: SYS (Green) Network: Link (Yellow), Fiber port: L/A(Green) |
| Reset Switch | Yes, One-button factory reset |
| Power Supply | |
| Total PWR / Input Voltage | 30W (AC100-240V) |
| Power Consumption | Standby<6W, Full load<12W |

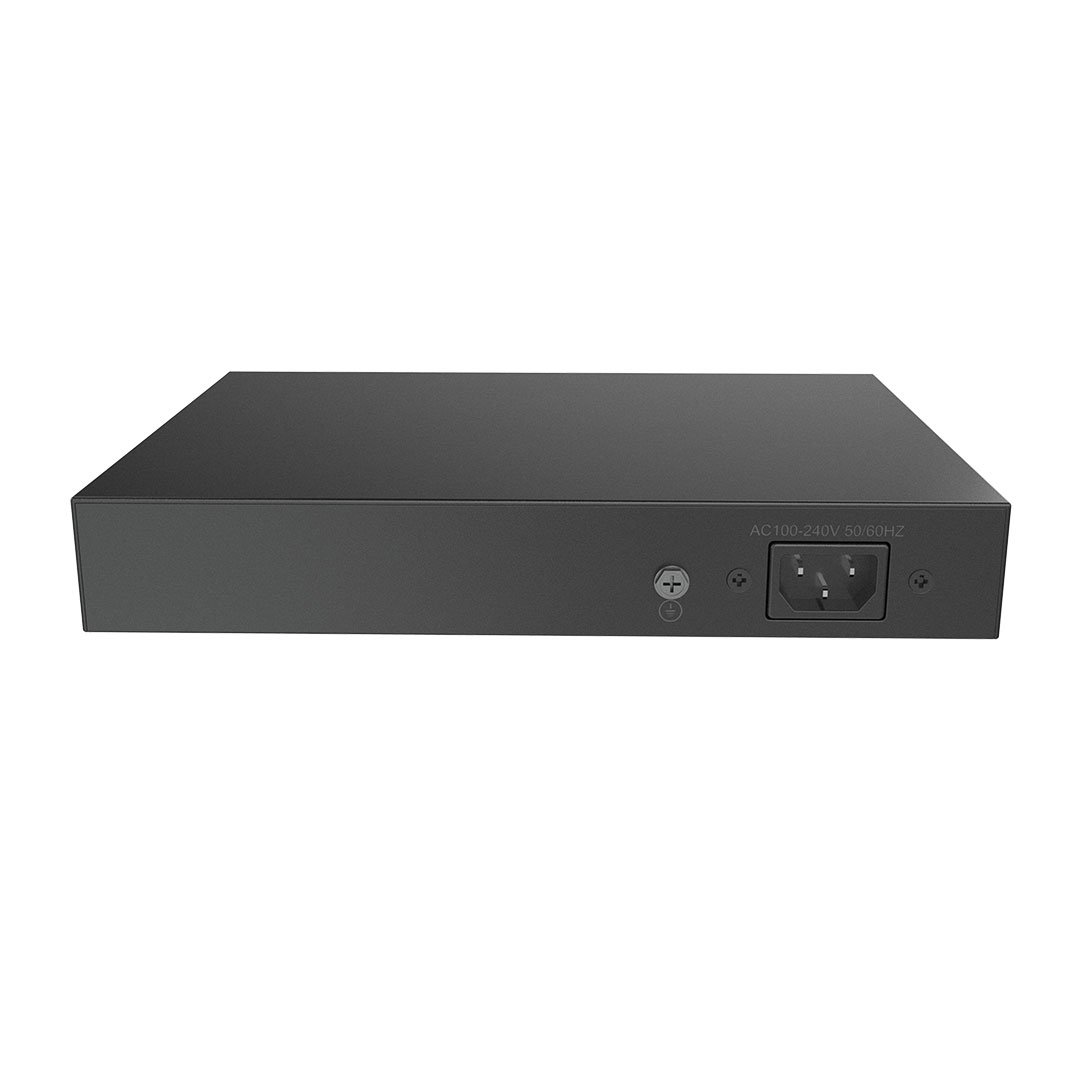

| Power Supply | Built-in power supply, AC100~240V 50-60Hz 0.56A |
| Physical Parameter | |
| Operation TEMP / Humidity | -20°C~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40°C~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 270*181*44.5mm |
| Net /Gross Weight | <1.2kg / <1.7kg |
| Installation | Desktop, 19 inch 1U cabinet |
| Certification & Warranty | |
| Lightning Protection | Lightning protection: 6KV 8/20us, Protection level: IP30 |
| Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS |
| Warranty | 3 years, lifelong maintenance. |
| Network Management Features | |
| Interface |
IEEE802.3X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed Speed limit of message flow in the access port. The min particle size is 64Kbps. |
| Layer 3 Features |
L2+ Network management, IPV4 management Static route, Default route @ 128 pcs, APR @ 1024 pcs |
| VLAN |
VLAN based on the protocol, 4K VLAN based on port IEEE802.1q, Port configuration of Access, Trunk, Hybrid |
| Port Aggregation |
LACP, Static aggregation Max 5 aggregation groups and 8 ports per group. |
| Spanning Tree | STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
| Multicast |
Fast log out, Multicast VLAN IGMP Snooping v1/v2, Max 1024 multicast groups |
| Port Mirroring | Bidirectional data mirroring based on port |
| QoS |
Diff-Serv QoS, Priority Mark/ Remark Queue scheduling algorithm (SP, WRR, SP+WRR) Flow-based rate limiting, Flow-based packet filtering 8*output queues of each port, 802.1p/ DSCP priority mapping |
| ACL |
Port-based Issuing ACL,ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
| Security |
Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection AAA & RADIUS, MAC learning limit, IP source protection Mac black holes, IEEE802.1X & MAC address authentication IP-MAC-VLAN-Port binding, ARP inspection, Anti-DoS attack |
| DHCP | DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay |
| Management |
CPU instant utilization status view Console/ AUX Modem/ Telnet/ SSH2.0 One-key recovery, Cable Diagnose, LLDP, CLI ONV NMS platform cluster management (LLDP+SNMP) Web Management (HTTPS), NTP, System work log, Ping Test Download & Management on FTP, TFTP, Xmodem, SFTP, SNMP V1/V2/V3 |
| System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch
The ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch is a full gigabit L2+ managed Ethernet fiber switch independently developed by ONV. It has 8*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding. The ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch has the L2+ full network management, supports IPV4 management, static route full line rate forwarding, complete security protection mechanism, ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch Supports multiple network redundancy protocols STP/ RSTP/ MSTP (<50ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications.
What is the price of the ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch in Bangladesh in 2023?
The latest price of the ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch 14500 BDT. You can buy this ONV H3010FM Full Gigabit 10 Port Managed Ethernet Switch us at the best price. You can either buy it through our website or directly visit our office.
