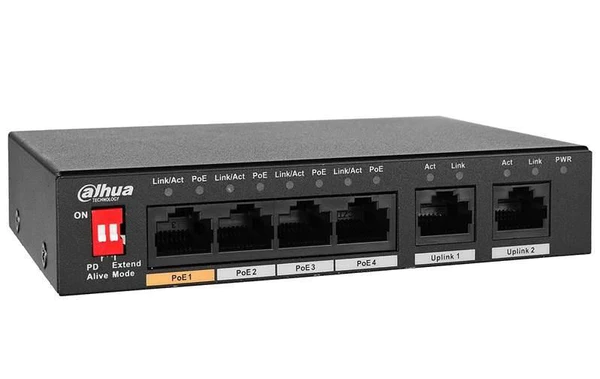

Dahua PFS3005-4ET-60 5-Port Unmanaged Desktop Switch

DH-PFS3005-4ET-60

Ethernet Port

Port 1-4: 4 × RJ-45 10/100M (PoE)

Port 5: 1 × RJ-45 10/100M (uplink)

PoE Power Consumption

Port 1 ≤ 60 W (Hi-PoE)

port 2-4 ≤ 30 W

total ≤ 60 W

Power Consumption

Idling: 0.8 W

Full load: 60 W

Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

PoE

PoE Protocol

IEEE802.3af/ IEEE802.3at/ Hi-PoE

Power Supply Pin

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance

250 m long distance PoE transmission

PoE Power Management

Yes

PoE Watchdog

Yes

Performance

Switching Capacity

1.8 Gbps

Packet Forwarding Rate

744 Kbps

Packet Buffer Memory

1 Mbit

Flow Control

Enable by default

Working Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Application Humidity

5%– 95% (RH)

General

Power Input

48 V – 57 V DC

Lighting Protection

Common mode: 4 kV

Differential mode: 2 kV

ESD Protection

Air discharge: 8 kV

Contact discharge: 6 kV

Wall-mount Installation

Yes

Anti-theft Lock Hole

Yes

Weight

0.30 kg (0.64 lb)

Dimension

130 mm × 85 mm × 26 mm (5.12″ × 3.35″ × 1.02″)
